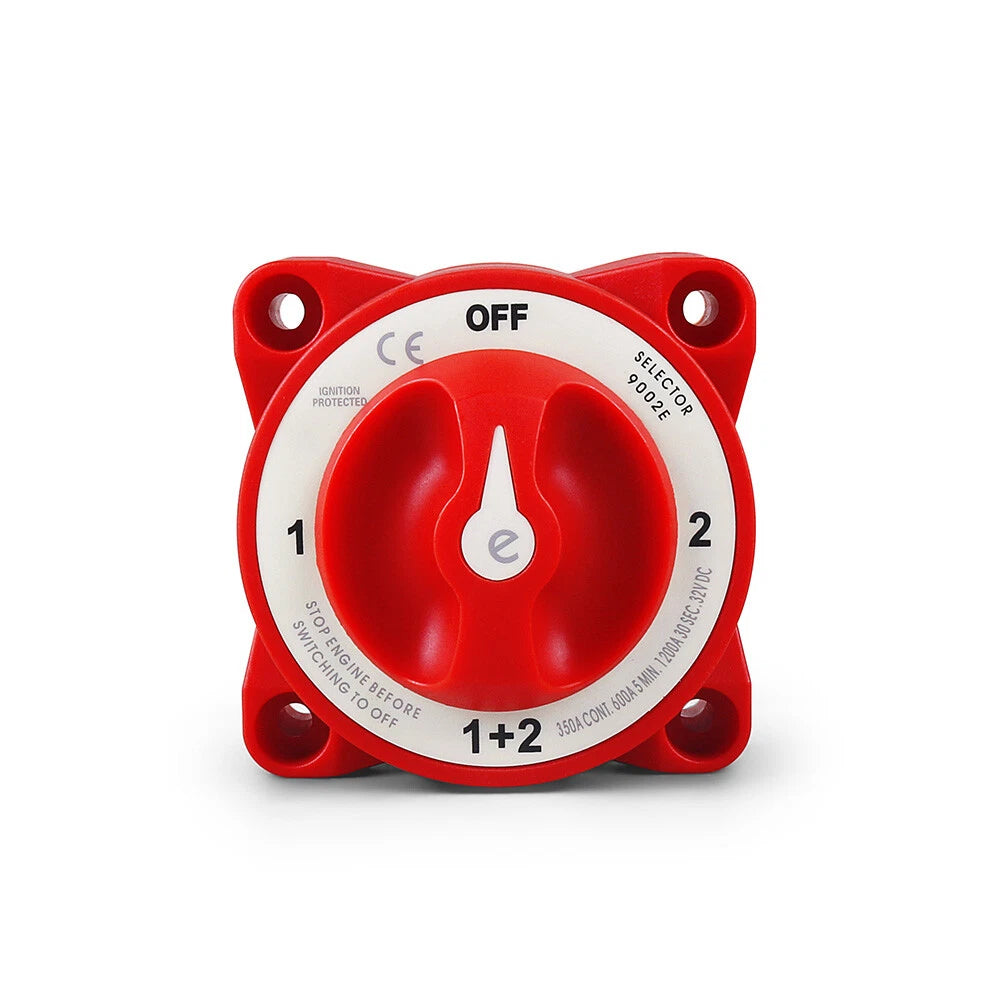

4-Position Dual Battery Selector Switch β 350A, 32V DC

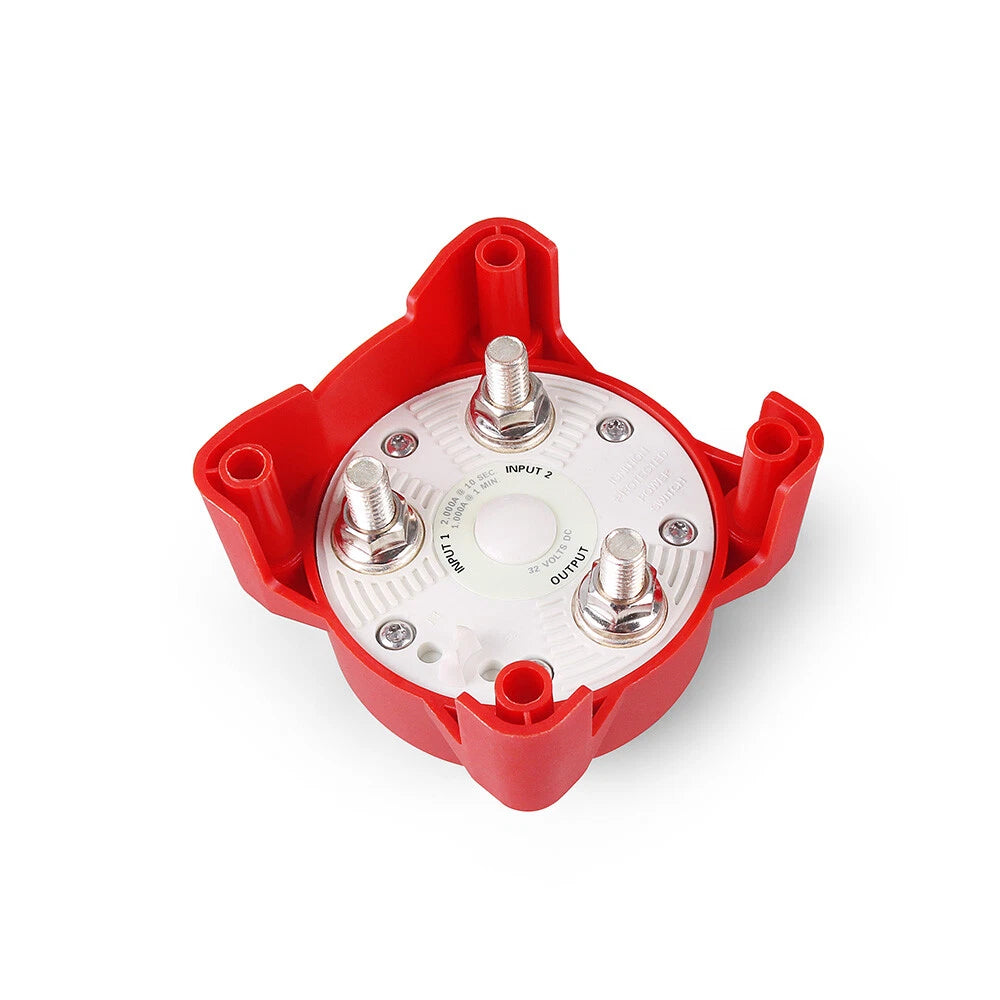

Manage two battery banks with this heavy-duty, four-position battery selector switch. Features include battery combining and alternator field disconnect. Tinned copper terminal studs and clearance for 4/0 AWG cables support high-current installations.
| Specification |
Details |
| Switch type |
4-position selector |
| Battery inputs |
2 |
| Battery combine |
Yes |
| Alternator field disconnect |
Yes |
| Maximum voltage |
32V DC |
| Continuous current rating |
350A |
| Intermittent current rating |
600A for 5 minutes |
| Cranking current rating |
1,200A for 30 seconds |
| Cable size required to meet ratings |
4/0 AWG (120 mmΒ²) |
| Cable clearance |
1.10 in (27.94 mm) |
| Mounting holes |
Accept 1/4 in (M6) screws |
| Terminal stud material |
Tinned copper |
| Terminal stud torque |
140 in-lb (15.82 NΒ·m) |
