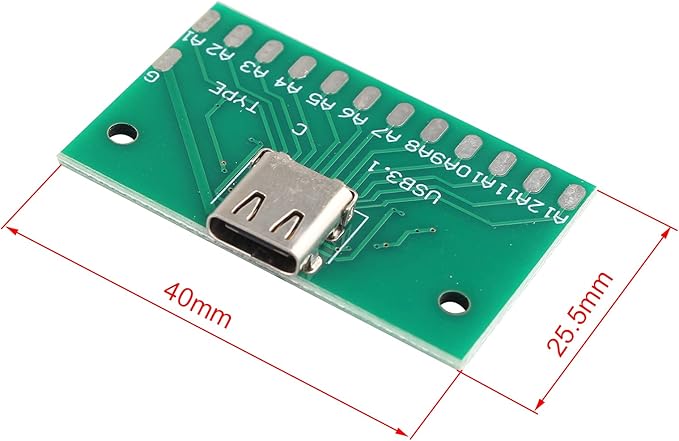

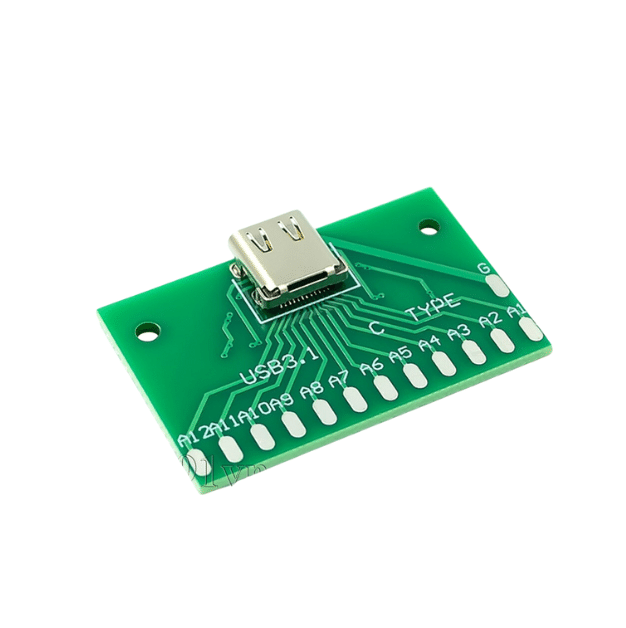

The 24-Pin USB 3.1 Type-C Breakout Test Board is a versatile development and prototyping module designed to give easy access to all USB-C connector signals.
This board features clearly labeled solder pads, allowing you to manually solder wires and integrate USB Type-C functionality into custom electronics projects. Ideal for testing, debugging, power delivery experiments, and embedded system development.
USB Type-C supports charging, high-speed data transfer, and display output, making this breakout board perfect for advanced DIY and engineering applications.
βοΈ Technical Specifications
-
Model: 24-Pin USB 3.1 Type-C Test Board
-
Connector Type: USB Type-C Female
-
Pins: Full 24-pin breakout
-
Mounting: Two screw holes for secure installation
-
Interface Access: Power, data, configuration, and control pins
-
Application: Prototyping & testing
π Key Features
-
Full access to USB-C signal lines
-
Clearly exposed solder pads for custom wiring
-
Compact and durable PCB design
-
Mounting holes for stable installation
-
Supports charging, data, and display functions (depending on implementation)
π Common Applications
-
USB-C power delivery experiments
-
Fast charging projects
-
Embedded systems development
-
DIY electronics & prototyping
-
Hardware debugging and testing
-
STEM and engineering education
π‘ Why Use a USB-C Breakout Board?
USB Type-C connectors are compact and powerful but difficult to wire directly.
This breakout board simplifies development by exposing all pins in an accessible format, saving time and reducing design complexity.
β οΈ Important Notes
-
Advanced knowledge of USB-C pinout is recommended.
-
Incorrect wiring may damage connected devices.
-
Power delivery functionality depends on external circuitry and configuration.
