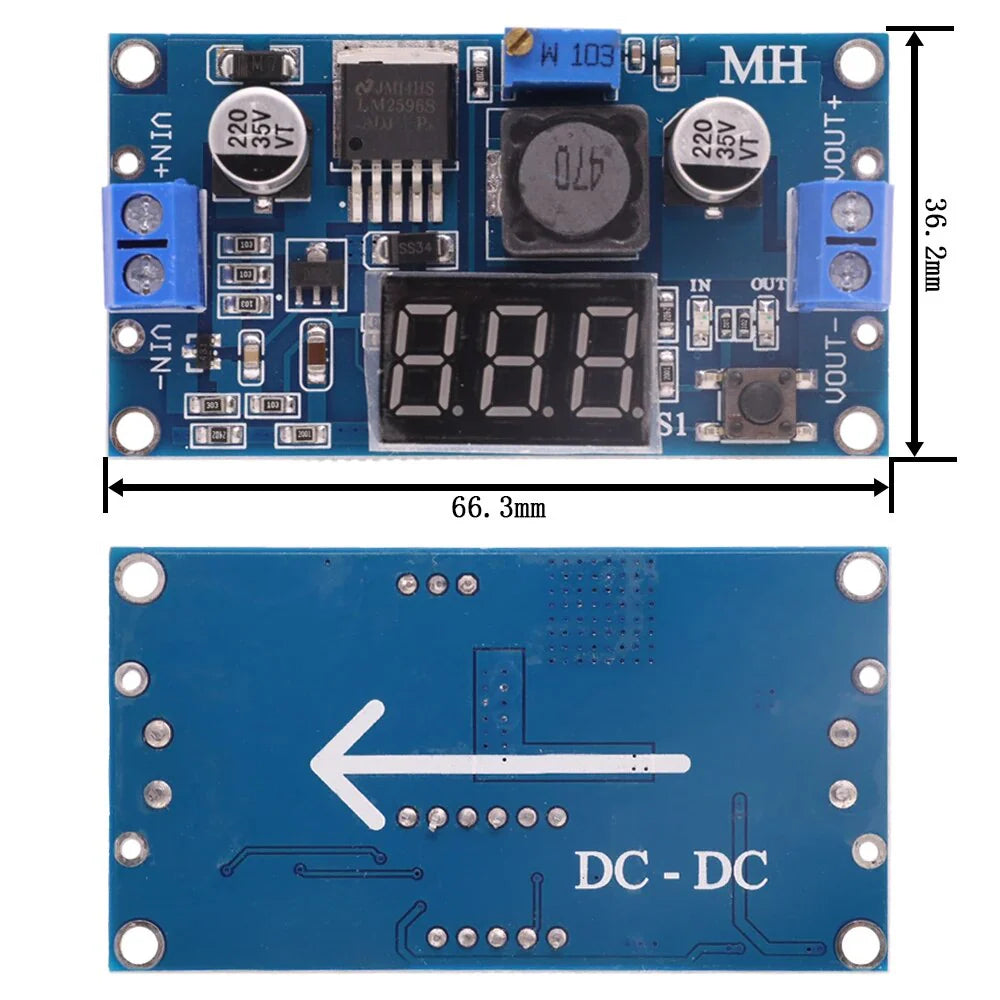

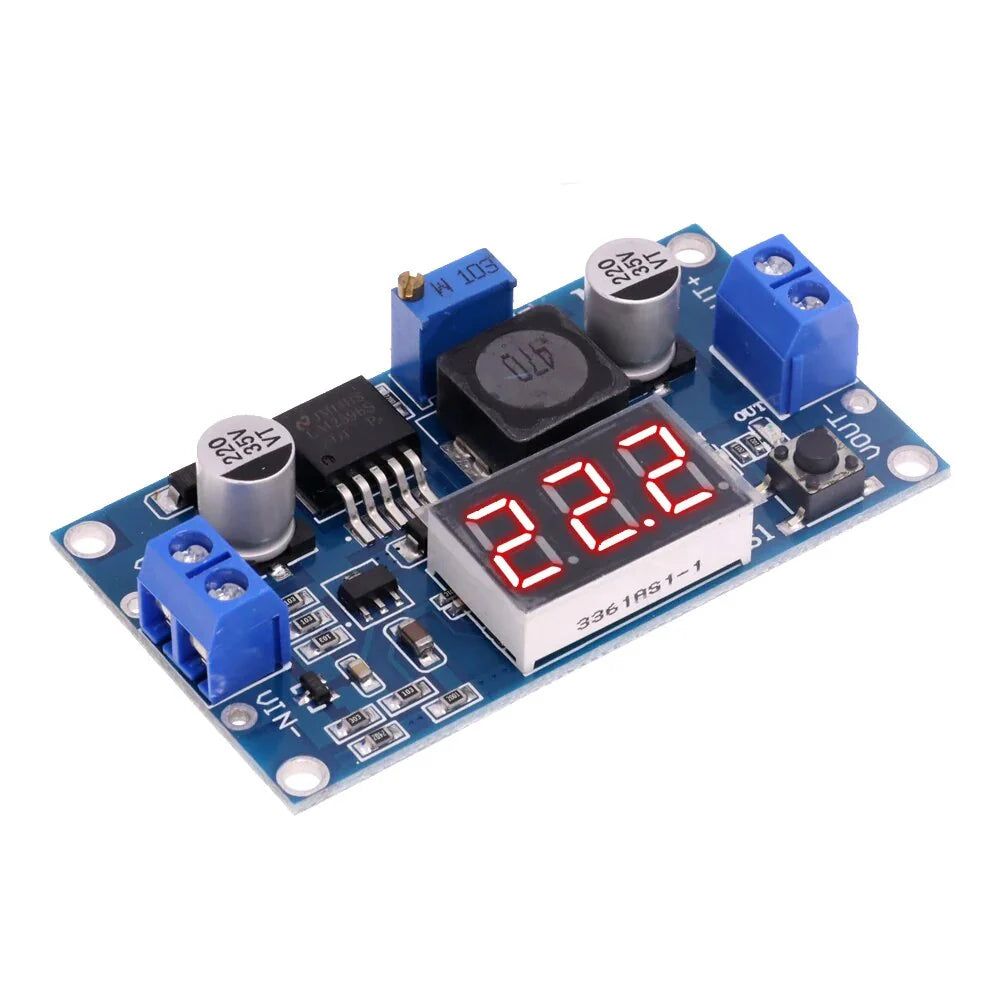

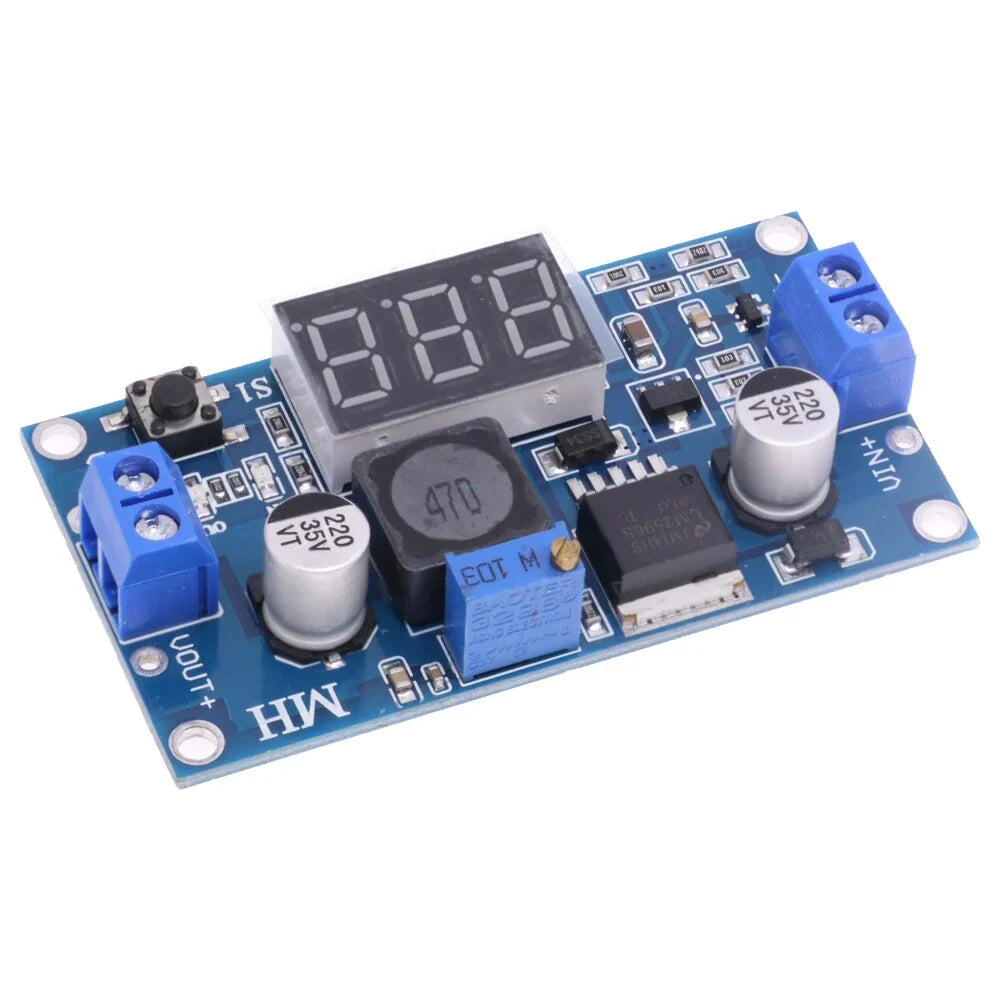

The LM2596S DC-DC Step-Down Power Supply Module is a compact and efficient power regulator designed to convert higher DC voltages to a stable, adjustable lower output with high efficiency. Featuring an SMD indicator LED, this module makes monitoring operation status simple and reliable.
🔌 Key Features
-
Input Voltage: Wide DC input range suitable for automotive, battery, and power adapter use
-
Adjustable Output Voltage: Easily fine-tune the output with an onboard potentiometer
-
High Efficiency: Low heat generation and efficient step-down conversion
-
SMD LED Indicator: Visual indicator for power status
-
Compact Size: Easy to integrate into projects and enclosures
-
Reliable Performance: Stable output with overload, short-circuit protection (dependent on board design)
⚙️ Technical Specifications
-
-
Input Voltage: 3V – 40V DC
-
Output Voltage: 1.5V – 35V DC (Adjustable)
-
Output Current:
-
Rated Current: 2A
-
Maximum Current: 3A (with proper heat dissipation)
-
-
Regulation Type: Step-Down (Buck Converter)
-
Control IC: M2596S
-
📌 Applications
-
Powering microcontroller projects
-
LED strip and lighting power supply
-
Battery-powered devices regulation
-
Robotics and automation systems
-
DIY electronics projects requiring stable DC power
📦 Package Includes
-
1 × LM2596S DC-DC Step-Down Power Supply Module (with SMD LED Indicator)
A practical and efficient solution to convert and regulate DC power for a wide range of electronics applications.
