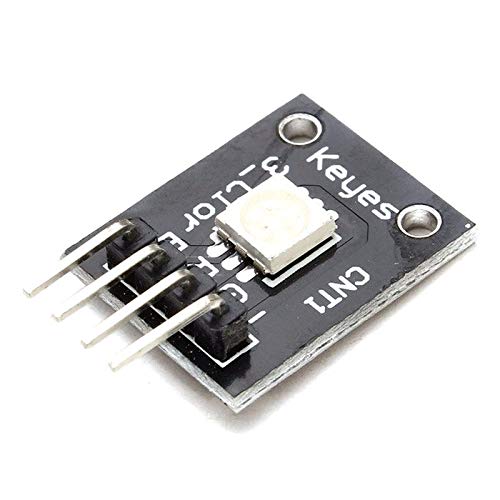

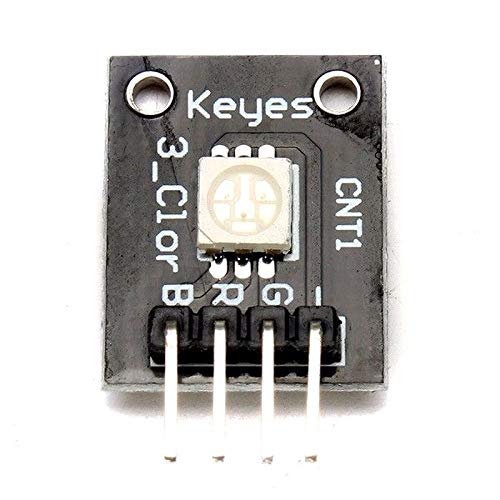

The KY-009 RGB LED Module is a compact 4-pin breakout board featuring a 5050 SMD RGB LED. It allows you to generate a wide range of colors by controlling the Red, Green, and Blue channels individually through a microcontroller.
Designed for easy integration with Arduino, STM32, Raspberry Pi, and other development platforms, this module is ideal for learning projects, status indicators, decorative lighting, and color-mixing experiments.
Key Features
-
5050 SMD RGB LED
-
4-pin interface (Common, R, G, B)
-
Operates at 3V DC
-
Compact PCB design
-
Right-angle 4-pin header
-
Standard 0.100" (2.54mm) pin spacing
-
Mounting hole for secure installation

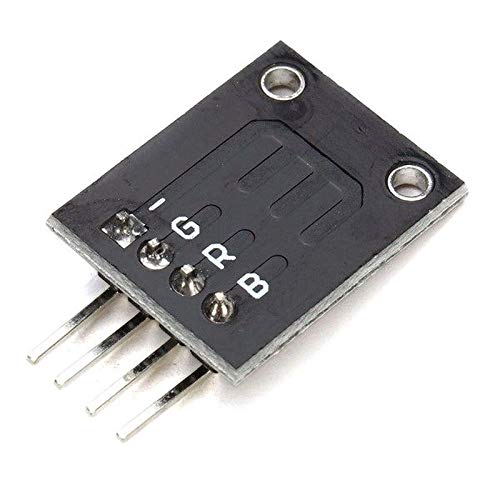

Pin Configuration
-
– (Common)
-
R (Red)
-
G (Green)
-
B (Blue)
Each color channel can be controlled individually using PWM signals to create various color combinations.
Technical Specifications
-
Model: KY-009
-
LED Type: 5050 RGB SMD
-
Operating Voltage: 3V DC
-
Total Pins: 4
-
Header Type: 4-Pin Right Angle
-
Pin Spacing: 0.100" (2.54mm)
-
PCB Dimensions: 0.59" × 0.75"
-
Mounting Hole Diameter: 0.090"
-
Brand: Unbranded (xinda / RQG variants available)
Applications
The KY-009 RGB LED module offers a simple and affordable way to experiment with multicolor LED control in embedded systems and microcontroller-based projects.
