The P6100 Oscilloscope Probe is a versatile passive scope probe designed for accurate waveform measurement up to 100 MHz bandwidth. With switchable 1X/10X attenuation, high input impedance, and built-in compensation adjustment, it delivers stable, reliable readings for electronics testing, troubleshooting, and development. Compatible with most BNC-input oscilloscopes — ideal for labs, workshops, hobbyists, and students.
Key Features
-
📈 100 MHz Bandwidth – Captures mid-frequency signals clearly when used in 10X mode.
-

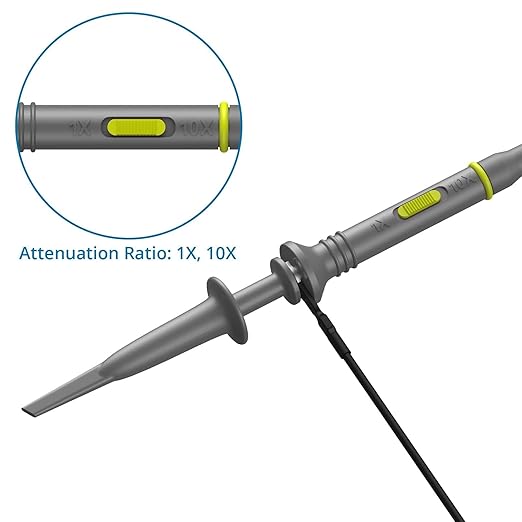

🔄 1X/10X Attenuation Switch – Choose 1X for low-voltage precision or 10X for high-voltage measurements.
-
⚡ High Input Impedance – 1 MΩ in 1X, 10 MΩ in 10X reduces circuit loading effects.
-
🧲 Adjustable Compensation – Trimmer allows probe calibration to match your oscilloscope for accurate waveform fidelity.
-
🪶 Lightweight & Flexible – ~1.2 m cable with standard BNC connector for ease of use in crowded test setups.
-
⚙️ Wide Voltage Rating – Up to ~200 V (1X) and ~600 V (10X) DC+AC peak, suitable for general-purpose work.
Technical Specs
-
Model: P6100 passive oscilloscope probe
-
Bandwidth: DC–6 MHz (1X), DC–100 MHz (10X)
-
Attenuation: 1X / 10X switchable
-
Input Impedance: 1 MΩ / 10 MΩ
-
Input Capacitance: 70–120 pF (1X); 13–22 pF (10X)
-
Rise Time: <3.5 ns (10X)
-
Compensation Range: ~10–35 pF
-
Cable Length: ~120 cm
-
Max. Voltage: ~200 V (1X) / ~600 V (10X) DC+AC peak
-
Operating Temp.: 0–50 °C
Includes
-

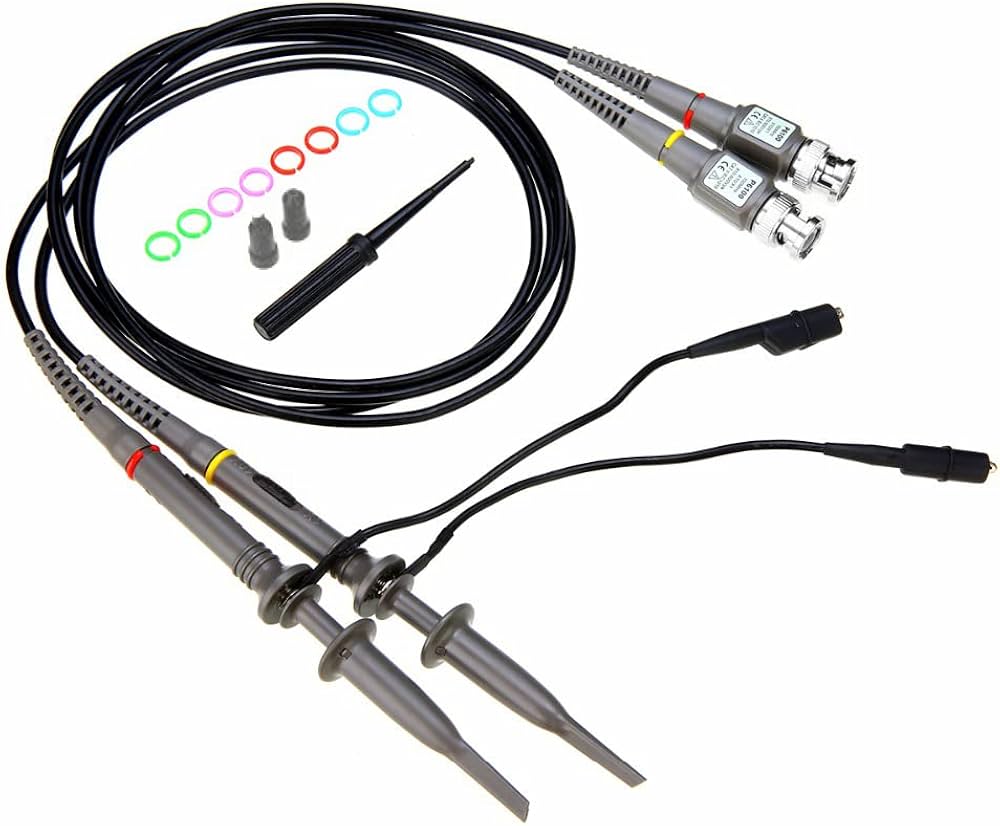

1 × P6100 Oscilloscope Probe
-
Ground lead with alligator clip
-
Compensation adjustment tool
-
Color-coded marker rings
Applications
✔ Electronics testing & debugging
✔ Analog/digital signal measurement
✔ Hobby projects, repair, and prototype evaluation
✔ Educational lab experiment guidance
Note
Proper compensation adjustment ensures accurate waveform reproduction across frequency ranges. Always connect the probe to the scope before probing circuits.
