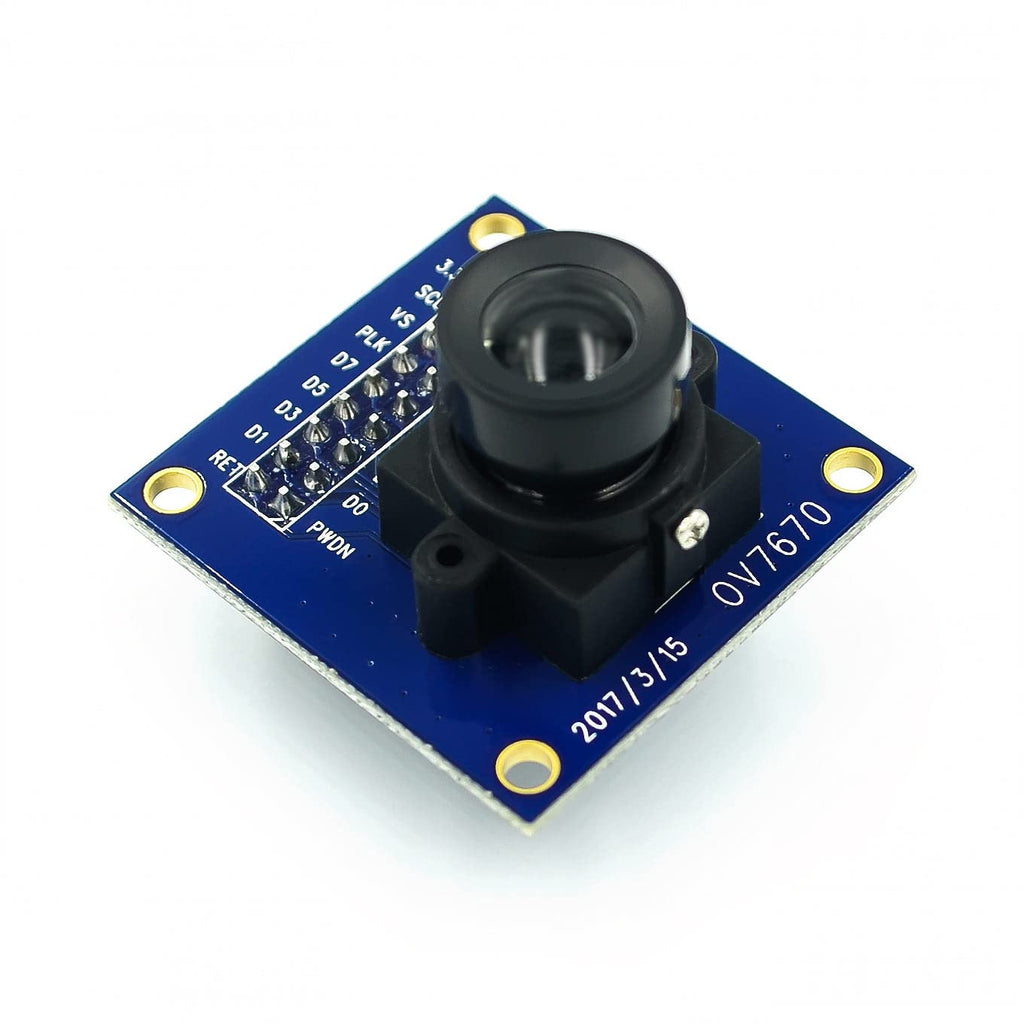

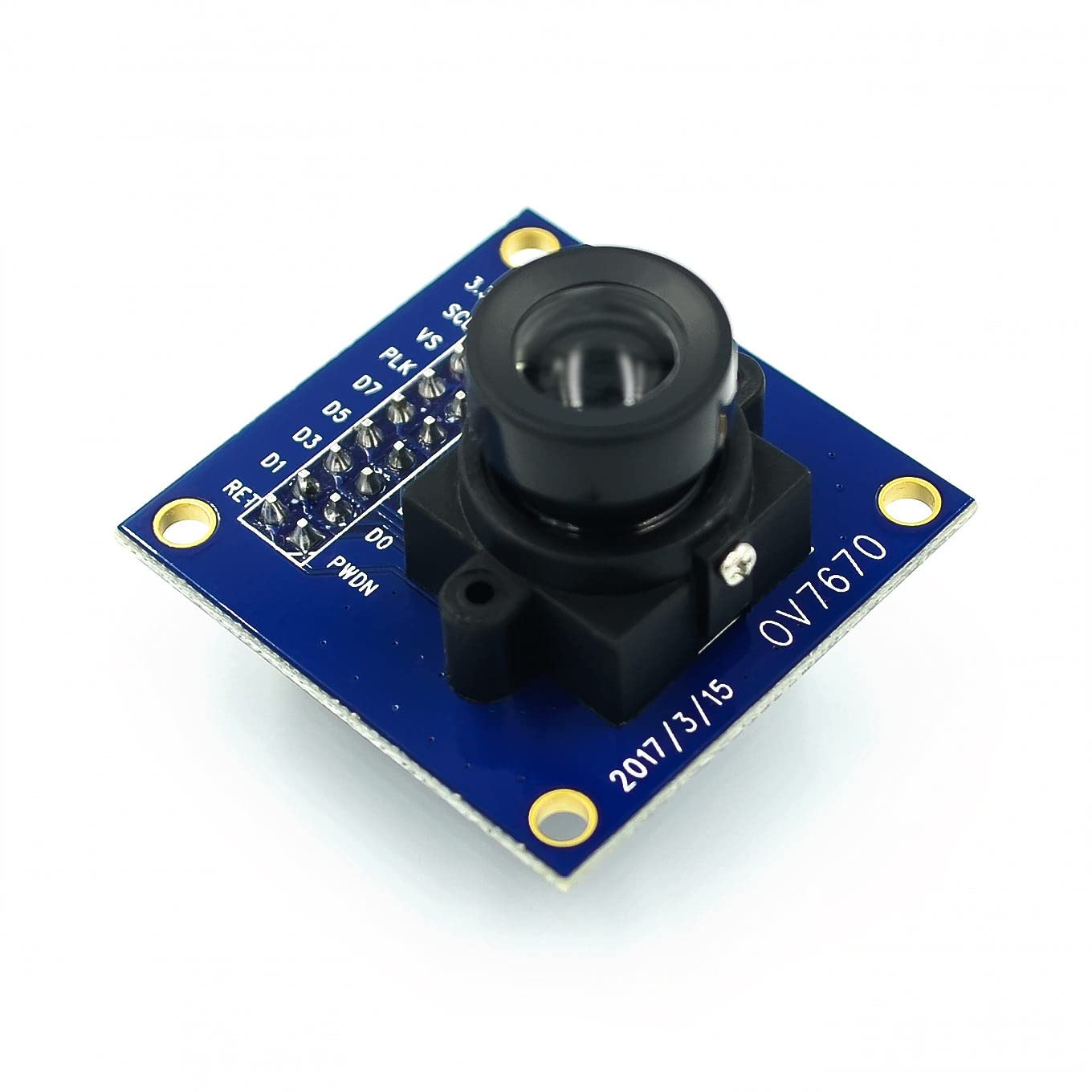

Bring basic computer vision to your electronics project with the OV7670 VGA Camera Module. This compact, low-cost camera sensor captures 640×480 images in real time and is ideal for use with Arduino, ESP32, STM32, and FPGA boards. Great for robotics, surveillance prototypes, and image processing education.
🔧 Key Features:
-
VGA Resolution (640×480)
Captures still images and video at up to 30 frames per second.
-
Compact and Lightweight
Designed for easy integration into embedded and DIY systems.
-
8-bit Parallel Output
Outputs raw image data for complete control and processing.
-
Built-in Image Processing
Automatic exposure, white balance, and noise reduction handled on-chip.
-
Low Power Operation
Operates from a 3.3V supply and consumes minimal power—perfect for mobile or battery-powered projects.
⚙️ Specifications:
-
Resolution: VGA 640×480
-
Frame Rate: Up to 30 fps
-
Power Supply: 3.3V
-
Interface: 8-bit parallel data + SCCB (I2C-like control)
-
Output Format: RGB, YUV, or raw RGB
-
Lens: Fixed focus
-
Pixel Size: 3.6 µm × 3.6 µm
-
Operating Temp: -30°C to 70°C
-
Module Size: ~35 mm × 35 mm
✅ Applications:
-
DIY surveillance and motion detection systems
-
Embedded image capture for Arduino and ESP32
-
Robotics and basic machine vision
-
Educational use in microcontroller projects
