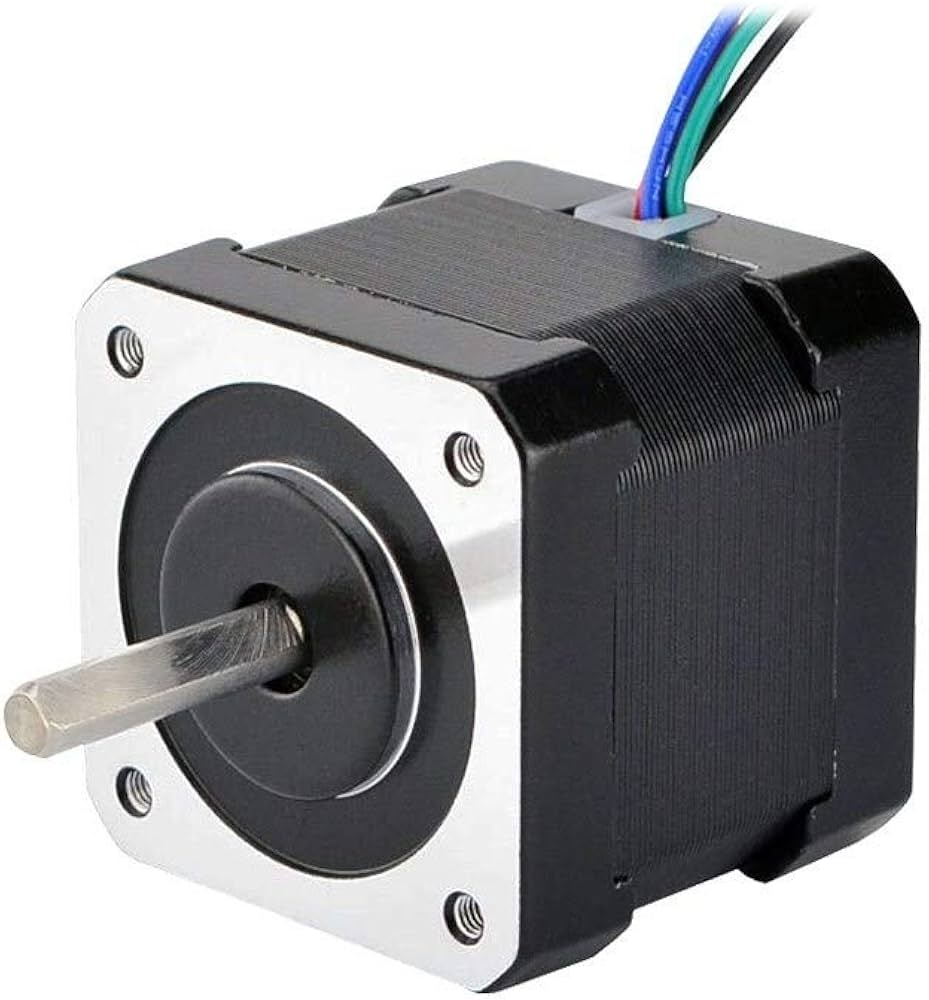

NEMA 17 Stepper Motor
This NEMA 17 bipolar stepper motor is one of the most widely used motors in its class, offering a precise 1.8° step angle and a compact 42 × 42 × 40 mm frame. Designed for reliability and consistent performance, it delivers a strong holding torque of 45Ncm while operating at 2A per phase.
Equipped with a 4-wire configuration and a 1-meter cable with connector, this motor is easy to integrate into a variety of motion control systems. It is an excellent choice for 3D printers, CNC machines, and robotics projects where accuracy and torque are essential.
🔧 Key Features
- ⚙️ 1.8° step angle for precise positioning
- 💪 High torque (45Ncm / 63.74 oz·in)
- 🔌 4-wire bipolar configuration with pre-attached cable
- 📏 Compact NEMA 17 (42×42mm) frame size
- ⚡ 2A per phase current rating
- 🧩 Standard 2.54mm pitch connector for easy connection
📊 Specifications
-
Model: 17HS16-2004S1
-
Motor Type: Bipolar stepper motor
-
Step Angle: 1.8°
-
Holding Torque: 45Ncm (63.74 oz·in)
-
Rated Current: 2.0A per phase
-
Phase Resistance: ~1.3Ω
-
Inductance: 2.6mH ±20%
-
Insulation Class: B (130°C)
-
Frame Size: 42 × 42 mm
-
Body Length: 40 mm
-
Shaft Diameter: 5 mm
-
Shaft Length: 23 mm
-
Cable Length: 1 meter
-
Weight: ~310g
🧠 Applications
- 🖨️ 3D printers (RepRap, Prusa, Mendel, Rostock)
- 🔩 CNC machines
- 🤖 Robotics and automation
- 🎯 Precision positioning systems
⭐ Why Choose This Motor?
This NEMA 17 stepper motor is a proven, industry-standard solution that balances torque, precision, and size—making it ideal for both hobbyists and professional builds.
