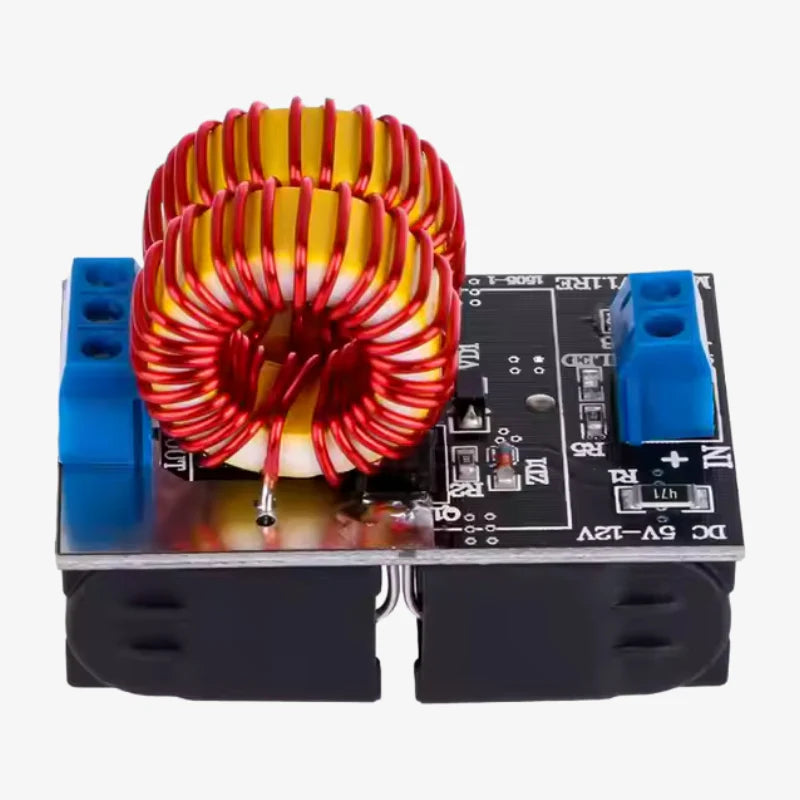

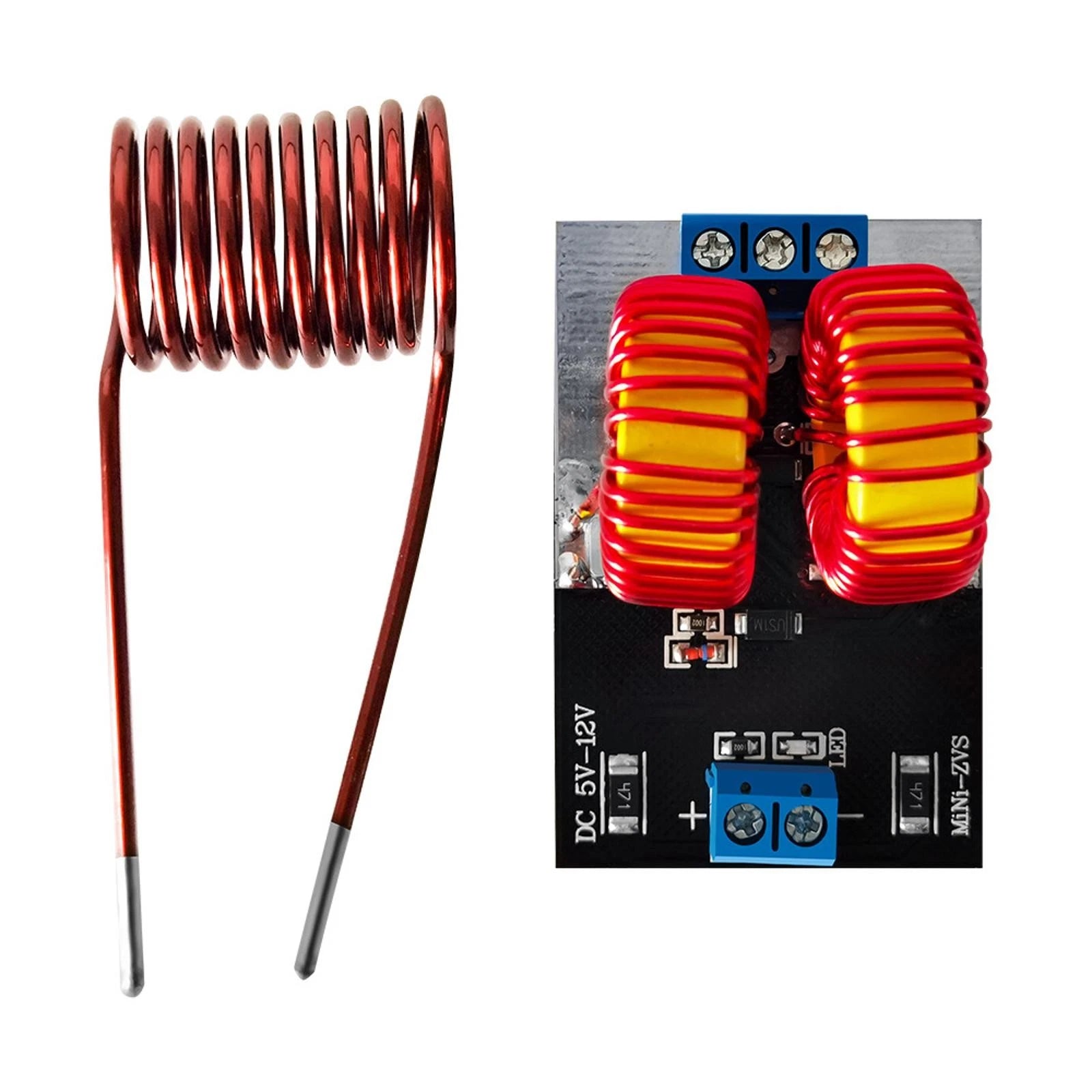

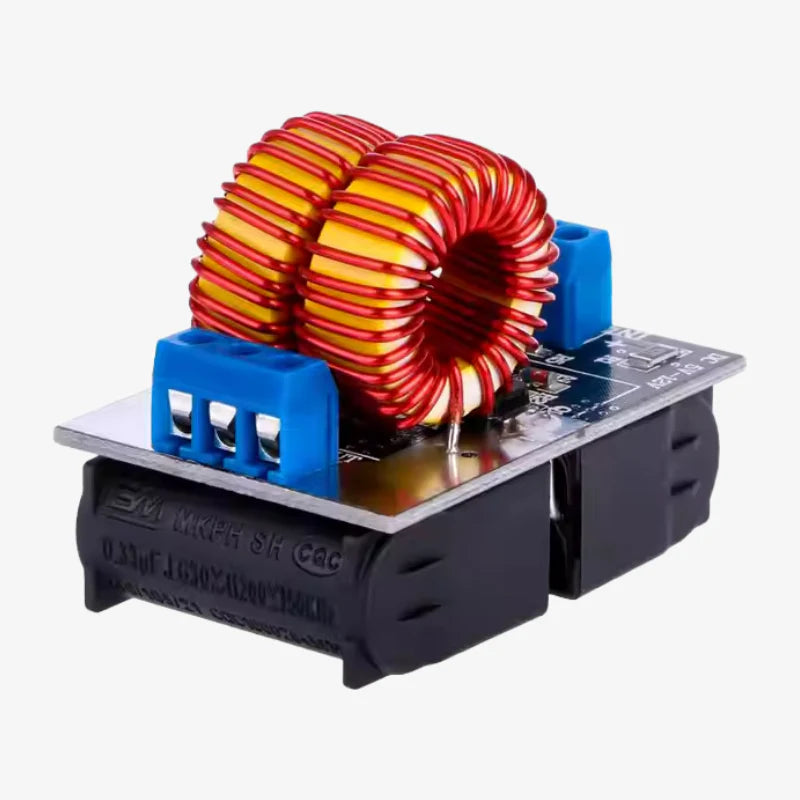

Mini ZVS Induction Heating Board – Flyback Driver Heater DIY Module (5–12V, 120W)
Compact and powerful induction heating module based on Zero Voltage Switching (ZVS) technology. Designed for efficient high-frequency heating, this board is ideal for DIY projects such as metal heating, small-scale melting, and ignition coil experiments.
✔ Key Features
✔ ZVS (Zero Voltage Switching) for high efficiency and low heat loss
✔ High-frequency induction heating for rapid heating
✔ Compact and easy-to-use design
✔ Includes pre-wound copper heating coil
✔ Operates on low voltage (safe for DIY use)
✔ Can drive ignition coils and flyback transformers
✔ Plug-and-play operation
🔹 Specifications
🔹 Input Voltage: DC 5V – 12V
🔹 Maximum Power: Up to 120W
🔹 Output Type: High-frequency induction heating
🔹 Coil Type: Copper induction coil
🔹 Board Type: ZVS driver module
🔹 Size: Compact PCB design
➤ Applications
➤ Heating small metal parts (bolts, screws, tools)
➤ Induction heating experiments
➤ Ignition coil / flyback driver projects
➤ DIY mini heater or cooker projects
➤ Electronics learning and prototyping
⚠ Notes (IMPORTANT)
⚠ Requires high current power supply (not USB)
⚠ Can generate high temperatures and high frequency fields
⚠ Do NOT touch coil while operating (burn risk)
⚠ Ensure proper cooling for extended use
⚠ Not a finished product – for DIY/experimental use only
📦 Package Includes
✔ 1 × Mini ZVS Induction Heating Board

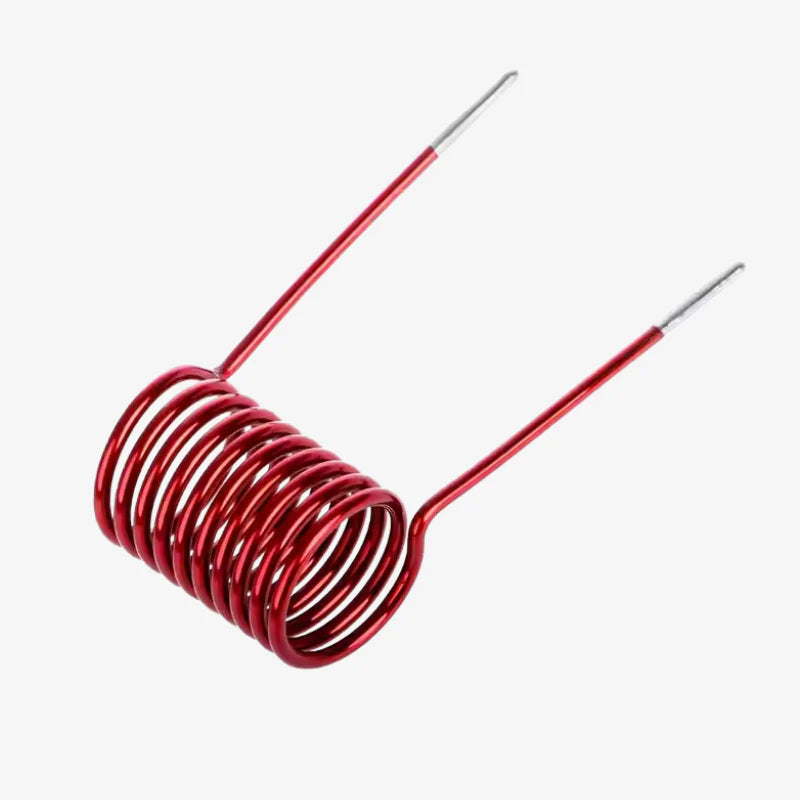

✔ 1 × Copper Heating Coil
