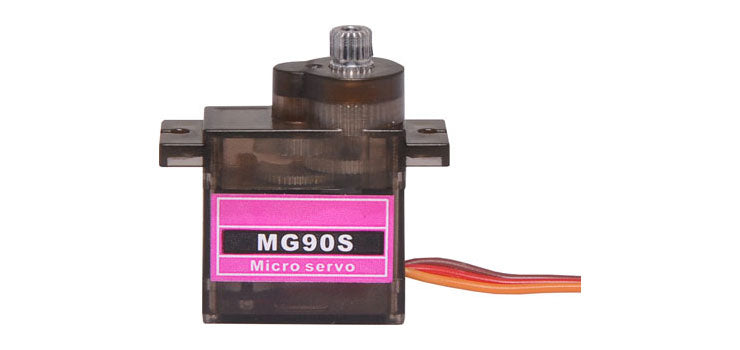

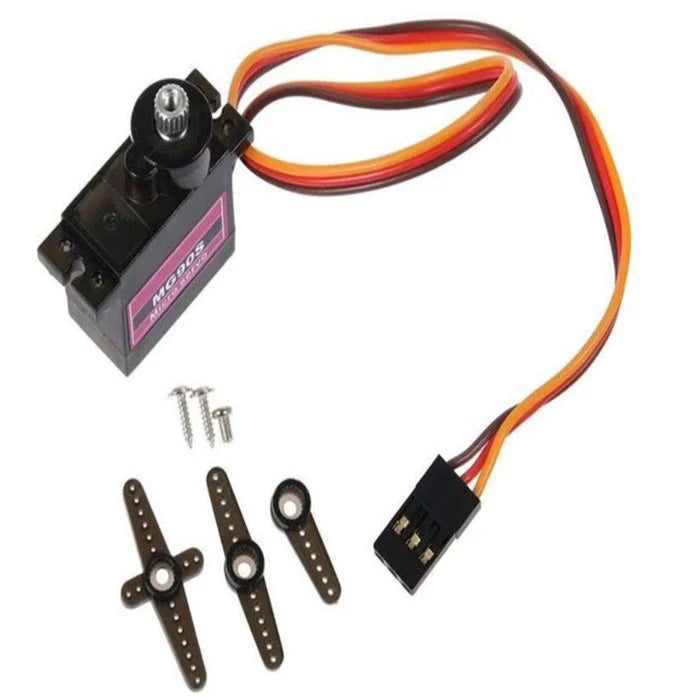

The MG90S Mini Servo Motor is a compact and powerful micro servo featuring durable metal gears, allowing it to handle higher loads and provide greater reliability compared to standard plastic gear servos like the SG90.
With a 180° rotation range and fast operating speed, this servo is ideal for robotics, RC models, automation projects, and STEM applications requiring precise motion control.
⚙️ Technical Specifications
-
Model: MG90S
-
Gear Type: Metal Gears
-
Rotation Range: 180°
-
Operating Voltage: 4.8V – 6V DC
-
Operating Speed:
-
0.10 sec/60° @ 4.8V
-
0.08 sec/60° @ 6V
-
Stall Torque:
-
1.8 kg·cm @ 4.8V
-
2.2 kg·cm @ 6V
-
Control Signal: PWM (Pulse Width Modulation)
-
Weight: ~13g
-
Connector: 3-pin (GND, VCC, Signal)
🔧 Key Features
-
Durable metal gear construction
-
Higher torque than SG90
-
Fast response time
-
Compact and lightweight
-
Standard 3-pin servo interface
-
Compatible with Arduino, ESP32, Raspberry Pi (with PWM control)
🤖 Applications
-
Robotics arms and joints
-
RC airplanes, cars, and boats
-
Pan-tilt camera systems
-
Smart automation mechanisms
-
STEM and educational robotics projects
💡 MG90S vs SG90
Unlike the SG90 (plastic gears), the MG90S uses metal gears, making it more durable and capable of handling heavier loads without premature wear.
⚠️ Important Notes
-
Use a stable external power supply when driving multiple servos.
-
Do not power directly from a microcontroller 5V pin.
-
Avoid mechanical overloading to prevent motor damage.
