The Mega 2560 Prototype Screw Terminal Shield is a convenient expansion board designed specifically for the Arduino Mega 2560. It allows easy connection of external wires using screw terminals — no soldering required.

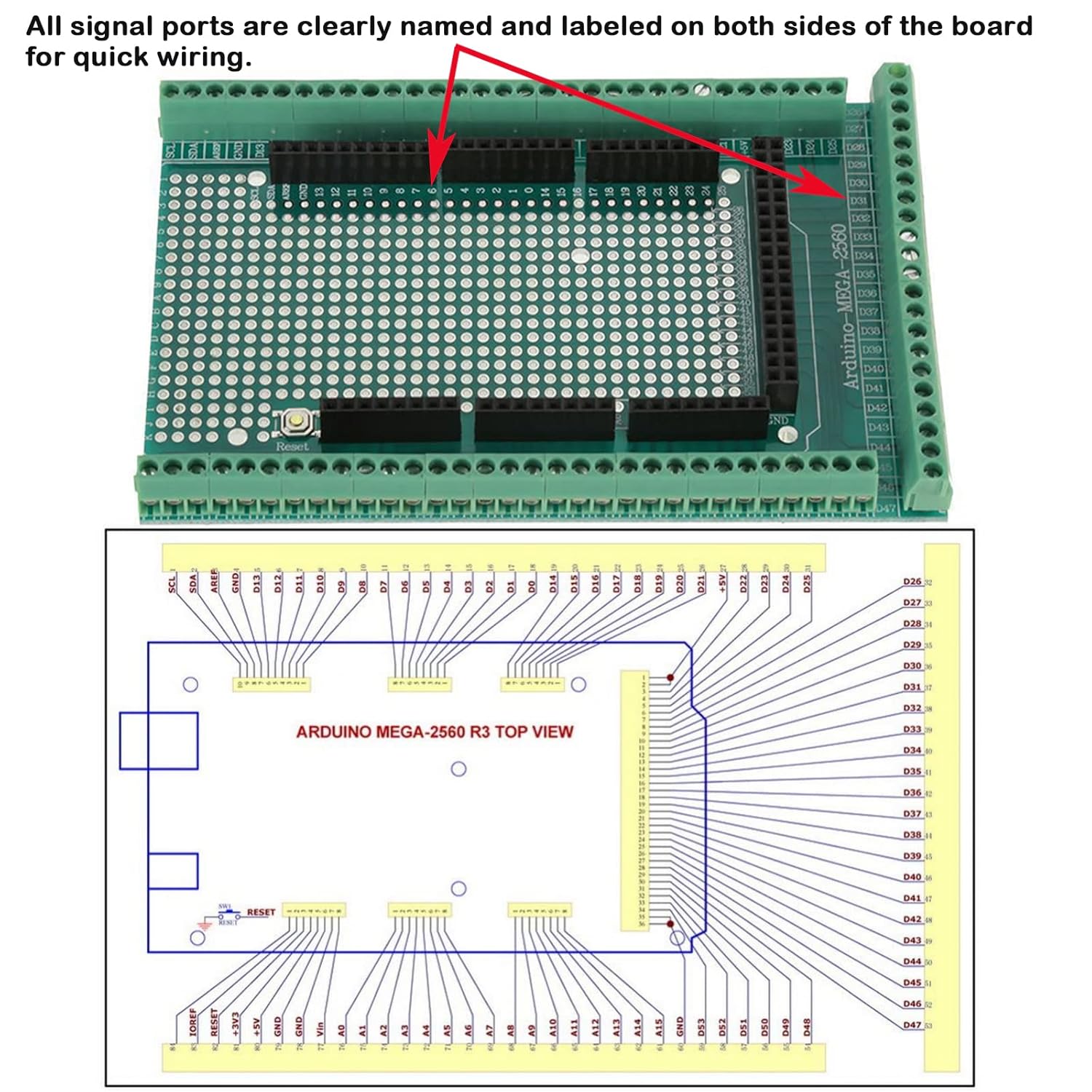

This pre-soldered shield is ideal for prototyping, industrial control projects, educational labs, and installations where secure and organized wiring is essential. All signal ports are clearly labeled on both sides of the board for fast and error-free connections.
⚙️ Technical Specifications
Compatibility:
Terminal Blocks:
Female Header Sockets:
-
Pitch: 2.54mm (0.1")
-
Pin Length: 15mm (0.59")
-
1 × Single Row 10-pin
-
5 × Single Row 8-pin
-
1 × Dual Row 18-pin
🔧 Key Features
-
No soldering required (pre-soldered design)
-
Secure screw terminal connections
-
Clearly labeled signal ports on both sides
-
Clean and organized wiring layout
-
Durable PCB construction
-
Ideal for rapid prototyping and testing
🚀 Applications
-
Industrial control systems
-
Robotics projects
-
Automation systems
-
STEM education labs
-
Prototyping and testing circuits
-
Permanent installations requiring stable wiring
💡 Why Use a Screw Terminal Shield?
Direct wiring to Arduino headers can be unstable in permanent setups.
This shield provides a secure, professional solution by converting all Mega 2560 pins into screw terminal connections for easy installation and maintenance.
⚠️ Important Notes
-
Compatible only with Arduino Mega 2560 form factor.
-
Arduino board not included.
-
Ensure proper wire stripping length for secure terminal connection.
