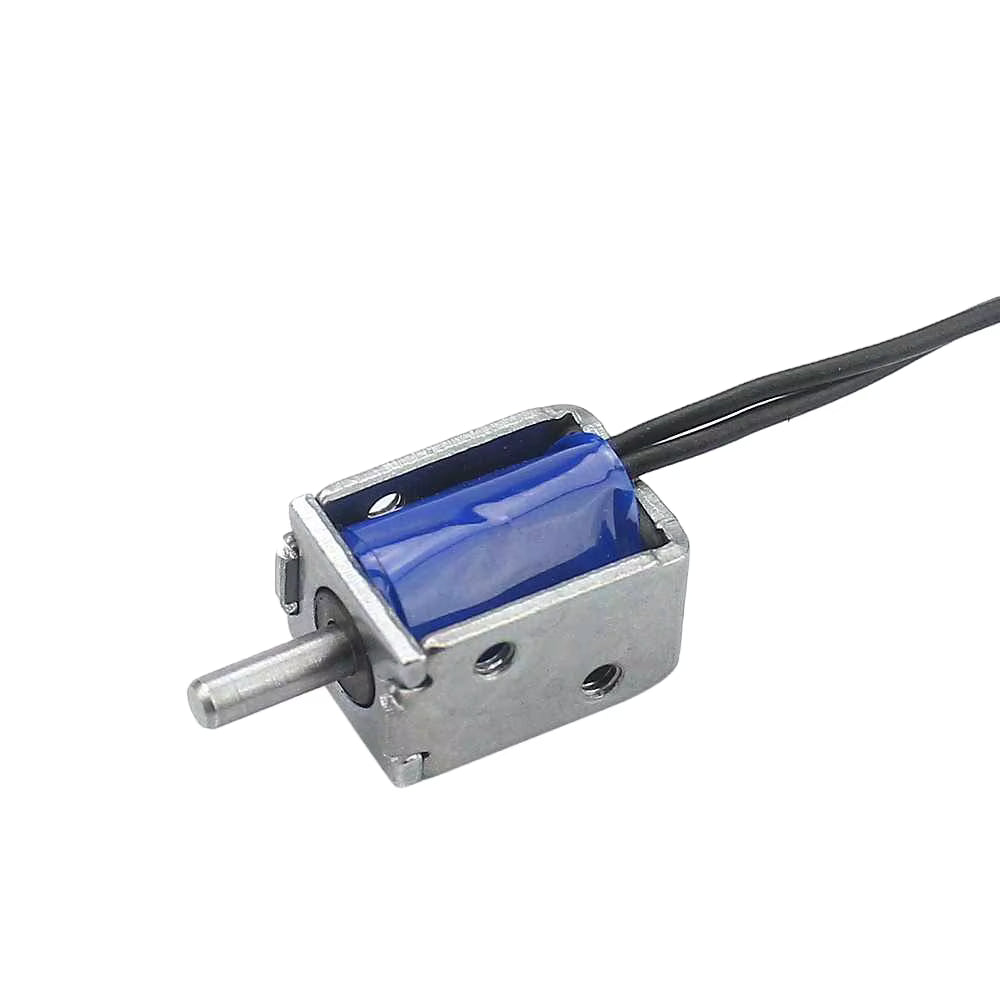

Secure your electronics and small enclosures with the compact LY‑011B electromagnetic lock. Designed for ease of integration and reliable operation, this lock offers clean installation and silent locking power for access control projects.
🔒 Key Features
-
Compact Size: Measures approximately 46 × 12 × 12 mm—ideal for small doors, boxes, drawers, or DIY security systems.
-
Reliable Magnetic Locking: Built-in electromagnet generates strong holding force (~1 kg) when powered with 5 V DC.
-
Quiet Operation: Virtually silent engagement and disengagement—perfect for stealthy locking installations.
-
Simple Wiring: Easily connects to 5 V power sources and standard controllers, supports relay or MOSFET-driven control.
-
Flat Design: Low-profile housing can be mounted inside hidden panels or compact assemblies.
⚙️ Specifications
-
Operating Voltage: 5 V DC
-
Holding Force: Approximately 1 kg (2.2 lb)
-
Current Draw: ~150 mA
-
Dimensions: ~46 mm × 12 mm × 12 mm
-
Material: Metal housing with soldered power leads
-
Operating Temperature: −10 °C to +60 °C
-
Ideal For: Cabinets, small enclosure security, vending machines, access control kits
✅ Applications
-
Small drawer, cabinet, or box locking
-
Electronic access control systems or IoT-enabled security
-
Robotics or automation projects requiring basic locking
-
Educational or hobbyist electronics requiring controlled latching mechanisms
