LEFT Z AXIS PROFILE

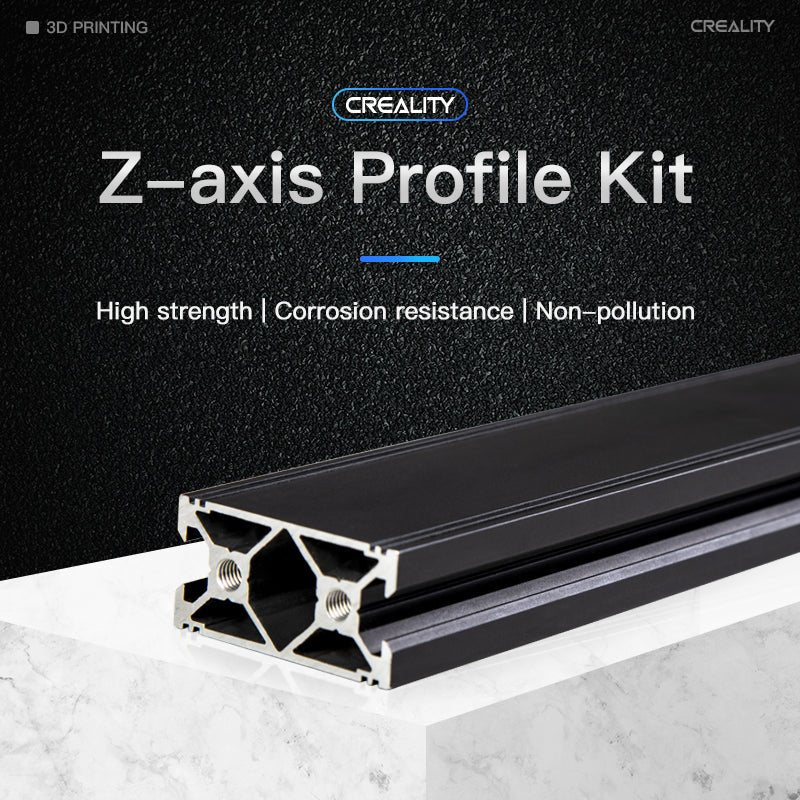

Left Z-Axis Profile Overview

• Material: Typically made from high-strength aluminum alloy, often in a 2040 V-slot configuration.

• Function: Serves as the vertical rail on the left side of the printer, guiding the Z-axis movement.

• Compatibility: Commonly used in models like the Ender 3, Ender 3 Pro, Ender 3 V2, and their variants.eBay+4Amazon+4YouTube+4

🔧 Replacement Options

1. Creality Official Parts:

   • Creality offers official replacement parts, including the Z-axis profiles.

   • These can be found on their official store or authorized retailers.

2. Third-Party Suppliers:

   • Various online retailers and marketplaces, such as Amazon and eBay, list compatible Z-axis profiles.

   • Ensure the specifications match your printer model to guarantee compatibility.

3. Custom Fabrication:

   • If you're unable to find a direct replacement, consider sourcing a 2040 aluminum extrusion of the required length and machining it to fit.

⚠️ Installation Tips

• Alignment: Ensure the new profile is perfectly vertical to prevent issues like Z-wobble.

• Fastening: Use appropriate screws and T-nuts to secure the profile firmly to the printer base.

• Accessories: Transfer or reinstall components like the Z-axis limit switch and stepper motor mount onto the new profile.
