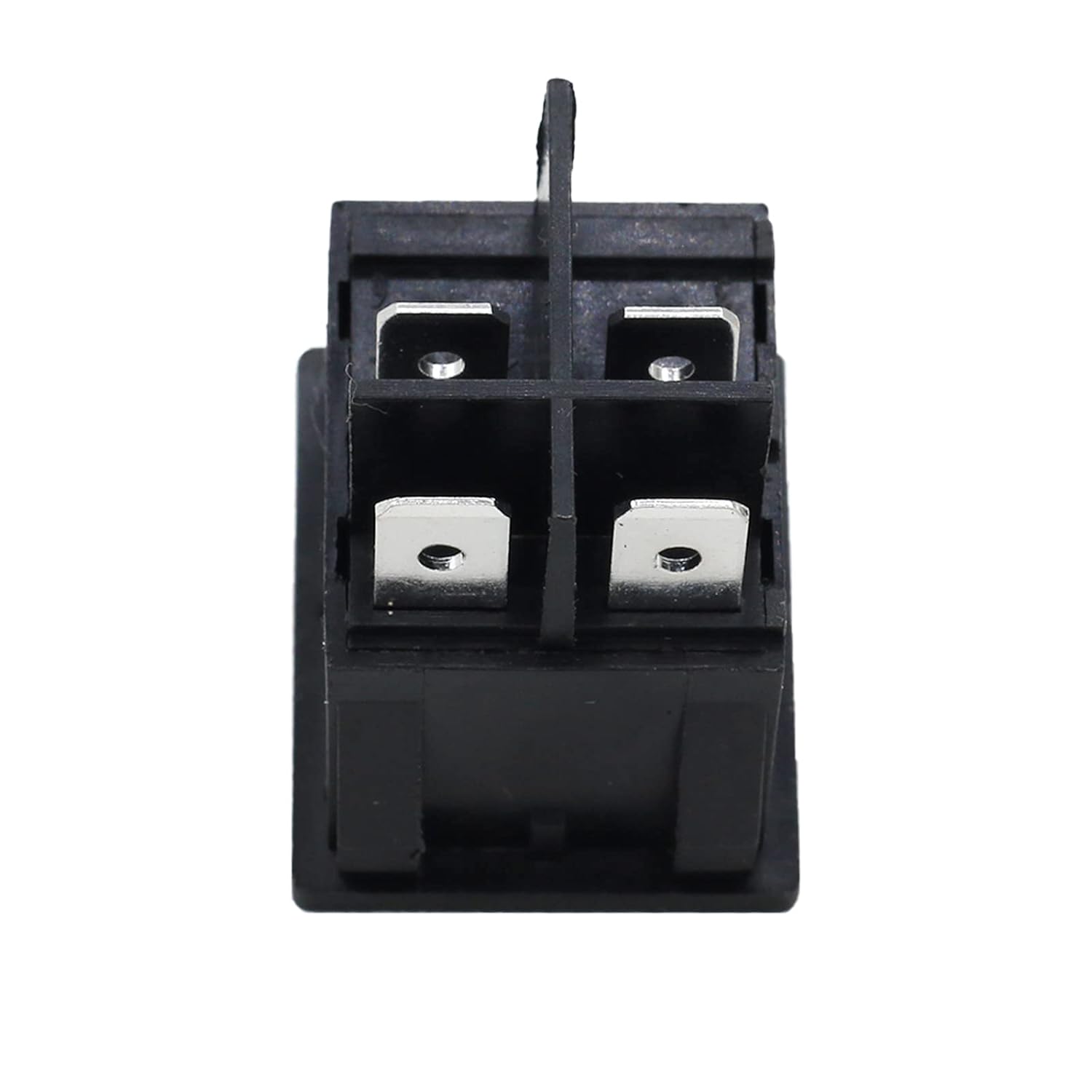

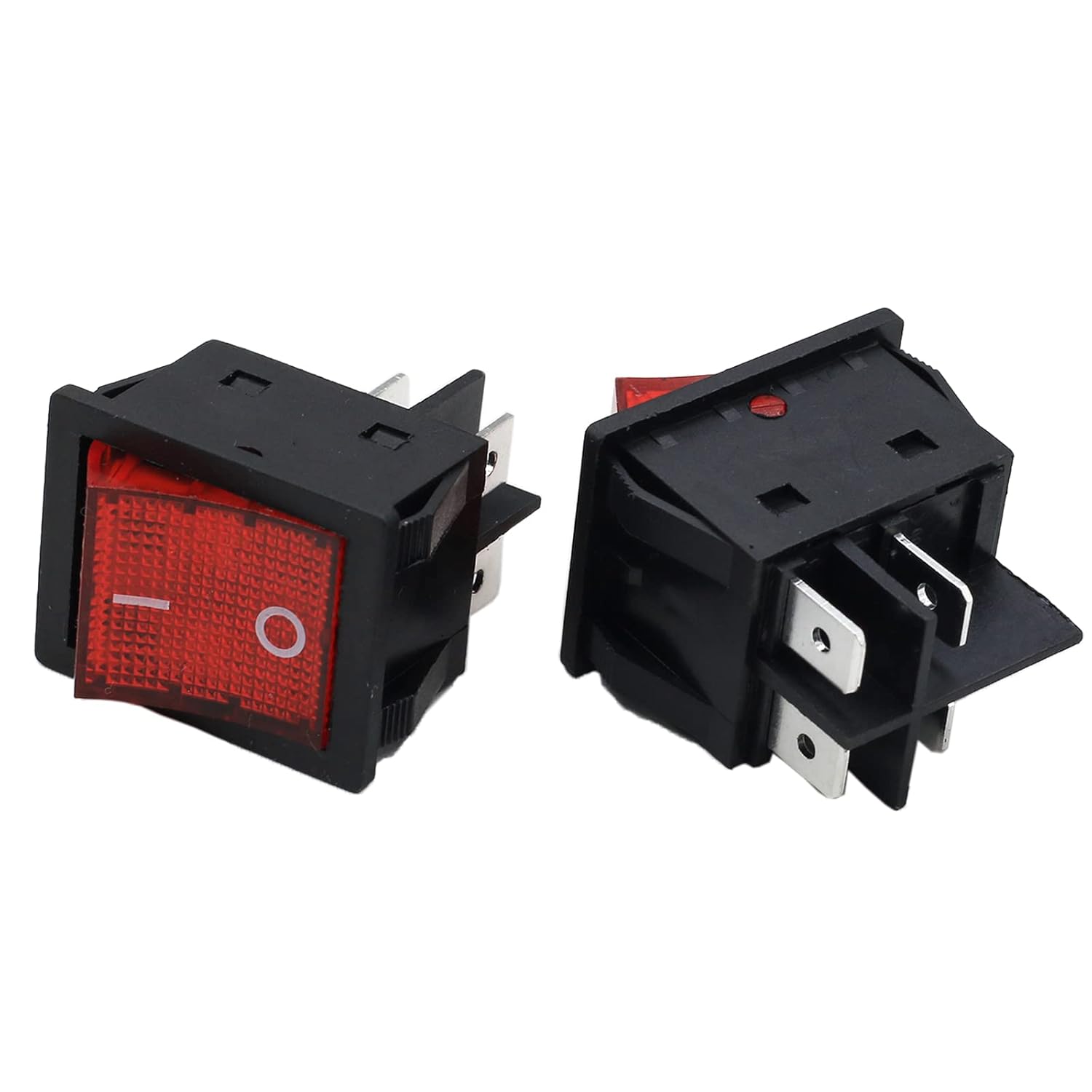

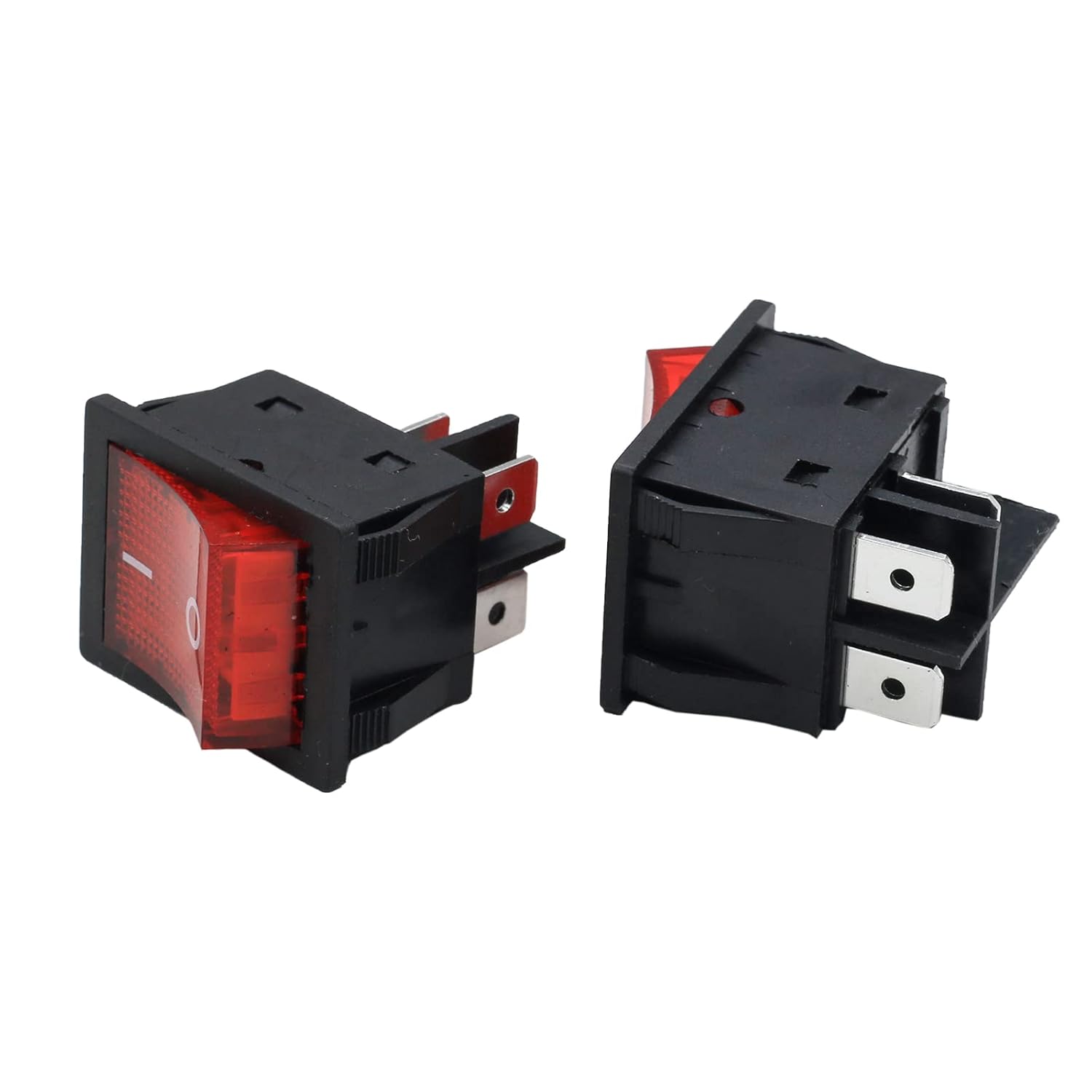

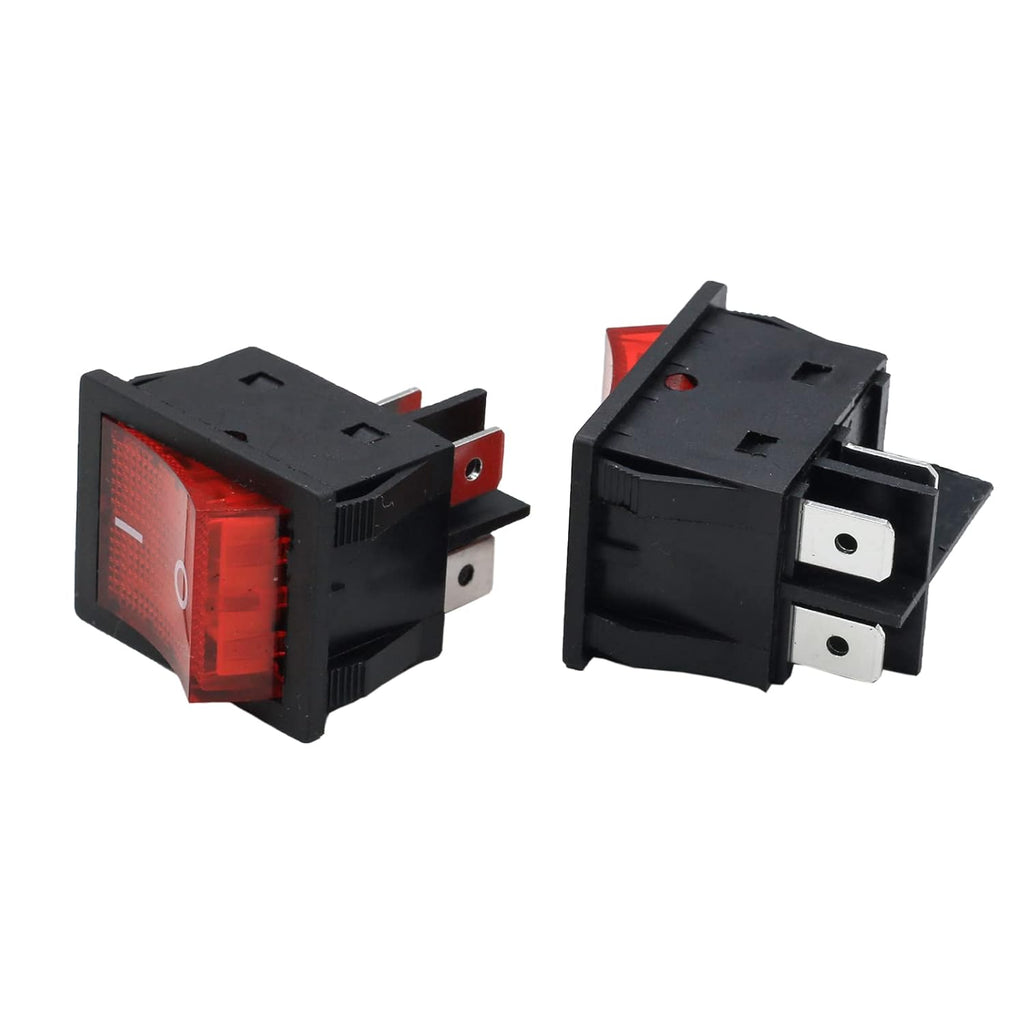

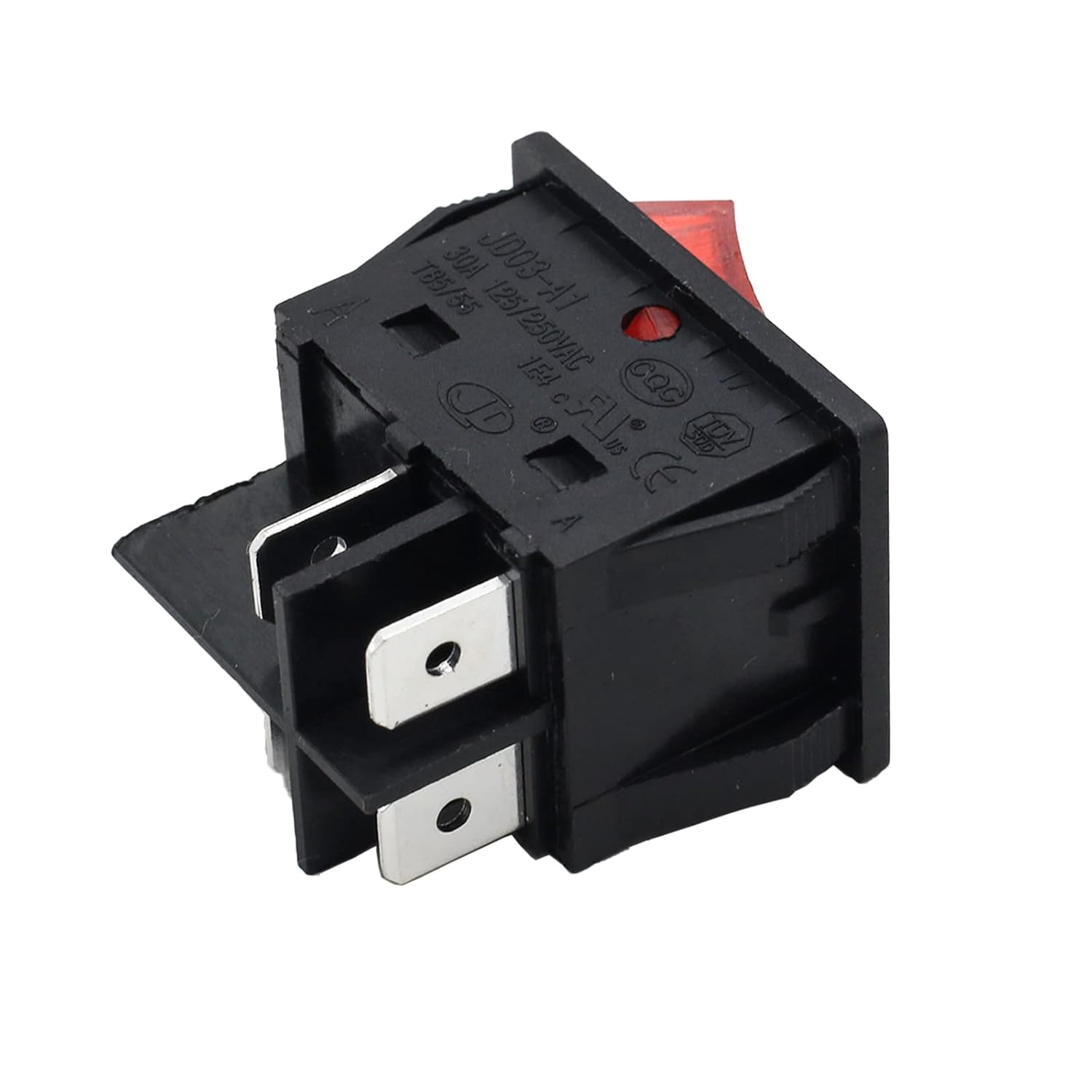

JD03-A1 4-Pin 30A Rocker Switch (250VAC) – Heavy-Duty Power Switch
The JD03-A1 4-Pin Rocker Switch is a high-performance, heavy-duty electrical switch designed for high-current applications such as inverter welding machines, industrial equipment, and power control systems. With a robust 30A current rating and support for up to 250VAC, this switch ensures reliable and stable operation under demanding conditions.
Its durable construction and precise ON/OFF mechanism make it an ideal replacement or upgrade for power tools and machinery requiring dependable switching performance.
Key Features
-
Heavy-duty rocker switch with ON/OFF function
-
High current capacity: up to 30A
-
Supports 125V / 250VAC operation
-
4-pin design for secure and stable connections
-
Built for high-load equipment like welding machines
-
Smooth switching with reliable contact performance
-
Compact and easy panel mounting design
Technical Specifications
-
Model: JD03-A1
-
Switch Type: Rocker (ON/OFF)
-
Rated Current: 30A
-
Rated Voltage: 125V / 250VAC
-
Pin Configuration: 4 Pins
-
Contact Resistance: ≤ 50mΩ
-
Insulation Resistance: ≥ 100MΩ
-
Dielectric Strength: 1500VAC (1 minute)
-
Electrical Life: Up to 50,000 cycles
-
Temperature Rating: T85/55
Build & Durability
-
High-quality plastic housing for insulation and strength
-
Copper/silver alloy contacts for efficient conductivity
-
Designed to withstand heavy electrical loads and frequent use
-
Long operational lifespan for industrial environments
Applications
-
Inverter welding machines
-
Industrial equipment and machinery
-
Power supply control panels
-
DIY electrical and electronics projects
-
Heavy-duty appliances
Why Choose This Switch?
The JD03-A1 rocker switch is engineered for reliability and high-current performance. Whether you're repairing a welding machine or building a power control system, this switch delivers consistent operation, durability, and safety—making it a trusted choice for both professionals and hobbyists.
