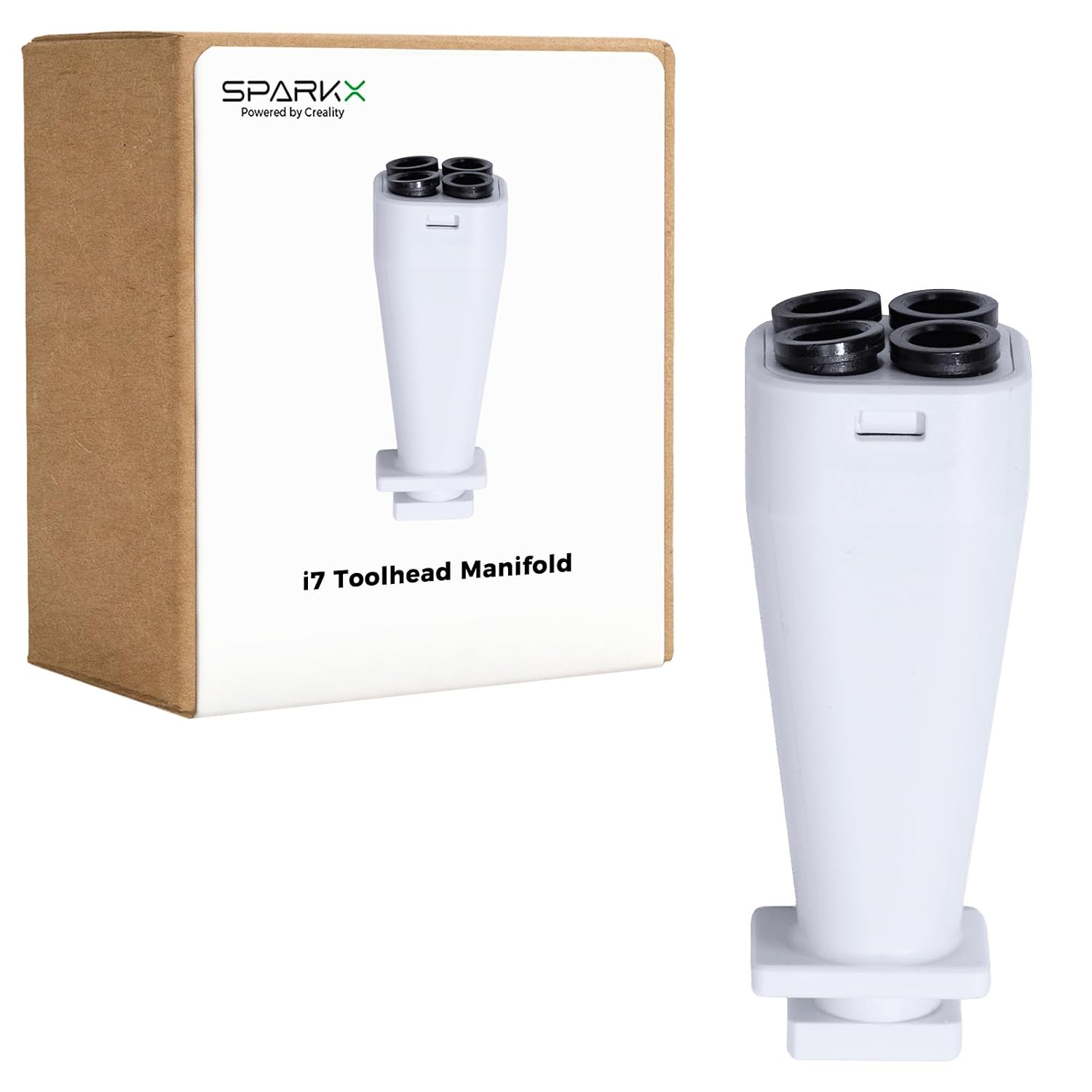

Creality SPARKX i7 Toolhead Manifold Assembly – Genuine OEM Replacement
The Creality SPARKX i7 Toolhead Manifold Assembly is a genuine OEM replacement component designed specifically for the Creality SPARKX i7 3D Printer. The manifold forms an important part of the printer’s filament path, guiding filament from the PTFE feeding system into the toolhead and toward the extruder.
This component is especially important when using the SPARKX i7 for automatic filament handling and multi-color printing, where filament must move smoothly and reliably through the feeding path during loading, unloading, and material changes. Creality’s service documentation confirms that the PTFE tube connects directly to the Toolhead Manifold and that the manifold is a separately secured component within the toolhead assembly.
Product Function

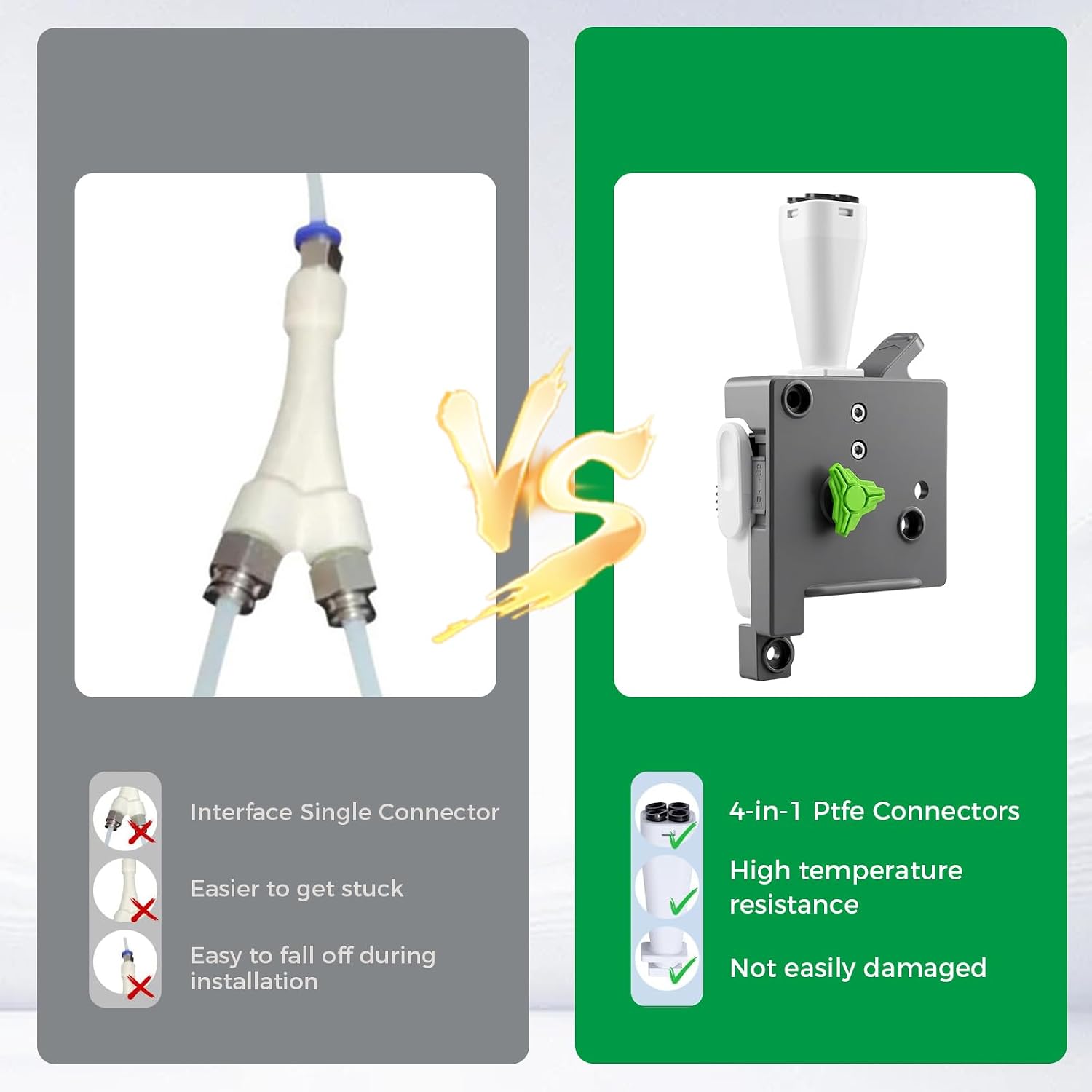

The Toolhead Manifold provides the transition point between the printer’s external filament feeding path and the extrusion system.
Its primary functions include:
- Guiding filament from the PTFE tube into the toolhead
- Maintaining proper filament alignment before entering the extruder
- Supporting automatic filament loading and unloading
- Helping provide smooth filament transitions during material changes

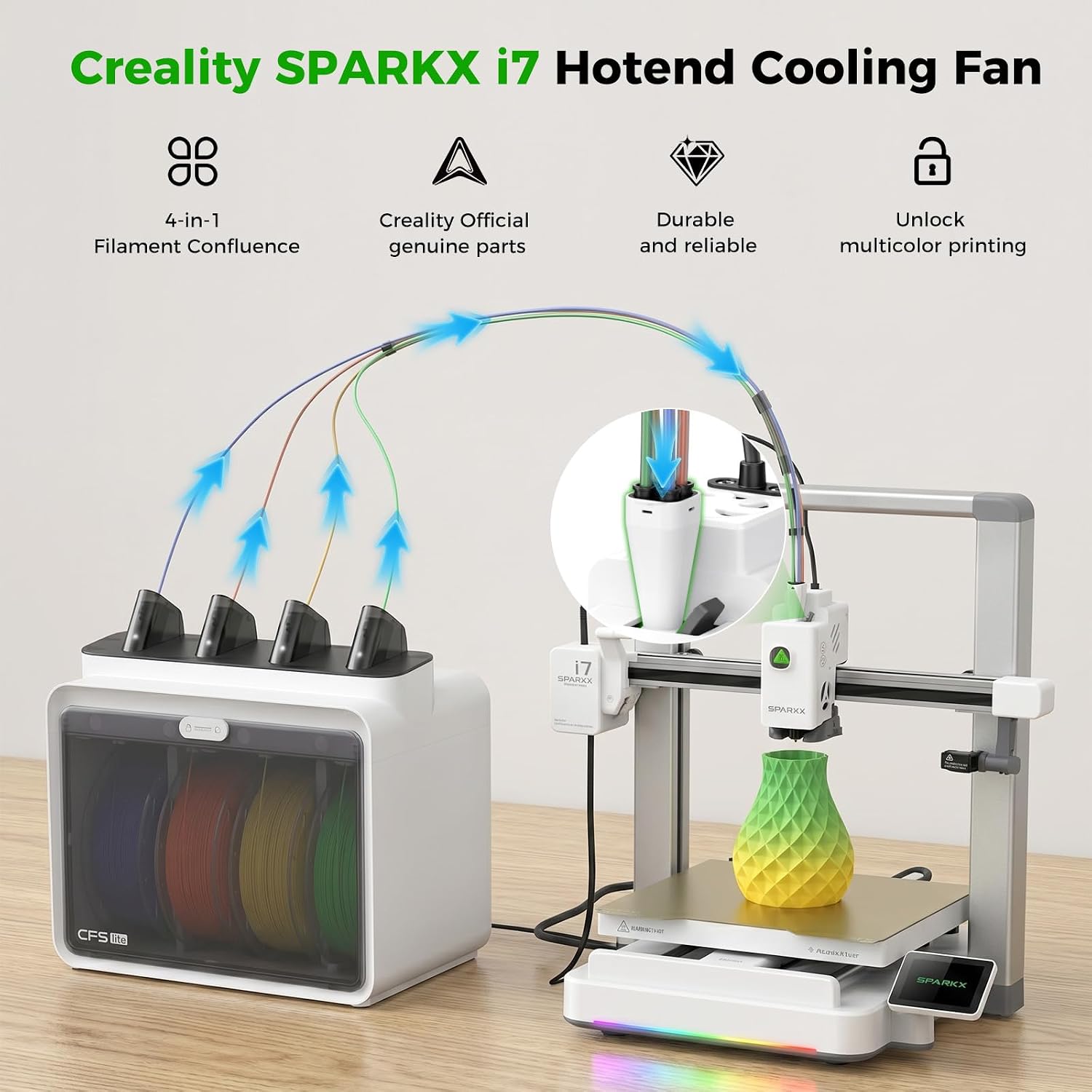

- Supporting multi-color printing when used with the compatible CFS system
- Maintaining a controlled filament path into the extrusion assembly

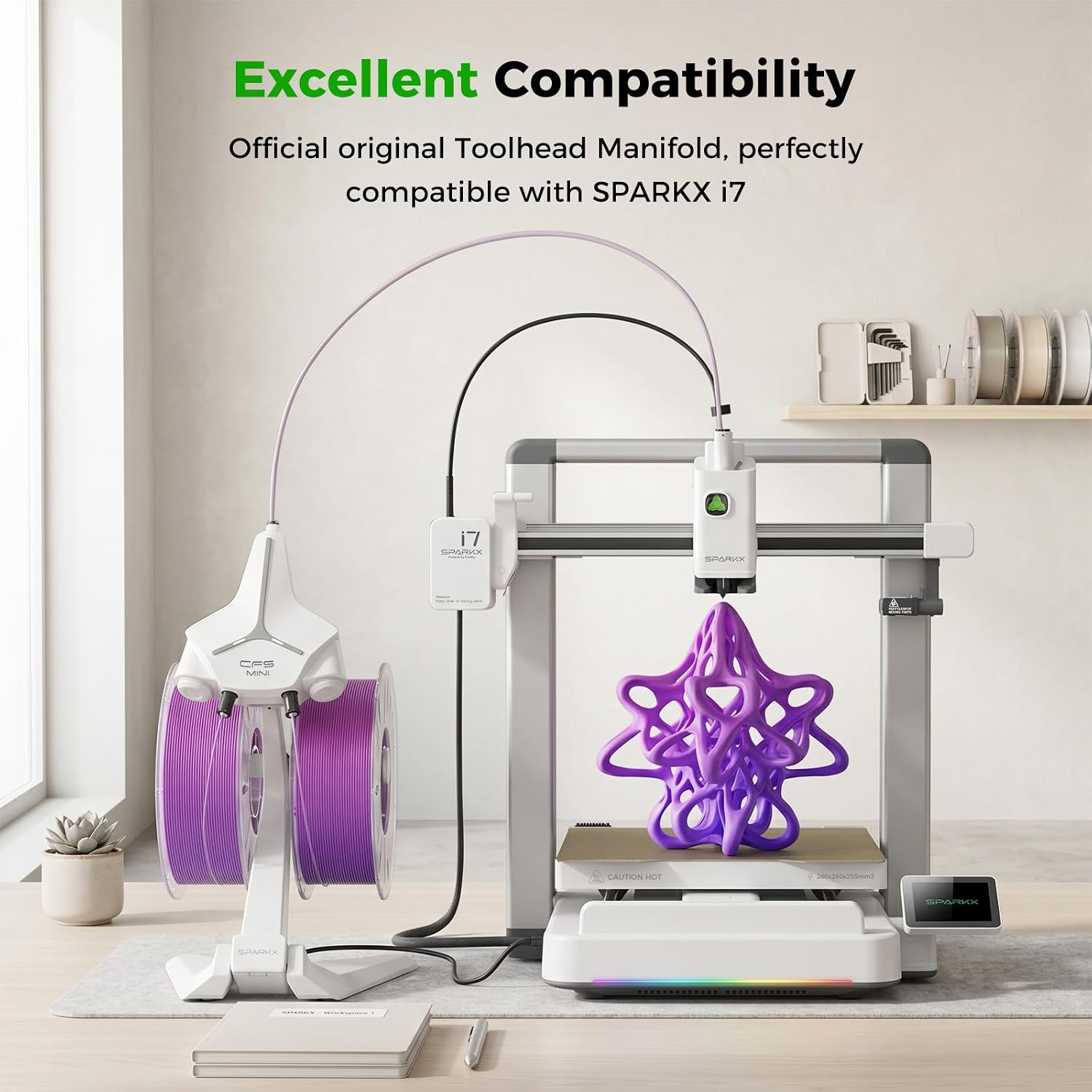

Creality confirms that the SPARKX i7 supports automatic filament relay when used with CFS and includes filament-management features designed for automated printing.
Key Features
- Genuine Creality OEM replacement component
- Designed specifically for the Creality SPARKX i7
- Provides an organized filament entry path into the toolhead
- Connects directly with the printer’s PTFE filament tubing
- Guides filament toward the extruder assembly
- Supports automatic filament loading and unloading
- Important for reliable multi-color filament changes
- Helps maintain proper filament alignment
- Direct replacement for the original Toolhead Manifold Assembly
- Ideal for repairing a damaged, worn, or malfunctioning filament-path component
- Helps restore reliable filament feeding performance
Specifications
- Brand: Creality
- Product Type: Toolhead Manifold Assembly
- Compatible Printer: Creality SPARKX i7
- Installation Location: Toolhead / Extrusion Assembly
- Function: Filament Routing & Guidance

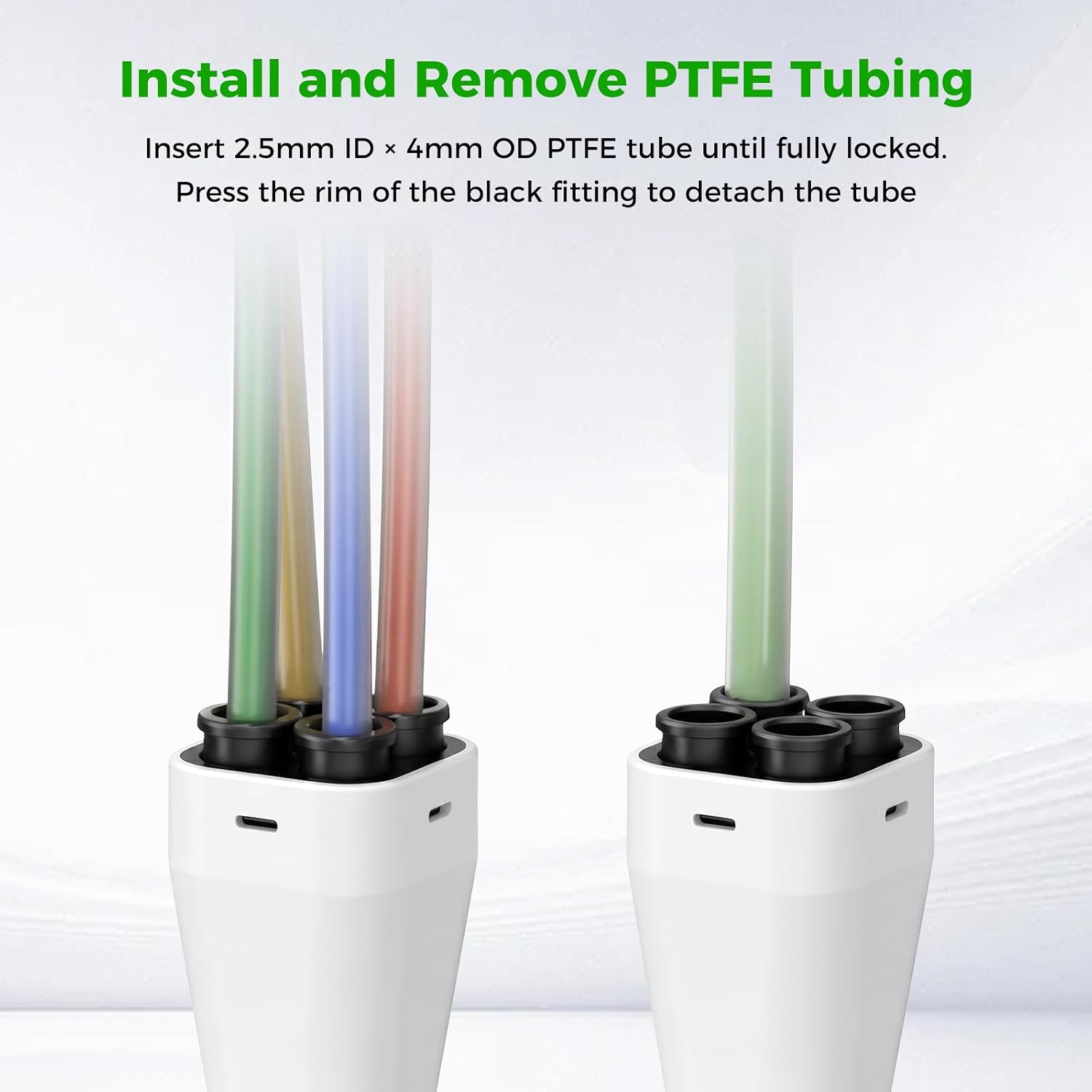

- Connection: PTFE Filament Tube
- Application: Standard and Multi-Color FDM/FFF 3D Printing
- Installation: Direct Replacement Component

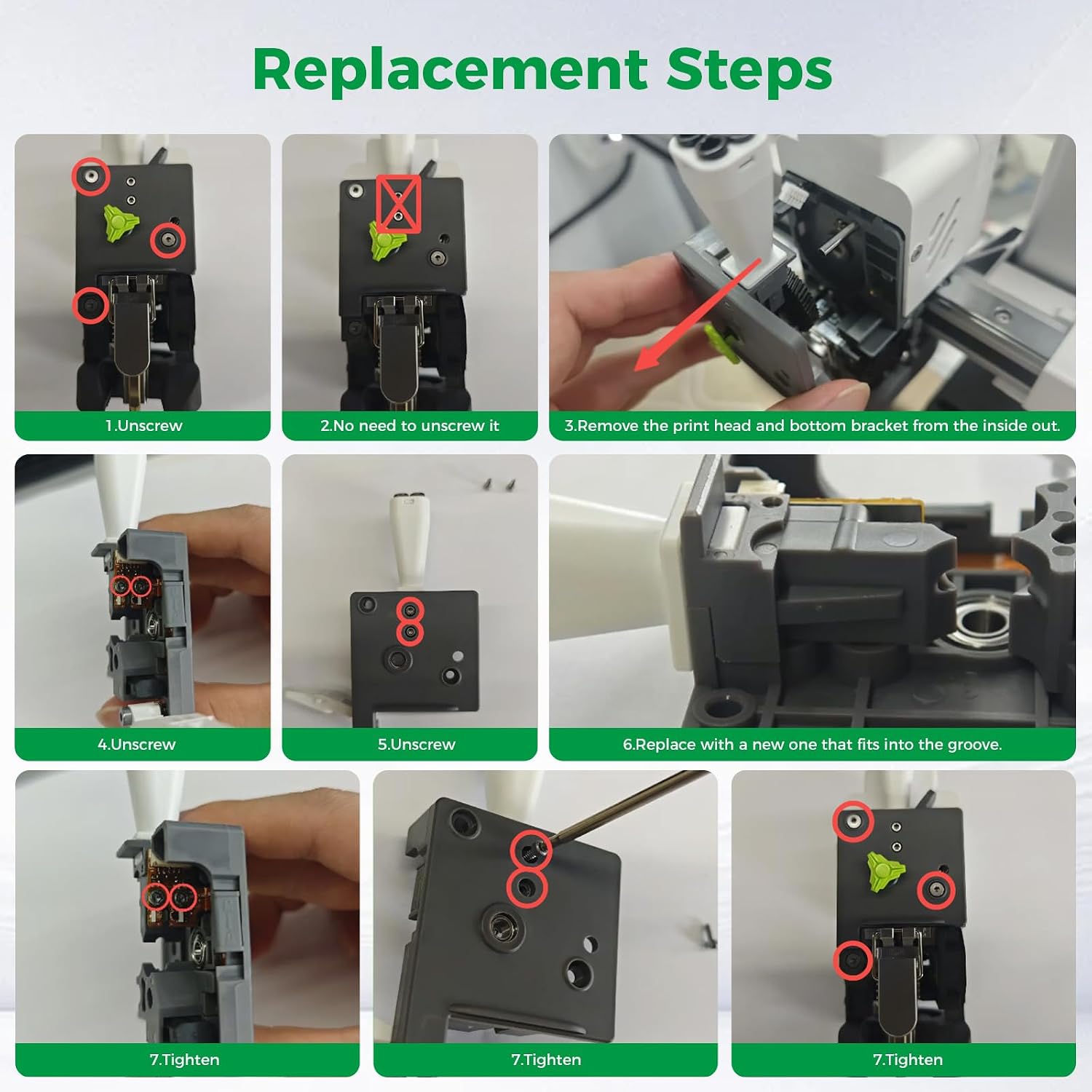

Creality’s official screw guide identifies M2 × 6 screws as the hardware used to secure the Toolhead Manifold Assembly.
When Should It Be Replaced?
Consider replacing the Toolhead Manifold Assembly if you experience filament binding or excessive resistance near the toolhead, difficulty loading or unloading filament, repeated feeding errors during automatic material changes, visible damage to the PTFE connection, or physical damage to the original manifold.
Because PTFE tubes, extruder gears, filament sensors, and other feeding components can produce similar symptoms, inspect the complete filament path before replacing the manifold.
Package Includes
- 1 × Creality SPARKX i7 Toolhead Manifold Assembly
Important Notes
This product is the Toolhead Manifold Assembly and should not be confused with the Toolhead Mainboard V08, Extruder Assembly, or CFS Lite Buffer Assembly.
When servicing the extrusion system, Creality instructs users to power off and unplug the printer and ensure the hotend and heated bed are at a safe temperature before beginning maintenance.
