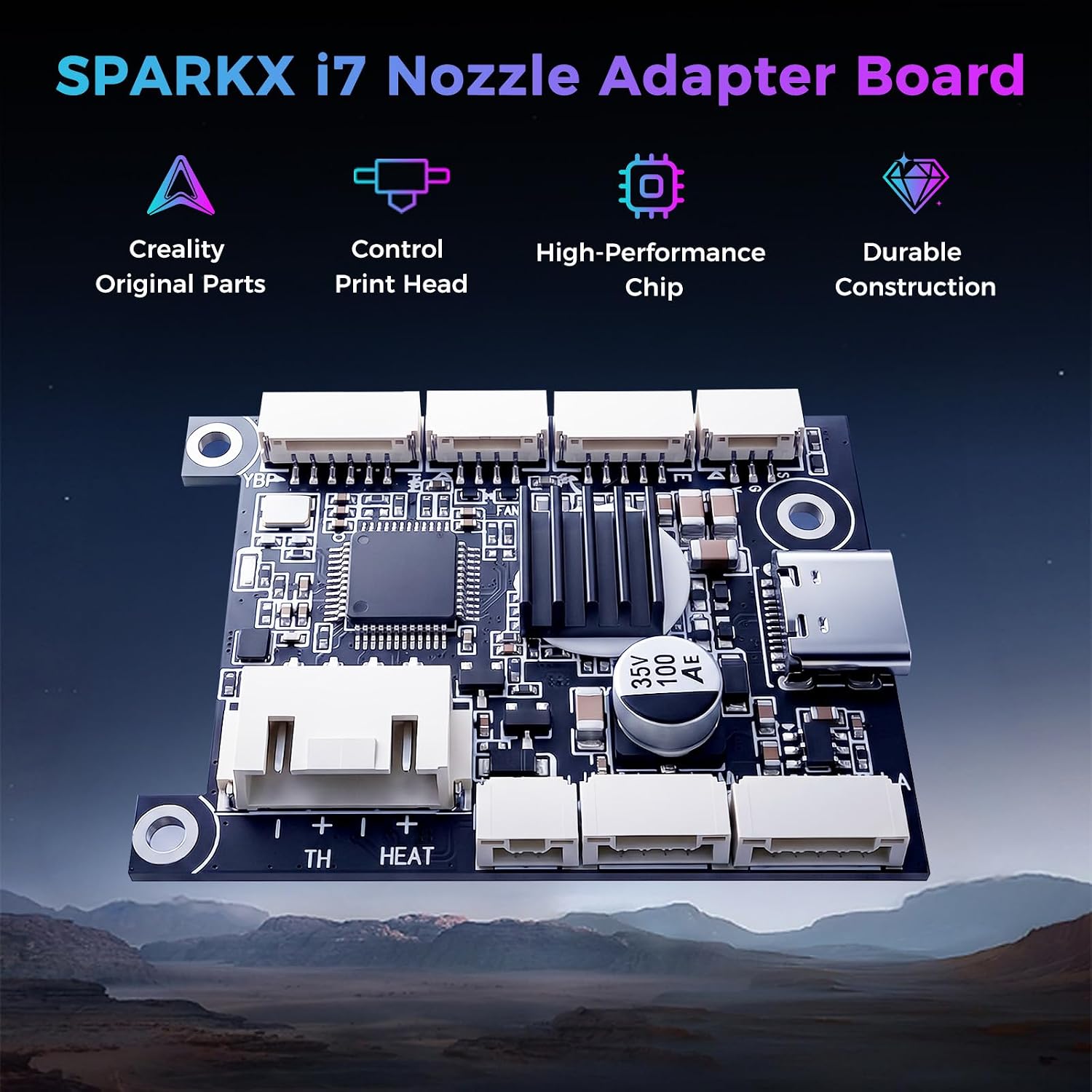

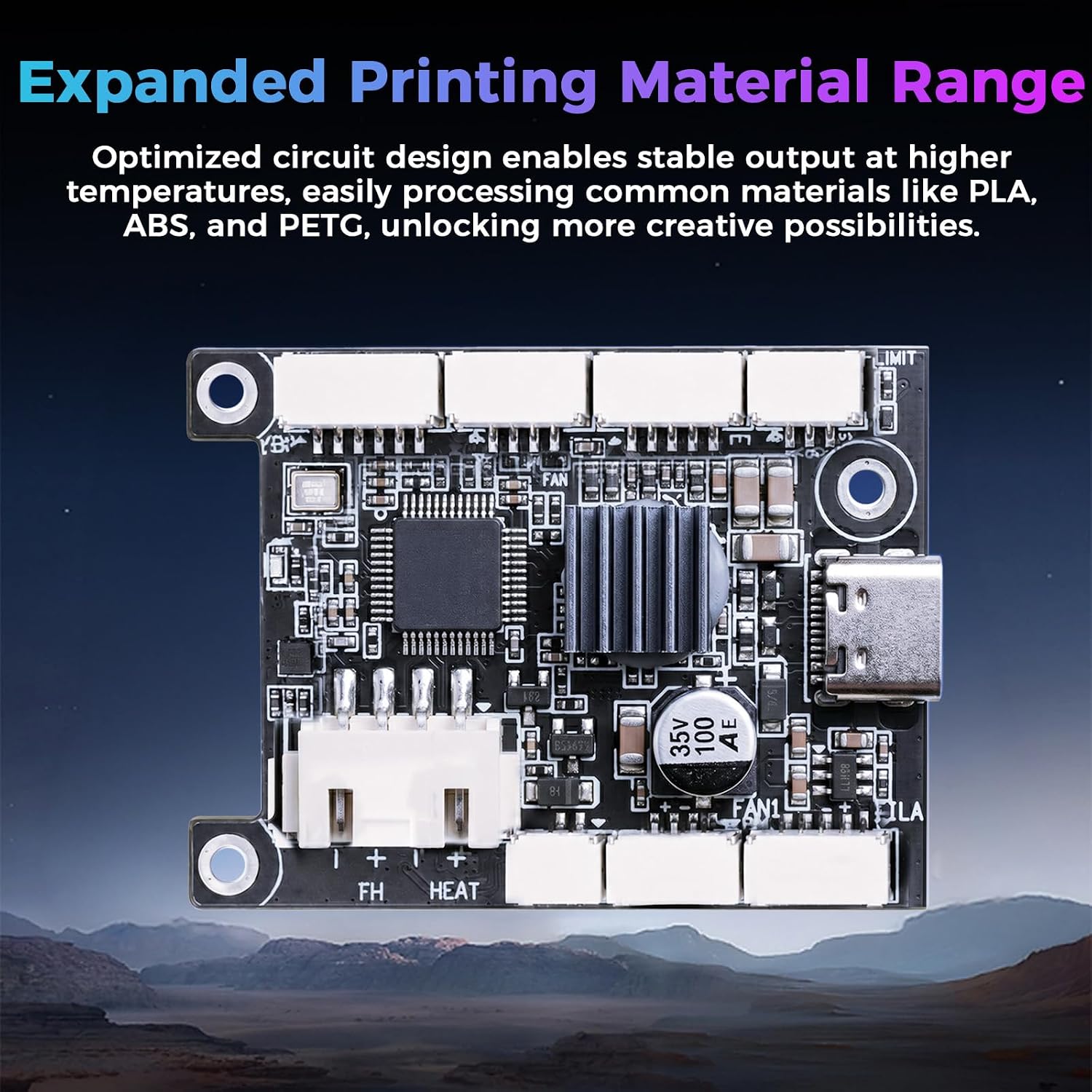

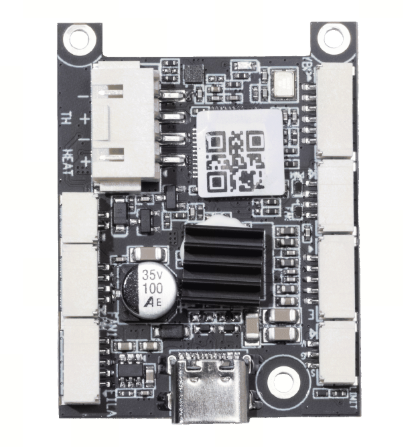

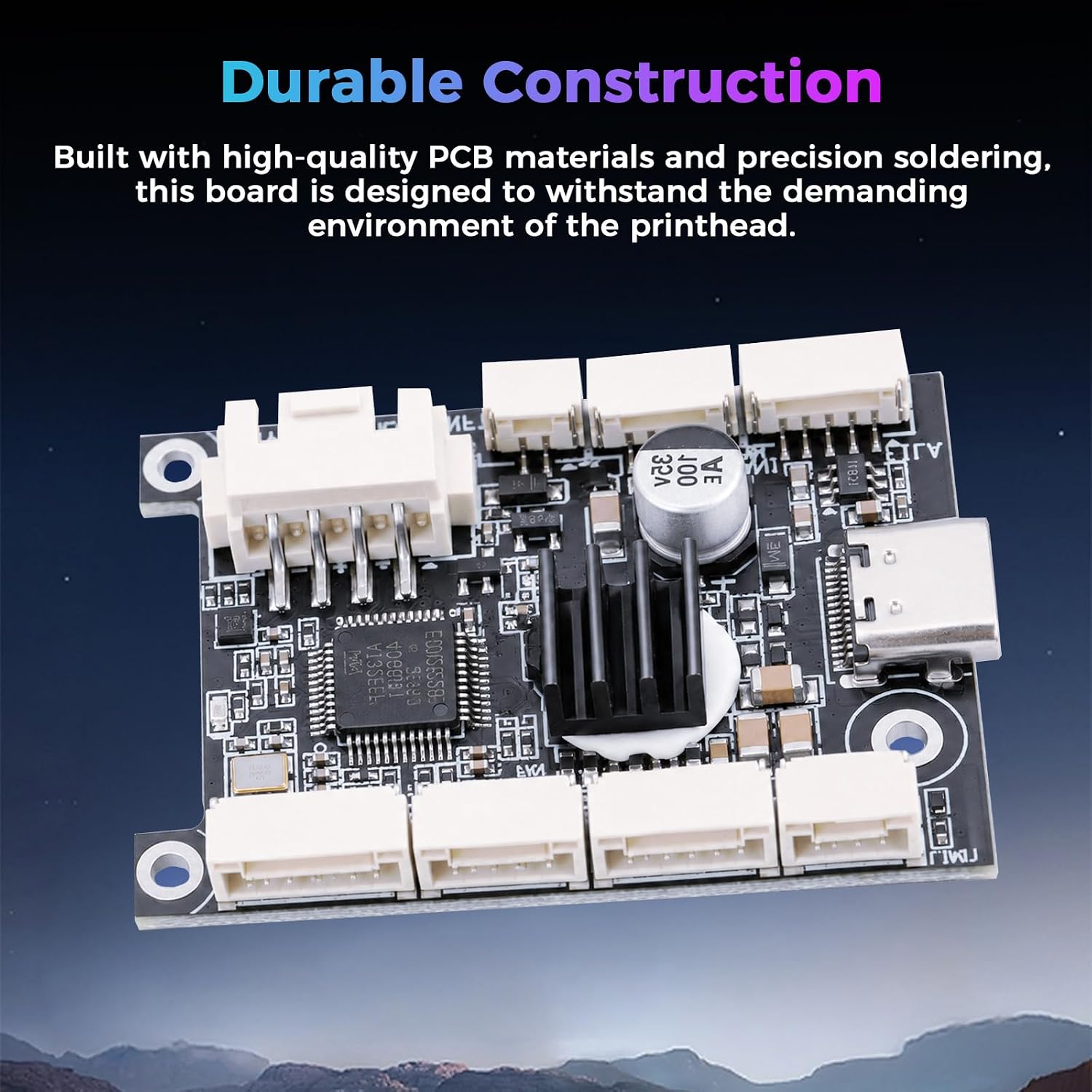

Creality SPARKX i7 Toolhead Mainboard V08 – Genuine OEM Replacement Board
The Creality SPARKX i7 Toolhead Mainboard V08 is a genuine OEM replacement electronic board designed specifically for the Creality SPARKX i7 3D Printer. Installed inside the toolhead, this board serves as the central electronic interface for multiple printhead components, helping coordinate communication between the toolhead and the printer's main control system.
The SPARKX i7 toolhead integrates several electronic and mechanical systems—including the extruder, hotend, cooling fans, filament detection, and cutter-related components—making reliable toolhead electronics essential for proper printer operation. The toolhead connects back to the printer electronics through its dedicated cable system.
Product Function

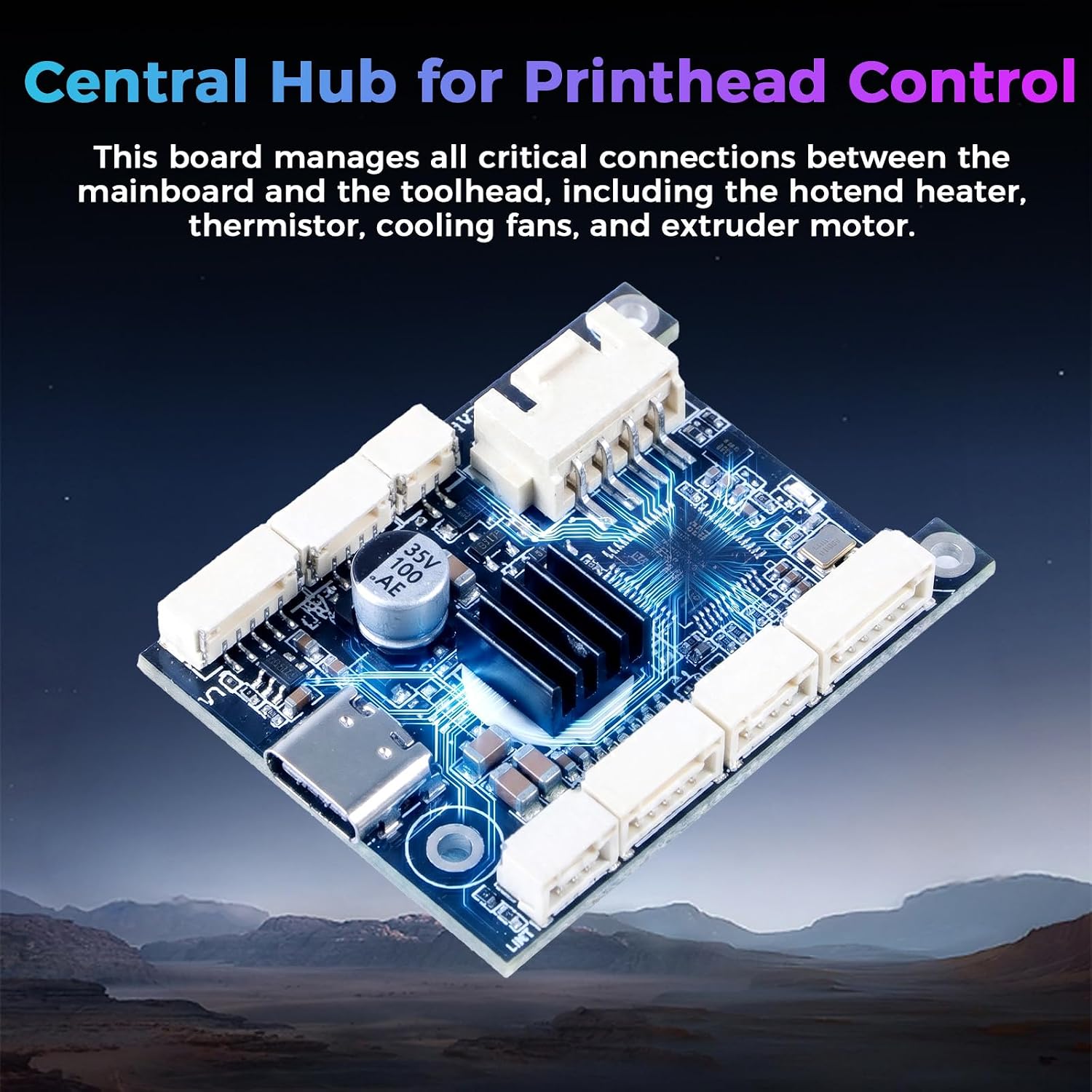

The Toolhead Mainboard provides the electrical connections and communication interface required by components located within the SPARKX i7 printhead.
A properly functioning toolhead board helps support:
- Hotend and extrusion-system operation
- Toolhead fan control and connectivity
- Filament detection functions
- Filament cutter-related functions
- Temperature monitoring and control
- Communication between the toolhead and main control electronics
- Reliable operation during standard and multi-color printing
Key Features
- Genuine Creality OEM replacement component
- Designed specifically for the Creality SPARKX i7
- V08 board revision
- Installed directly inside the printer's toolhead
- Provides connectivity for multiple toolhead components
- Supports communication between the printhead and printer electronics
- Designed for the SPARKX i7 high-speed extrusion system
- Supports the printer's automatic filament-management functions
- Direct replacement for the original toolhead PCB
- Ideal for maintenance and electronic repair
- Helps restore proper toolhead operation after board failure
Specifications
-
Brand: Creality
-
Product Type: Toolhead Mainboard / Toolhead PCB
-

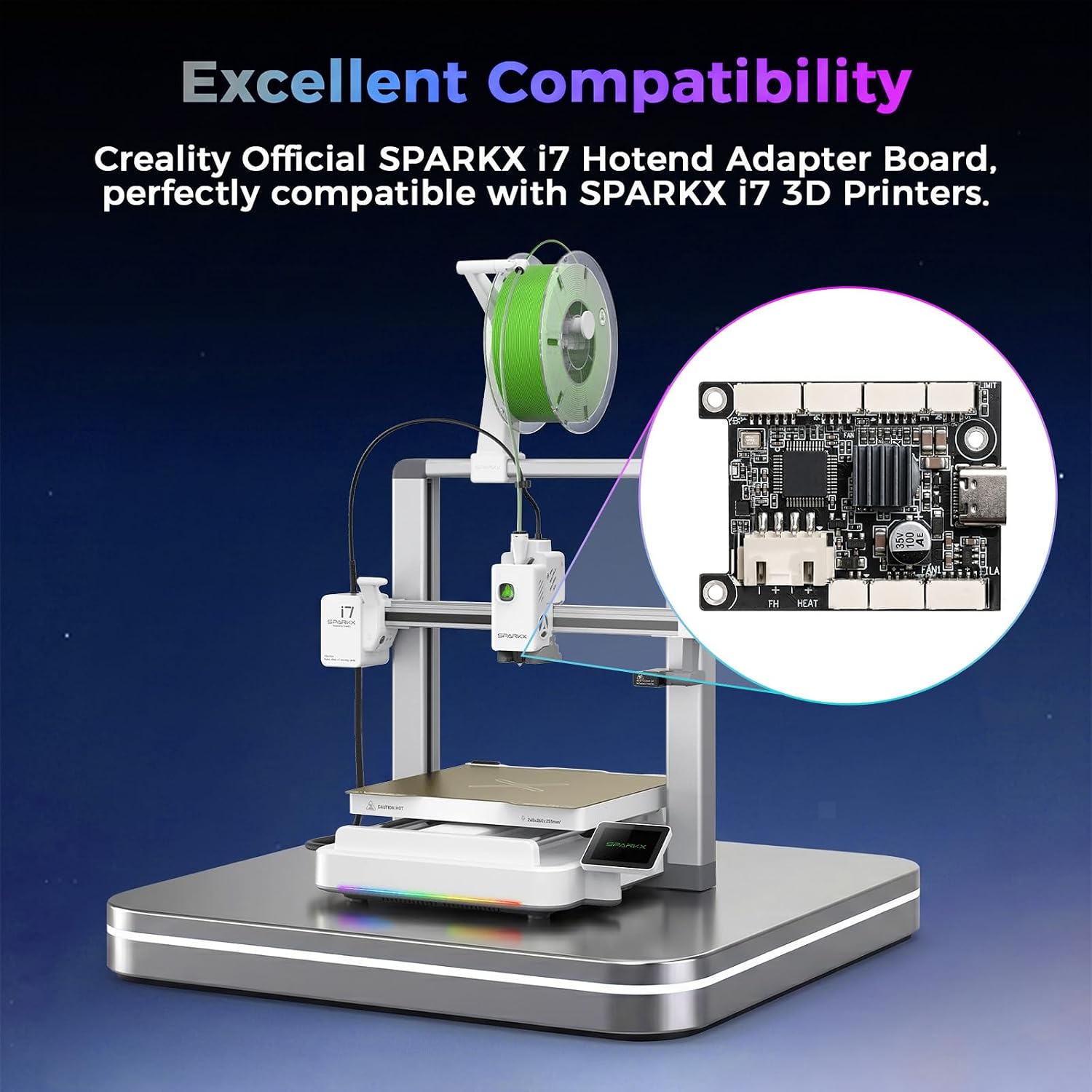

Compatible Printer: Creality SPARKX i7
-
Board Version: V08
-
Installation Location: Toolhead / Printhead Assembly
-
Function: Toolhead Electronic Control & Communication
-
Application: FDM/FFF 3D Printing
-
Installation: Internal Direct Replacement
When Should It Be Replaced?
Replacement may be appropriate when troubleshooting problems such as:
- Toolhead communication errors
- Hotend or extruder components not responding
- Fan-control problems traced to the toolhead board
- Filament sensor or cutter-related communication problems
- Intermittent toolhead operation
- Damaged connectors on the original PCB
- Visible electrical or physical damage to the board
Before replacing the board, inspect the toolhead cable and all connectors carefully. A loose or improperly seated toolhead connection can cause communication errors similar to those produced by a faulty PCB.
Package Includes

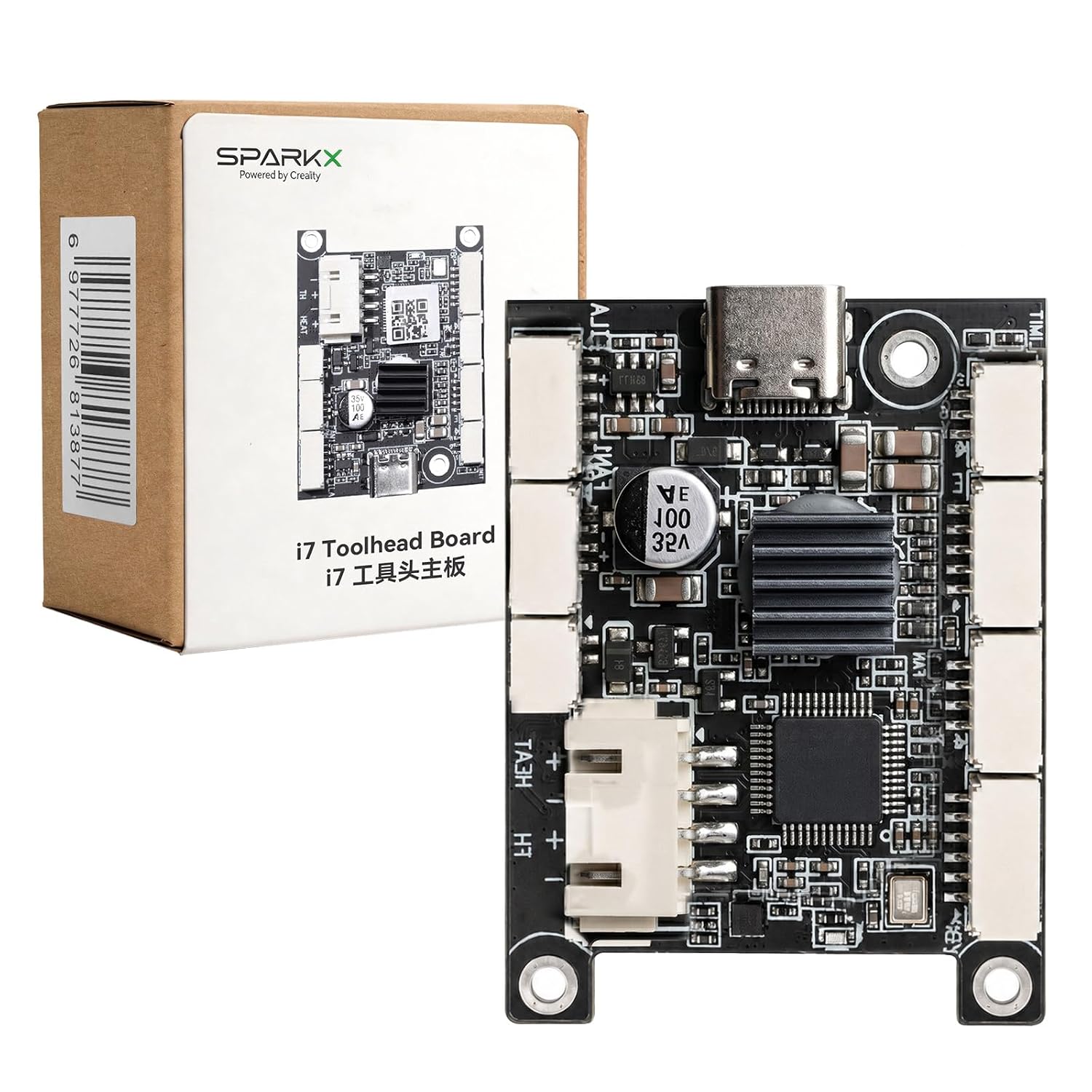

- 1 × Creality SPARKX i7 Toolhead Mainboard V08
Important Notes
This is the Toolhead Mainboard V08 and should not be confused with the C15 Control Mainboard located in the printer's main electronics system. They are separate components with different functions.
Always power off and unplug the printer before replacing electronic components. Carefully verify all cable and connector positions before applying power after installation.
The SPARKX i7 is designed for printing speeds up to 500 mm/s, includes filament runout monitoring and cutter-wear monitoring, and supports automatic filament relay when used with the CFS system.
