AD8232 ECG Monitoring Sensor Module Kit – Heart Rate Measurement for Arduino

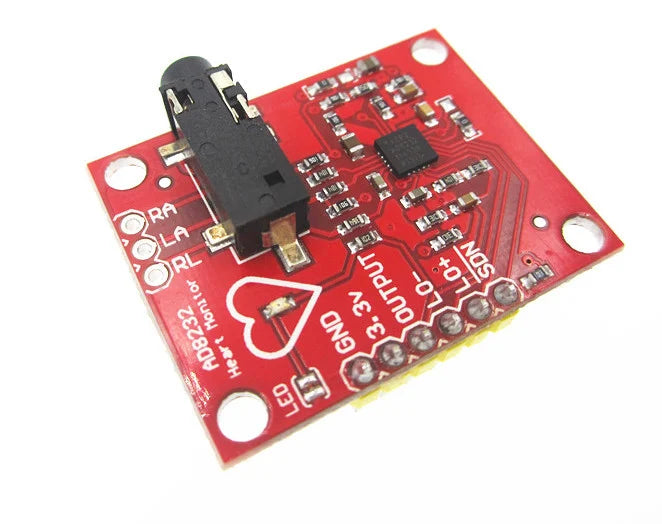

The AD8232 ECG Monitoring Module Kit is a compact, high-performance solution for measuring and analyzing the electrical activity of the heart. Designed for portable and wearable applications, this module integrates advanced signal conditioning to deliver clean and reliable ECG data.
Built around the AD8232 chip, it filters, amplifies, and processes weak bioelectric signals, making it ideal for heart rate monitoring and biomedical development projects.
Key Features:
-
AD8232 integrated ECG front-end – precise bio-signal acquisition
-
Built-in filtering system – reduces noise and motion artifacts using high-pass and low-pass filters
-
Analog output – easy interface with Arduino, ESP32, and other microcontrollers
-
Low power consumption – suitable for portable and battery-powered devices
-
Wide operating temperature – approx. -40°C to +85°C
-
Compact design – ideal for wearable and embedded applications
Applications:
- Heart rate and ECG monitoring
- Fitness and sports tracking devices
- Portable medical and health monitoring systems
- Remote patient monitoring and IoT projects
- Educational and biomedical experiments
Specifications:
- Chipset: AD8232
- Supply Voltage: 2.0V – 3.5V
- Output: Analog signal
- Signal Processing: Amplification + filtering (2-pole HPF, 3-pole LPF)
- Operating Temperature: -40°C to +85°C
- Interface: Standard pin headers for MCU connection

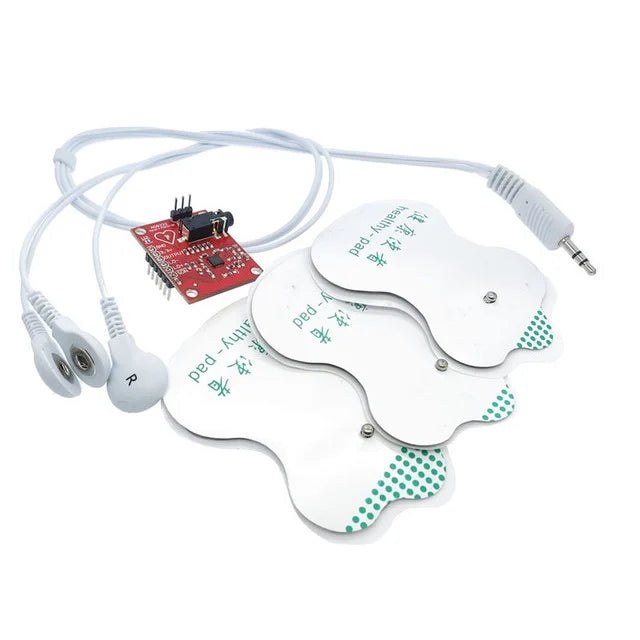

Package Includes:
- 1 × AD8232 ECG Monitoring Module
- 1 × Electrode Cable Set
- 3 × Disposable ECG Electrodes
