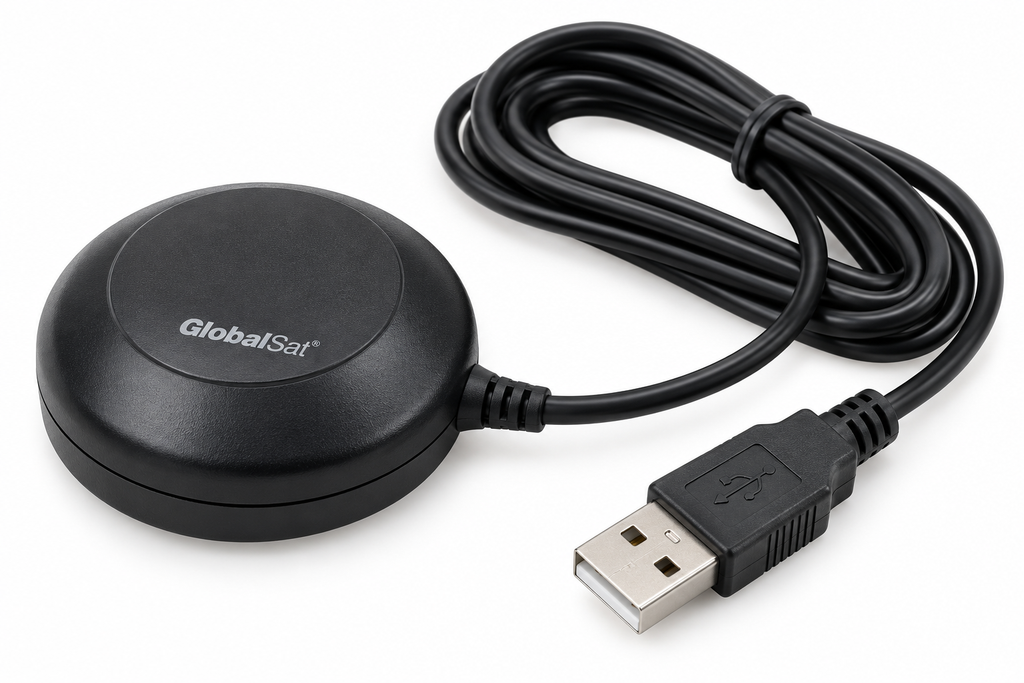

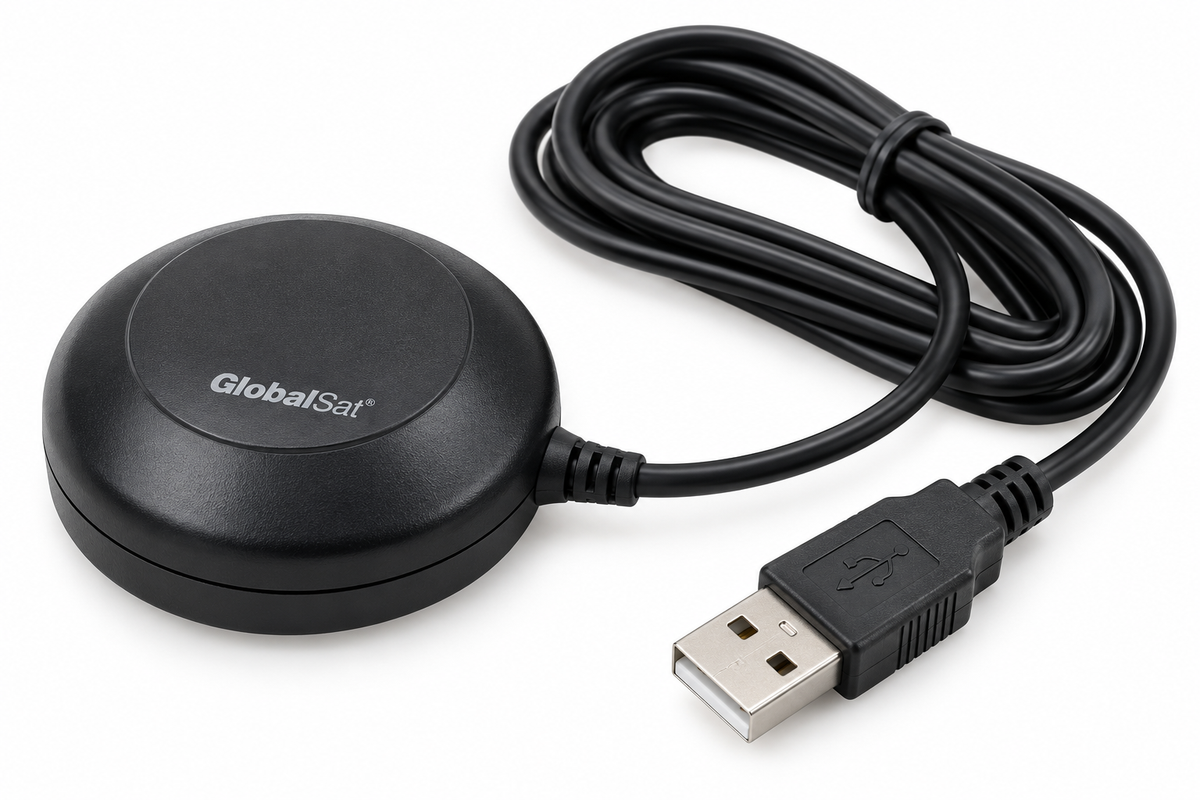

GlobalSat BU-353N5 USB GPS/GNSS Receiver β Magnetic Mount
Product Description
The GlobalSat BU-353N5 USB GNSS Receiver is a compact, high-sensitivity GPS receiver designed to provide accurate positioning and navigation data to compatible computers and electronic systems.
Featuring a built-in GPS antenna, magnetic mounting base, and convenient USB connection, this receiver is ideal for vehicle navigation, GPS mapping, fleet tracking, marine applications, and custom location-based projects.
Its advanced 75-channel GNSS receiver offers excellent satellite tracking performance, even in challenging environments such as urban areas and locations with limited satellite visibility.
Key Features
-
High-Sensitivity GNSS Receiver: Reliable satellite acquisition and positioning.
-
75-Channel Satellite Tracking: Improved tracking performance and signal reception.
-
USB Interface: Connects directly to a compatible computer through a standard USB-A port.
-
Magnetic Mounting Base: Securely attaches to suitable metal surfaces, including vehicle roofs.
-
Built-in GPS Antenna: Compact, all-in-one design without the need for an external antenna.
-
Water-Resistant Housing: Designed for indoor and outdoor GPS applications.
-
LED Status Indicator: Displays receiver operation and GPS satellite-fix status.
-
NMEA 0183 Protocol: Supports standard GPS data output for compatible navigation and mapping software.
-
Low Power Consumption: Powered directly through the USB connection.
-
Made in Taiwan.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GlobalSat |
| Model | BU-353N5 |
| Receiver Type | USB GNSS/GPS Receiver |
| Tracking Channels | 75 |
| Tracking Sensitivity | -165 dBm |
| Position Accuracy | Less than 2.5 meters (2D RMS, SBAS enabled) |
| Interface | USB-A |
| Output Protocol | NMEA 0183 |
| Default Baud Rate | 4800 bps |
| Operating Voltage | 5V DC Β±5% |
| Typical Current | 42 mA |
| Receiver Diameter | 53 mm (2.08") |
| Receiver Height | 19.2 mm (0.75") |
| Cable Length | Approx. 1.52 m (5 ft) |
| Mounting | Magnetic Base |
| Operating Temperature | -40Β°C to +85Β°C |
Applications
-
Vehicle GPS navigation systems
-
Laptop and PC navigation
-
Marine navigation software
-
Fleet management and vehicle tracking
-
GIS and GPS data collection
-
Robotics and custom tracking projects
-
Location-based software applications
Package Includes
-
1 Γ GlobalSat BU-353N5 USB GNSS Receiver with Integrated USB Cable
Important Notes
-
This is a GPS/GNSS receiver, not a standalone navigation device or cellular tracker.
-
Compatible GPS navigation or mapping software is required.
-
Drivers may be required depending on the operating system.
-
Satellite reception is best when the receiver has a clear view of the sky.
-
Internet access is not required for receiving satellite positioning signals, but mapping software may require internet access for map downloads or other features.
