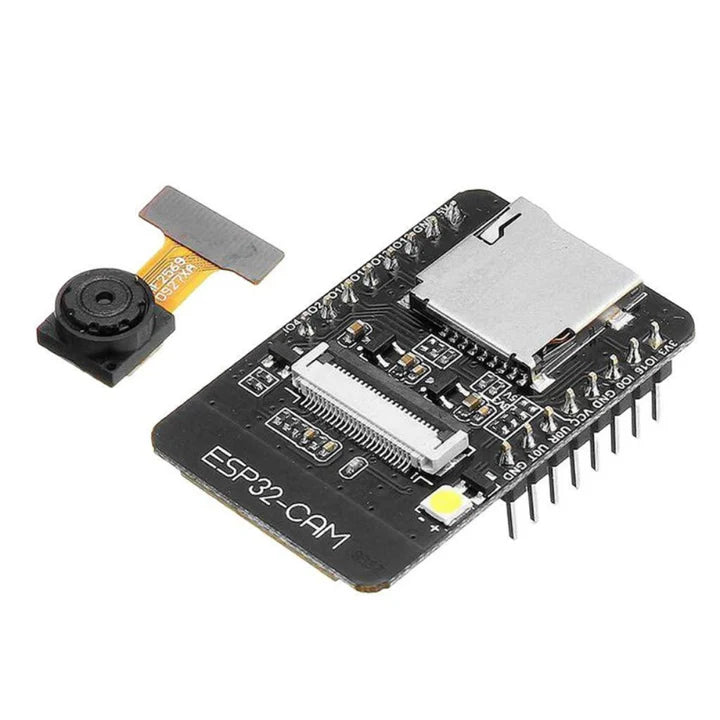

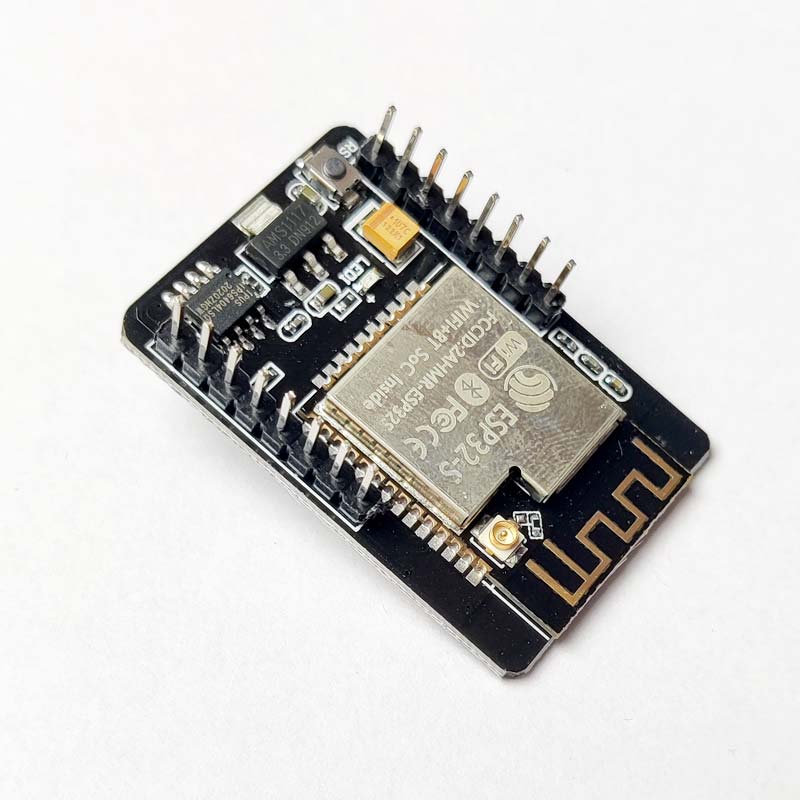

The ESP32-CAM (OT103-B53) is a compact and powerful development board that combines an ESP32 microcontroller with an OV2640 camera module. With built-in WiFi and Bluetooth connectivity, this board is ideal for IoT, wireless video streaming, surveillance systems, and smart automation projects.
Designed for flexibility and low power consumption, the ESP32-CAM can operate as a standalone system or be integrated into larger embedded applications.
π§ Key Features
- π‘ Built-in WiFi (802.11 b/g/n) & Bluetooth 4.2 (BLE)
- π· OV2640 camera module (up to 2MP resolution)
- β‘ Dual-core ESP32 processor up to 240MHz
- πΎ Supports MicroSD (TF card) storage
- π Multiple interfaces: UART, SPI, I2C, PWM, ADC, DAC
- π Low power consumption with sleep modes
- π Supports AP, STA, and AP+STA modes
π Specifications
-
Microcontroller: ESP32 (dual-core Tensilica LX6)
-
Clock Speed: Up to 240MHz
-
Camera: OV2640 (1600 Γ 1200 max)
-
RAM: 520KB SRAM + external PSRAM
-
Wireless: WiFi + Bluetooth BLE
-
Storage: MicroSD card slot
-
GPIO: Up to 10 available pins
-
Power Supply: 5V input
-
Size: Approx. 40 Γ 27 mm
π§ Applications
- πΉ Wireless video streaming server
- π Smart home & IoT devices
- π Security & surveillance cameras
- π€ AI vision & face detection projects
- π¦ Remote monitoring systems
π¦ Package Includes
- 1 Γ ESP32-CAM Development Board (OT103-B53)
- 1 Γ OV2640 Camera Module
