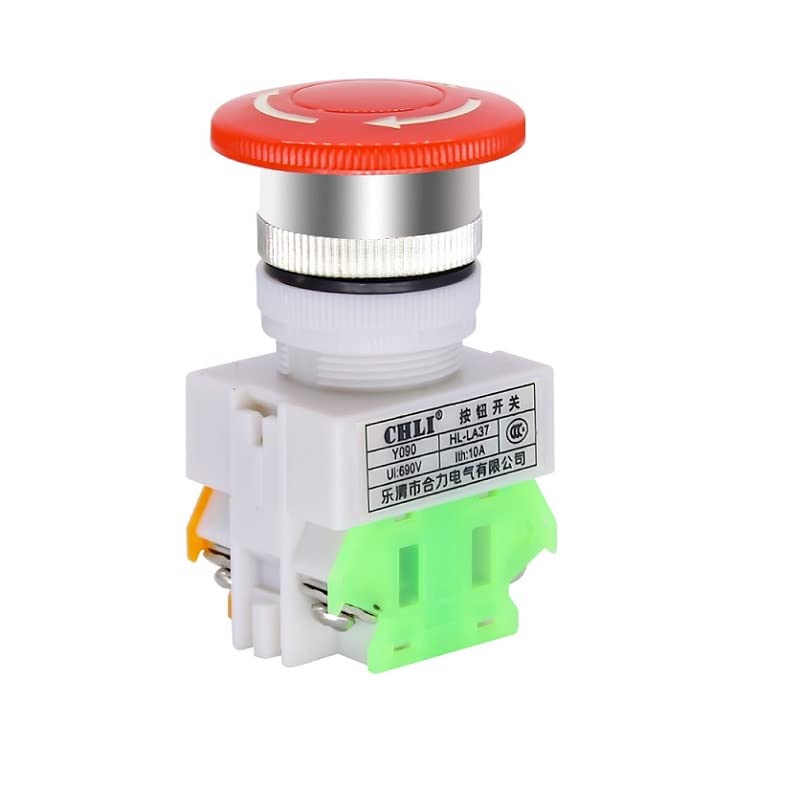

The LAY37-11ZS emergency stop switch is a dependable safety device designed for quick and effective shutdown of machinery and electrical systems in emergency situations. Featuring a large red mushroom cap and a self-locking (latching) mechanism, it ensures immediate response and secure operation.
Engineered for industrial use, this switch fits standard 22mm mounting holes and supports high-voltage applications, making it ideal for control panels, elevators, and heavy equipment.
Key Features:
-
Emergency stop (E-Stop) function – instant shutdown for safety
-
Large red mushroom head – easy to identify and press quickly
-
Self-locking / latching design – stays engaged until manually reset
-
22mm standard mounting – fits most control panels
-
1NO + 1NC (DPST contacts) – flexible wiring options
-
High electrical rating – up to AC 660V, 10A
-
Durable construction – suitable for industrial environments
How It Works:
- Press the button → circuit changes state → equipment stops
- Button locks in place for safety
- Twist or reset → returns to normal operation
Applications:
- Industrial machinery and automation systems
- Elevators and lifting equipment
- CNC machines and control panels
- Emergency shutdown circuits
- Electrical and safety control systems
Specifications:
- Model: LAY37-11ZS
- Mounting Hole Size: 22mm
- Contact Type: 1NO + 1NC (DPST)
- Rated Voltage: Up to AC 660V
- Rated Current: 10A
- Operation: Push-lock, twist to release
- Head Type: Red mushroom cap
- Material: Industrial-grade plastic and metal components
Package Includes:
- 1 × LAY37-11ZS Emergency Stop Push Button Switch
