Descripción
Without micro:bit Board

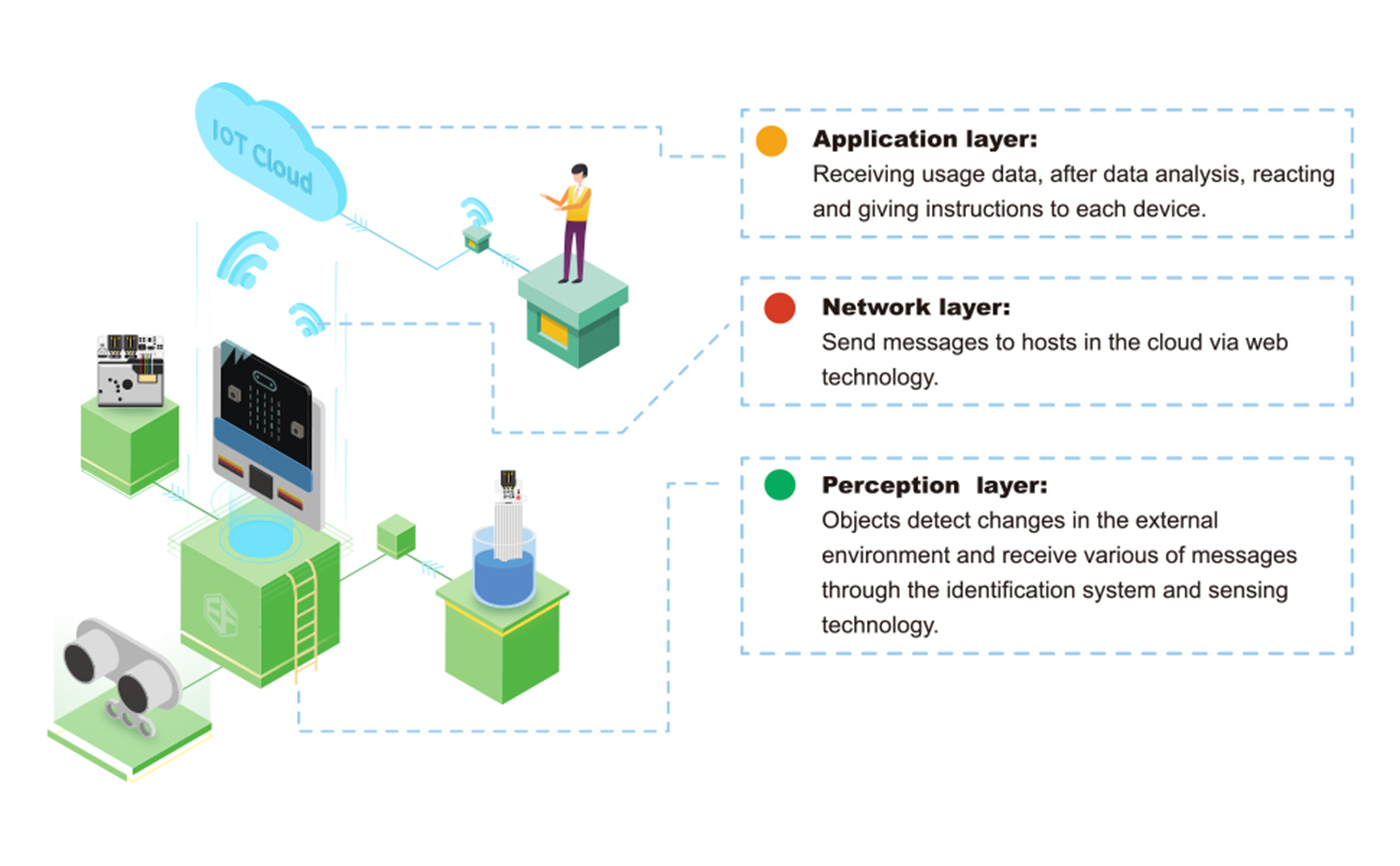

ELECFREAKS Smart Science IoT Kit is developed based on IOT:bit, a new breakout board compatible with science sensors such as the ultrasonic sensor, dust sensor, light sensor, and water level sensor, including RTC Timing and WIFI module. You can gather data via the sensors and send data to the cloud with a more stable and accurate data analysis.
IOT:bit Expansion Board

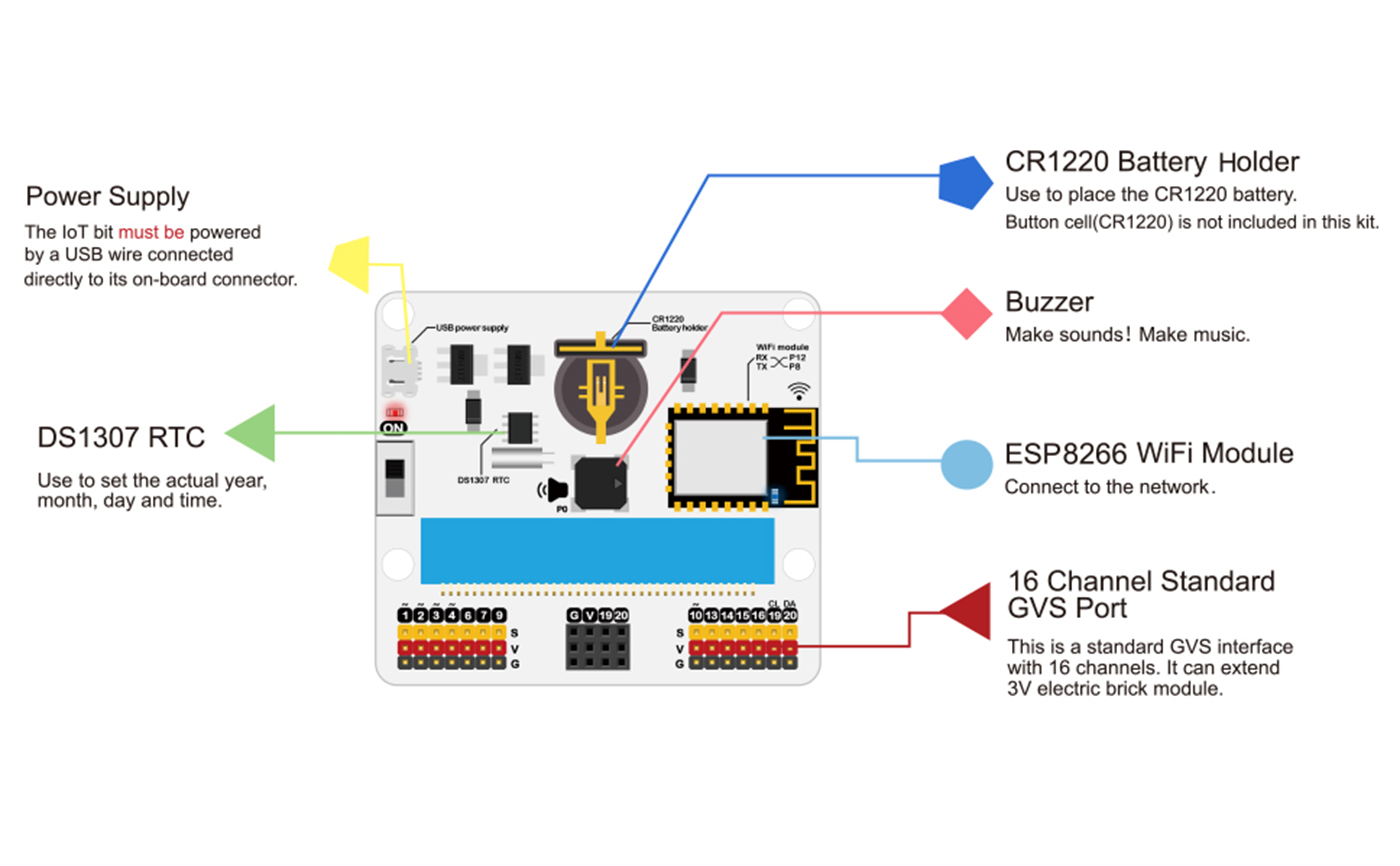

IOT:bit is an expansion board based on IOT for micro:bit, it can support the sensors in 3-pins, the actuator, and the buzzer, it can also give a specific time telling even the micro:bit powers off with the RTC onboard.
It uses ESP8266 as a WIFI expansion board and serial port to communicate with micro:bit. It also has extended all available IO ports of the micro:bit which is led by GVS and you can extend various 3V E-blocks as LED, photosensitive, and servo by using it. At the same time, the IOT:bit with an on-board buzzer for outside sound and an onboard RTC clock for timing without a power supply. The codebase for makecode can connect to Thingspeak conveniently and create your IoT project quickly.
Includes:
- IoT:bit
- OLED
- BME 280
- PIR sensor
- Light sensor
- Noise sensor
- Water level sensor
- soil moisture sensor
- Sonar:bit
- Dust sensor
- 180° servo
ELECFREAKS WIKI
https://wiki.elecfreaks.com/en/microbit/wisdom-life/microbit-smart-science-iot-kit/
