The EC5 5.0mm connector set is a high-current, gold-plated bullet connector system capable of handling up to 100A of continuous current, ideal for RC vehicles, drones, electric bikes, batteries, and ESCs. The EC5 design ensures a secure, low-resistance connection and easy plug/unplug functionality.
This set includes one male and one female connector housing, along with gold-plated 5.0mm bullet contacts for both sides. The gold plating offers excellent conductivity and corrosion resistance, making it suitable for high-performance and high-demand power systems.

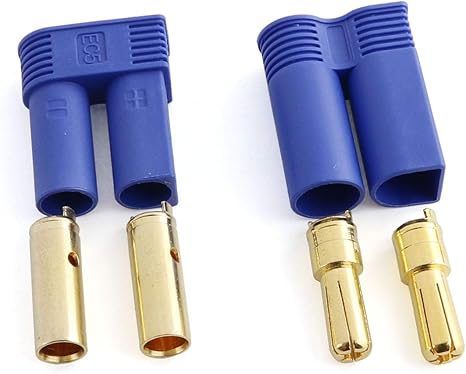

Includes (1 Set):
-
1 × EC5 plastic male housing
-
1 × EC5 plastic female housing
-
2 × 5.0mm gold-plated bullet connectors (male)
-
2 × 5.0mm gold-plated bullet connectors (female)
Specifications:
-
Connector Type: EC5
-
Contact Size: 5.0 mm
-
Current Rating: Up to 100A continuous
-
Voltage Rating: Up to 500V
-
Material: Gold-plated copper contacts, high-temp nylon housing
-
Application: RC batteries, ESCs, electric vehicles, drones, DIY electronics
-
Features:
-
Secure fit with anti-spark protection (when used correctly)
-
High-current capacity
-
Durable and reusable design
-
Low contact resistance for efficient power transfer
