The EC3 connector set is a reliable 3.5mm gold-plated bullet connector system designed for RC applications, including LiPo batteries, ESCs (electronic speed controllers), and other high-current power systems. Rated for up to 60A continuous current, the EC3 connector provides secure, low-resistance electrical connections and is widely used in RC cars, planes, drones, and boats.

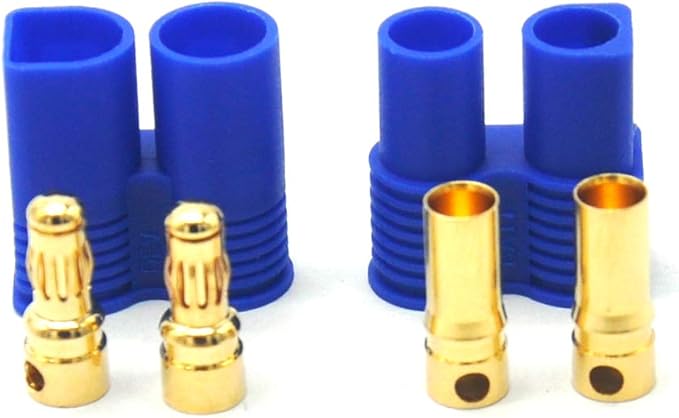

This set includes one male and one female EC3 nylon housing, along with two male and two female gold-plated bullet connectors. The gold plating ensures excellent conductivity and long-term resistance to corrosion, while the compact, polarized design prevents reverse polarity connections.
Includes (1 Set):
-
1 × EC3 plastic male housing
-
1 × EC3 plastic female housing
-
2 × 3.5mm gold-plated bullet connectors (male)
-
2 × 3.5mm gold-plated bullet connectors (female)
Specifications:
-
Connector Type: EC3
-
Bullet Size: 3.5 mm
-
Current Rating: Up to 60A continuous
-
Voltage Rating: Up to 500V
-
Material: Gold-plated copper connectors, high-temperature nylon housing
-
Applications: RC models, drones, LiPo batteries, ESCs, electric vehicles
-
Features:
-
Polarized design to prevent reverse connections
-
High-efficiency, low-resistance contacts
-
Durable and reusable
-
Compact size for tight installations
