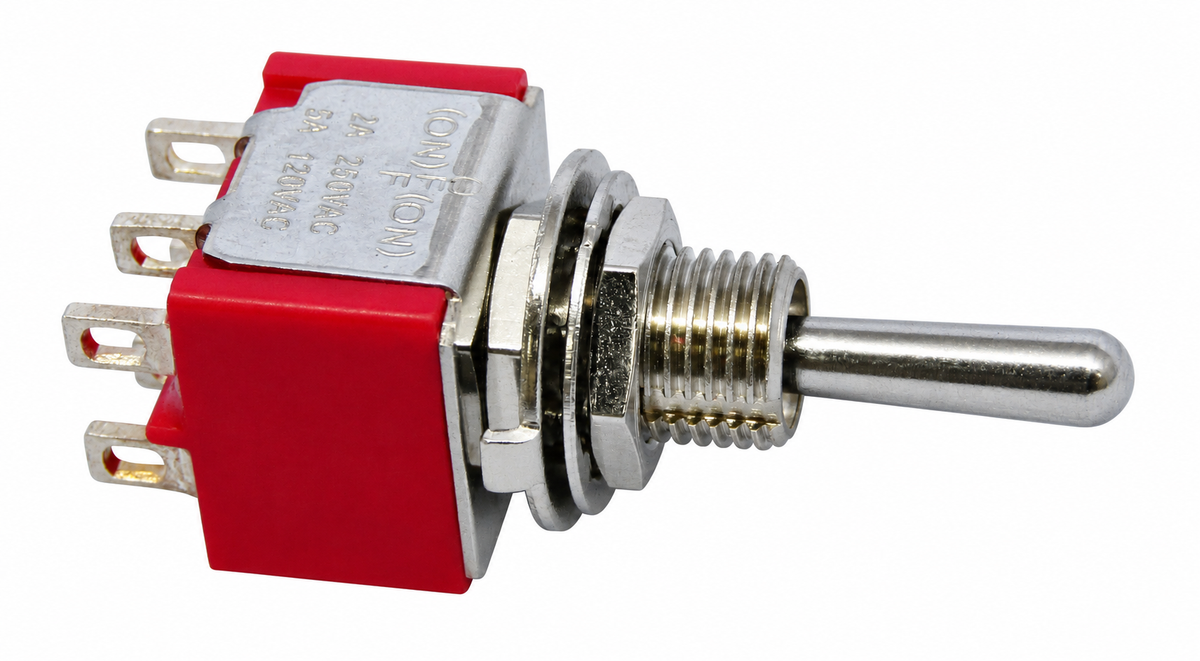

Philmore 30-10018 DPDT Momentary Miniature Toggle Switch – 5A, 120V AC
This miniature toggle switch provides momentary control in both directions and returns to the center OFF position when released. It features a metal actuator, solder terminals, and a threaded bushing for panel mounting.
| Specification |
Details |
| Brand |
Philmore |
| Model |
30-10018 |
| Switch type |
DPDT (Double Pole, Double Throw) |
| Switch positions |
3 — (ON)/OFF/(ON) |
| Operation |
Momentary in both directions; center OFF |
| Actuator |
Metal toggle |
| Current rating |
5A at 120V AC or 28V DC |
| Current rating at 250V AC |
2A |
| Mounting hole |
0.250 in (6.35 mm) |
| Contact material |
Silver-plated coin silver |
| Terminal material |
Silver-plated brass |
| Terminal type |
Solder |
