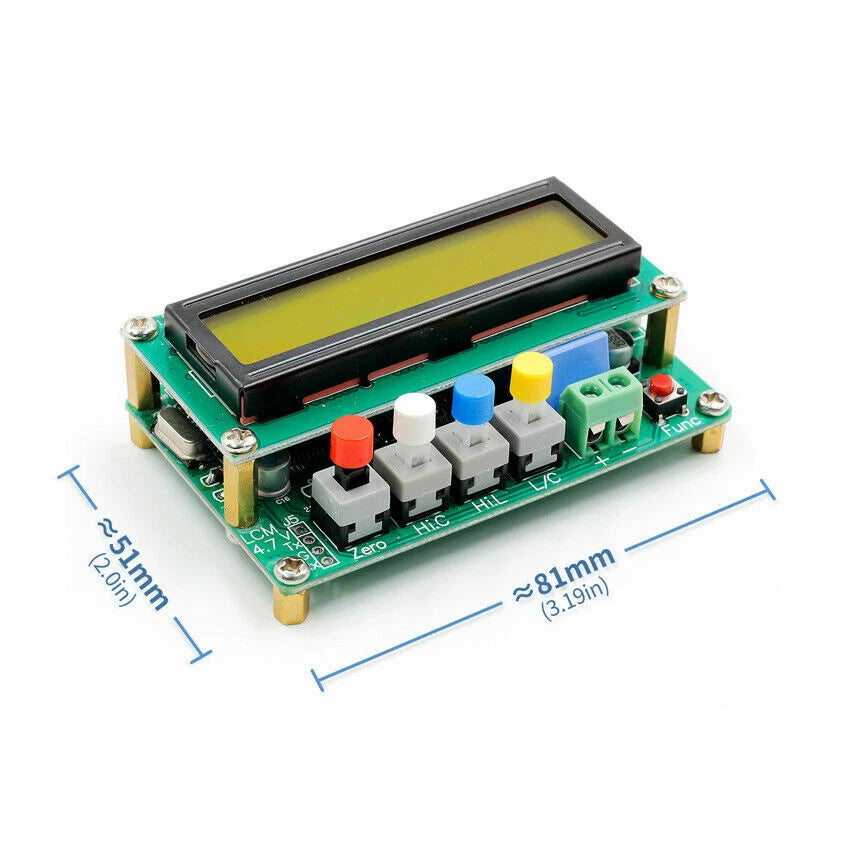

The LC100-A Digital L/C Meter is a high-precision testing instrument designed to accurately measure inductance (L) and capacitance (C) values. Featuring a clear LCD display and easy-to-use interface, this compact tester is ideal for electronics repair, component sorting, prototyping, and educational use.
With excellent stability and accuracy, the LC100-A is a must-have tool for engineers, technicians, students, and electronics enthusiasts.
⚙️ Technical Specifications
-
Model: LC100-A
-
Display: LCD Digital Screen
-

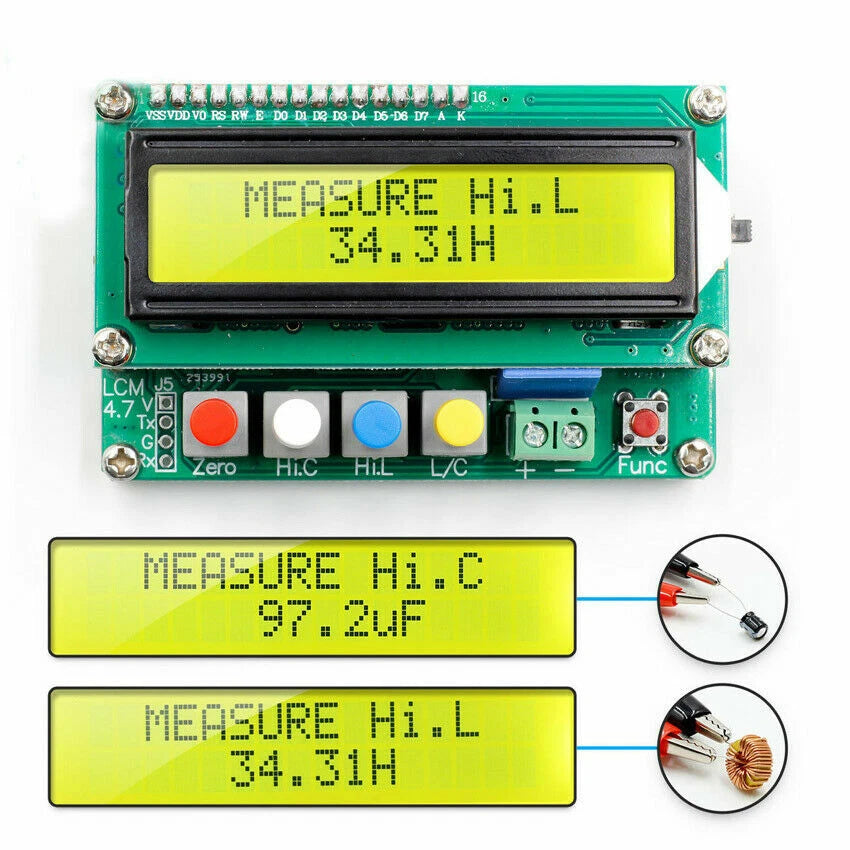

Measurement Type: Inductance (L) & Capacitance (C)
-
Capacitance Range: 0.01 pF – 100 mF
-
Inductance Range: 0.001 µH – 100 H
-
Test Frequency: Typically 500 kHz (for small values)
-

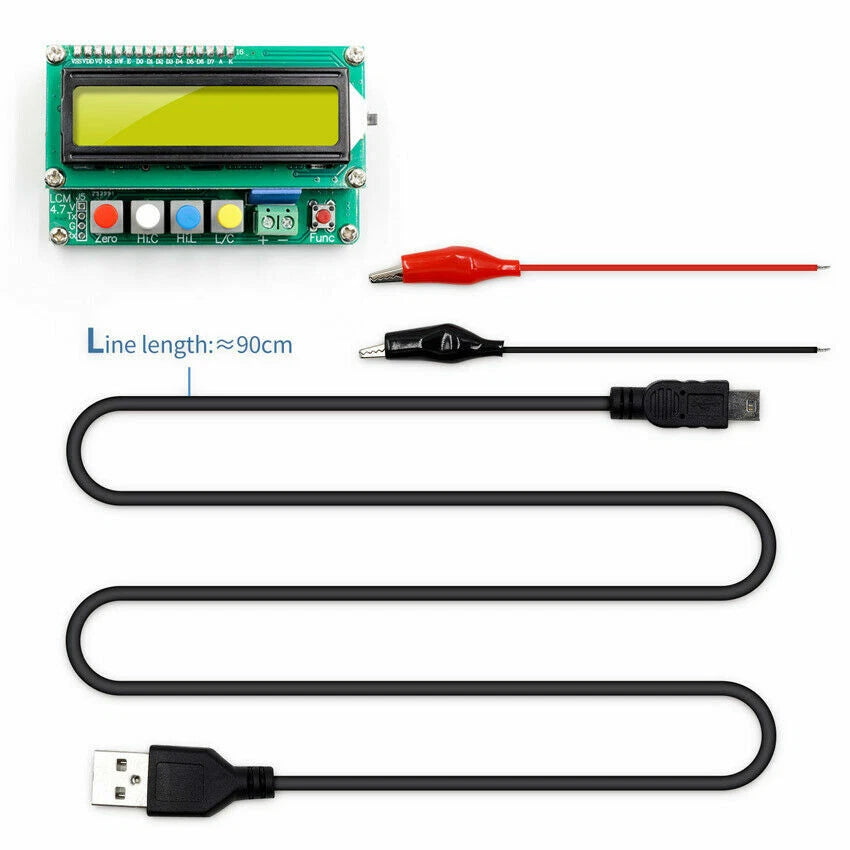

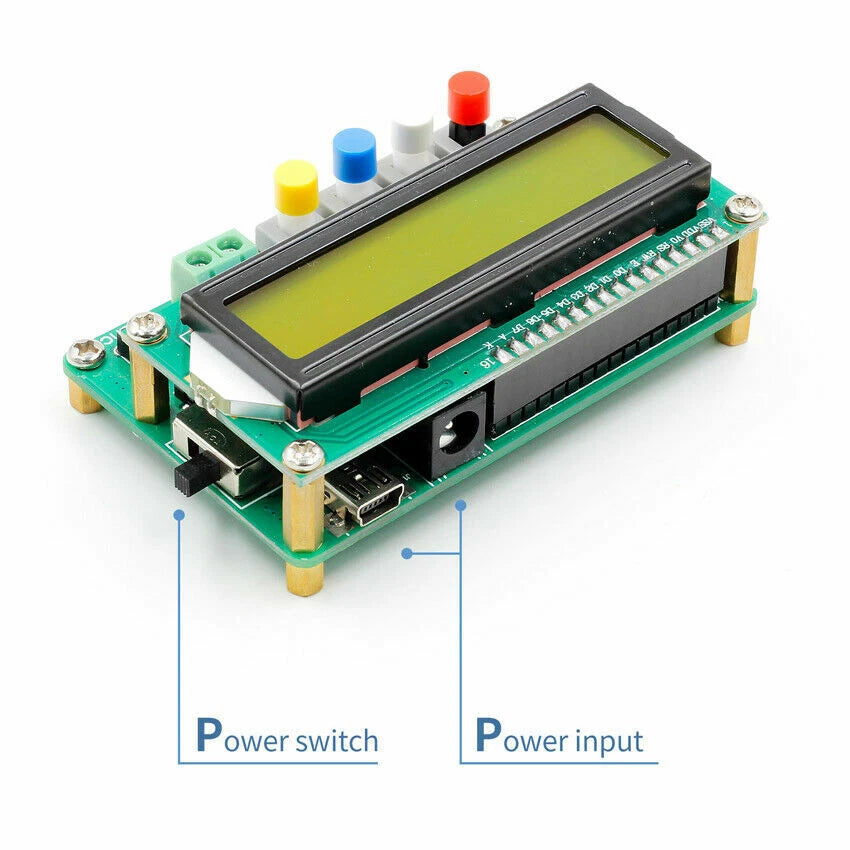

Power Supply: DC 5V (USB or external supply)
-
Auto Calibration: Supported
-
High-precision measurement design
🔌 Key Features
-
High measurement accuracy
-
Wide inductance and capacitance range
-
Clear LCD digital display
-
Compact and portable design
-
Easy zero adjustment and calibration
-
Suitable for small SMD and through-hole components
🛠️ Applications
💡 Why Choose the LC100-A?
Accurate measurement of inductors and capacitors is essential in circuit design and repair.
The LC100-A provides reliable readings at an affordable price, making it an excellent tool for workshops, classrooms, and professional benches.
⚠️ Important Notes
-
Always perform calibration before precision measurements.
-
Avoid measuring charged capacitors (discharge first).
-
Not intended for measuring components installed in live circuits.
