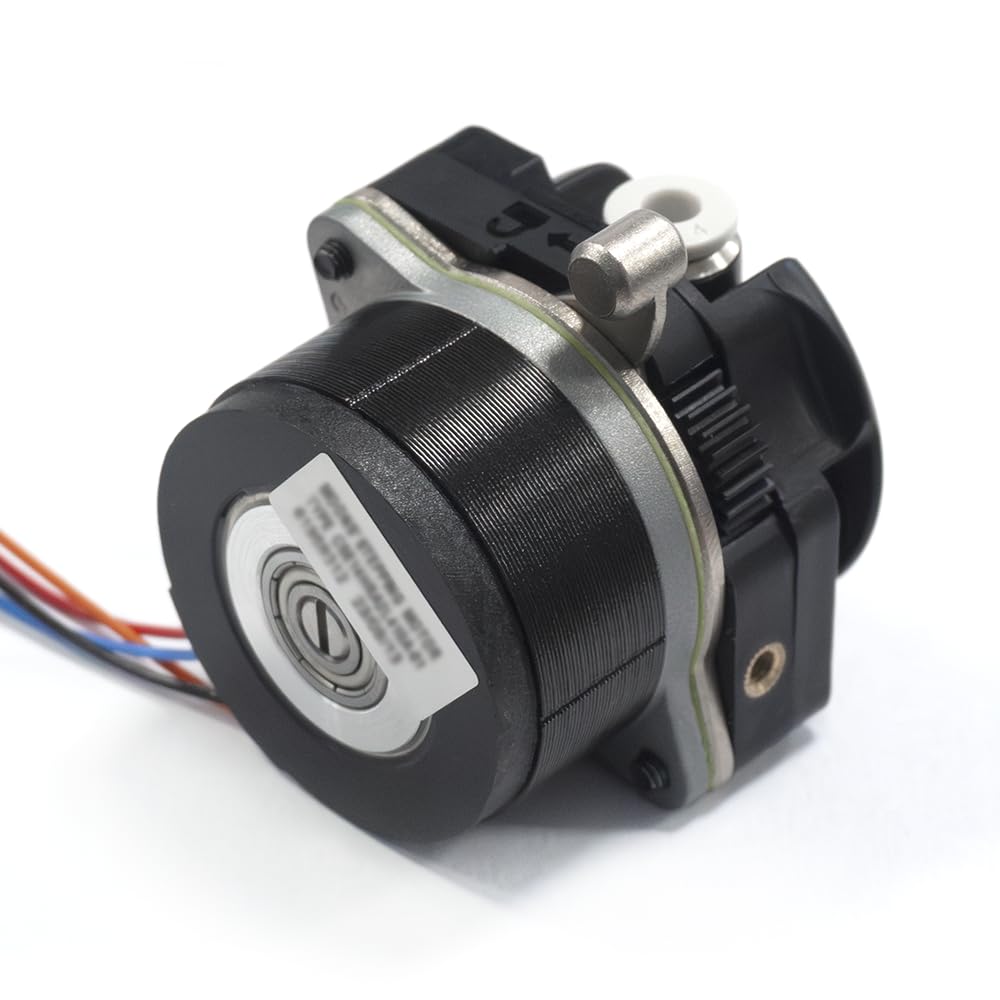

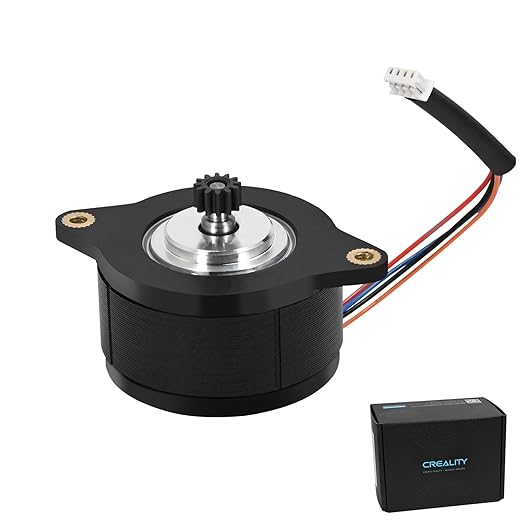

Creality Circular Stepper Motor – Extruder Motor for K1 / K1C / K1 Max / K1 SE / Ender-3 V3 Series
The Creality Circular Stepper Motor is a genuine replacement extruder motor designed to provide precise and reliable filament feeding on compatible Creality 3D printers.

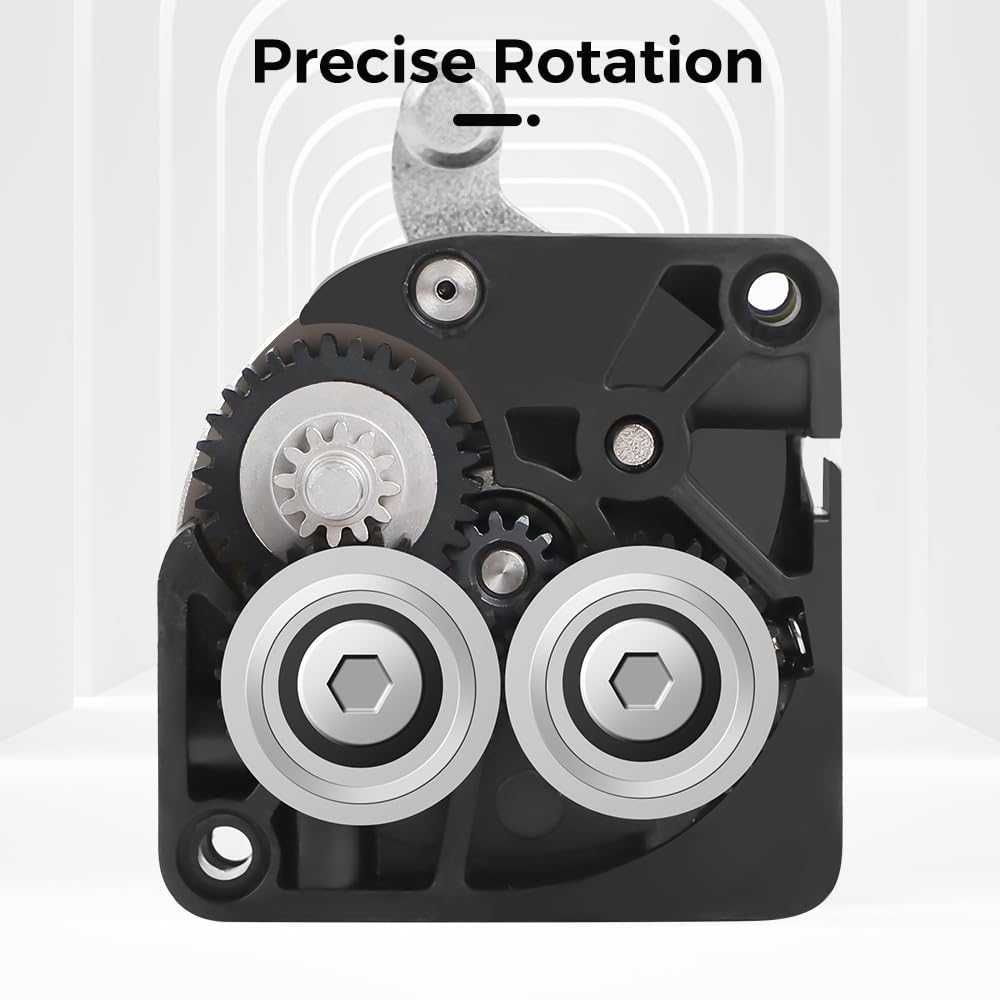

Installed in the extrusion system, this compact stepper motor drives the extruder gears responsible for feeding and retracting filament. Its precise rotational control helps maintain consistent extrusion, accurate filament delivery, and reliable printing performance.
Featuring a 1.8° step angle, 0.8A rated current, and integrated 12-tooth drive gear, the motor is designed specifically for the high-speed extrusion systems used in compatible Creality printers.
Product Function
The Circular Stepper Motor provides the mechanical power required to operate the printer's extrusion mechanism.
It helps provide:
- Precise filament feeding
- Accurate filament retraction
- Consistent extrusion
- Smooth extruder operation
- Stable filament flow during high-speed printing
- Reliable filament loading and unloading
- Accurate control of the extrusion gear system
Key Features
- Genuine Creality replacement extruder motor

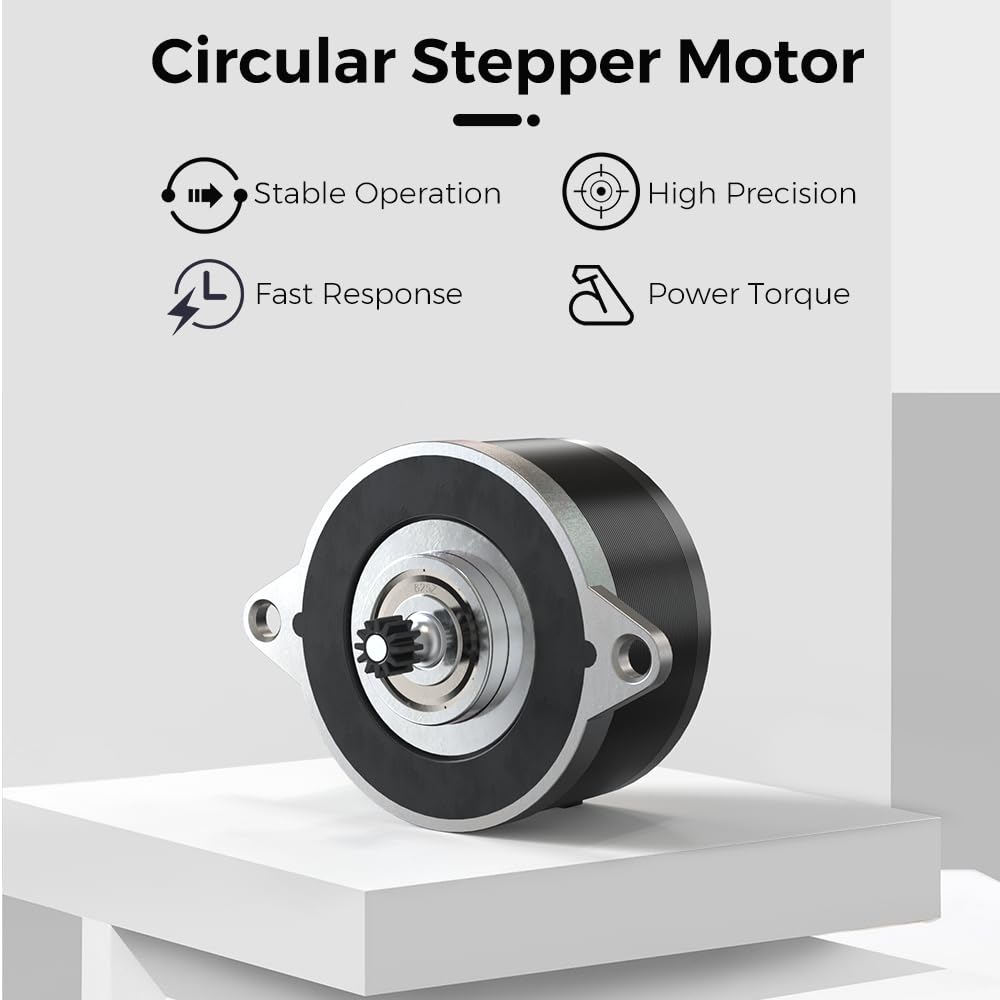

- Circular stepper motor design
-
Integrated 12-tooth drive gear
- 1.8° step angle
- 200 steps per revolution
- 0.8A rated current
- Precise rotational control
- Stable and consistent motor operation
- Designed for low vibration and noise
- Efficient heat dissipation
- Supports high-speed extrusion
- Direct replacement for the original extruder motor
- Ideal for printer maintenance and repair

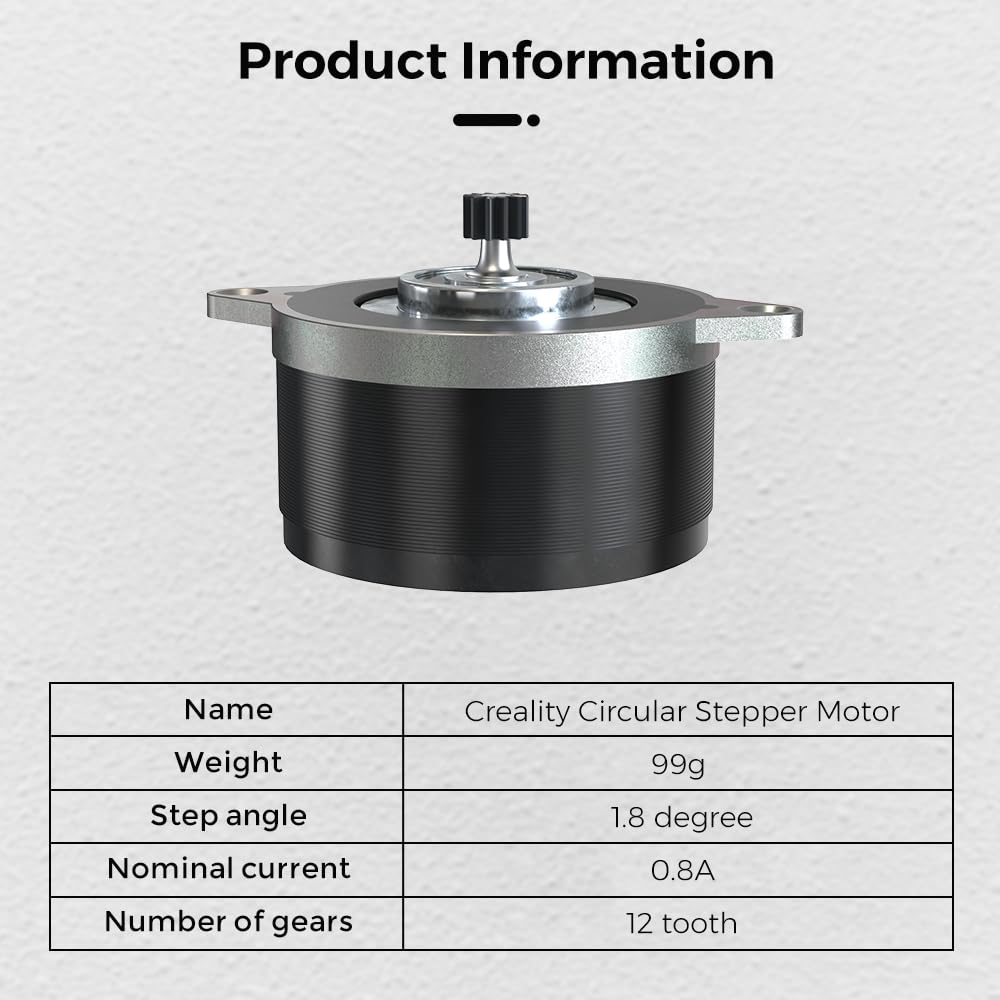

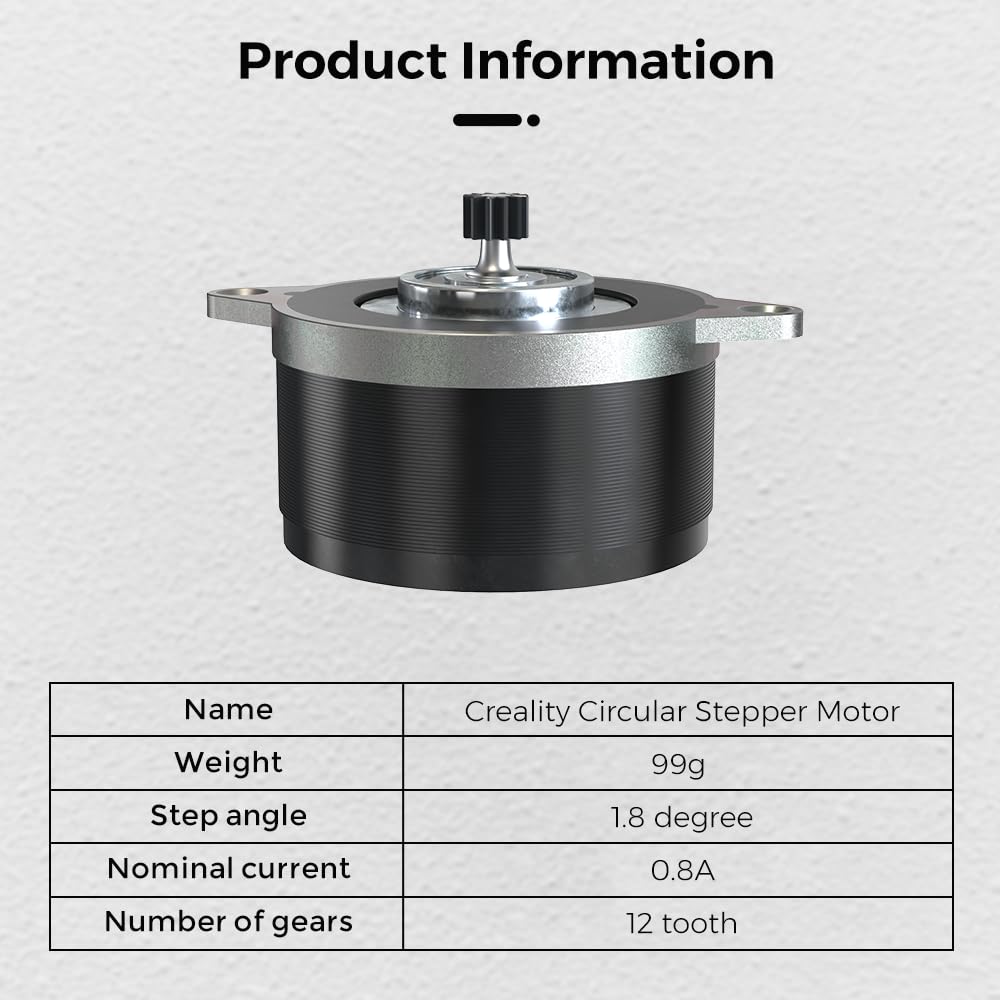

Specifications
Brand: Creality
Product Type: Circular Stepper Motor / Extruder Motor
Step Angle: 1.8°
Steps per Revolution: 200
Rated Current: 0.8A
Drive Gear: 12-Tooth
Shaft Diameter: Approx. 3 mm
Shaft Length: Approx. 6.6 mm
Function: Extruder Drive / Filament Feeding & Retraction
Installation Location: Extruder / Toolhead Assembly
Application: FDM/FFF 3D Printing
Compatible Printers
Compatible with:
- Creality K1
- Creality K1C
- Creality K1 Max
- Creality K1 SE
- Creality Ender-3 V3
- Creality Ender-3 V3 Plus
Always verify your printer model and original motor before ordering.
When Should the Extruder Motor Be Replaced?
Consider replacing the motor if you experience:
- Extruder motor not rotating
- Intermittent filament feeding
- Extruder skipping or stalling
- Abnormal motor noise
- Inconsistent extrusion
- Failure to load or unload filament
- Motor shaft or gear damage
- Damaged motor wiring
- Excessive vibration during extrusion
Before replacing the motor, inspect the extruder gears, nozzle, hotend, and filament path. A clogged nozzle or jammed extruder can prevent the motor from rotating properly even when the motor itself is functional.

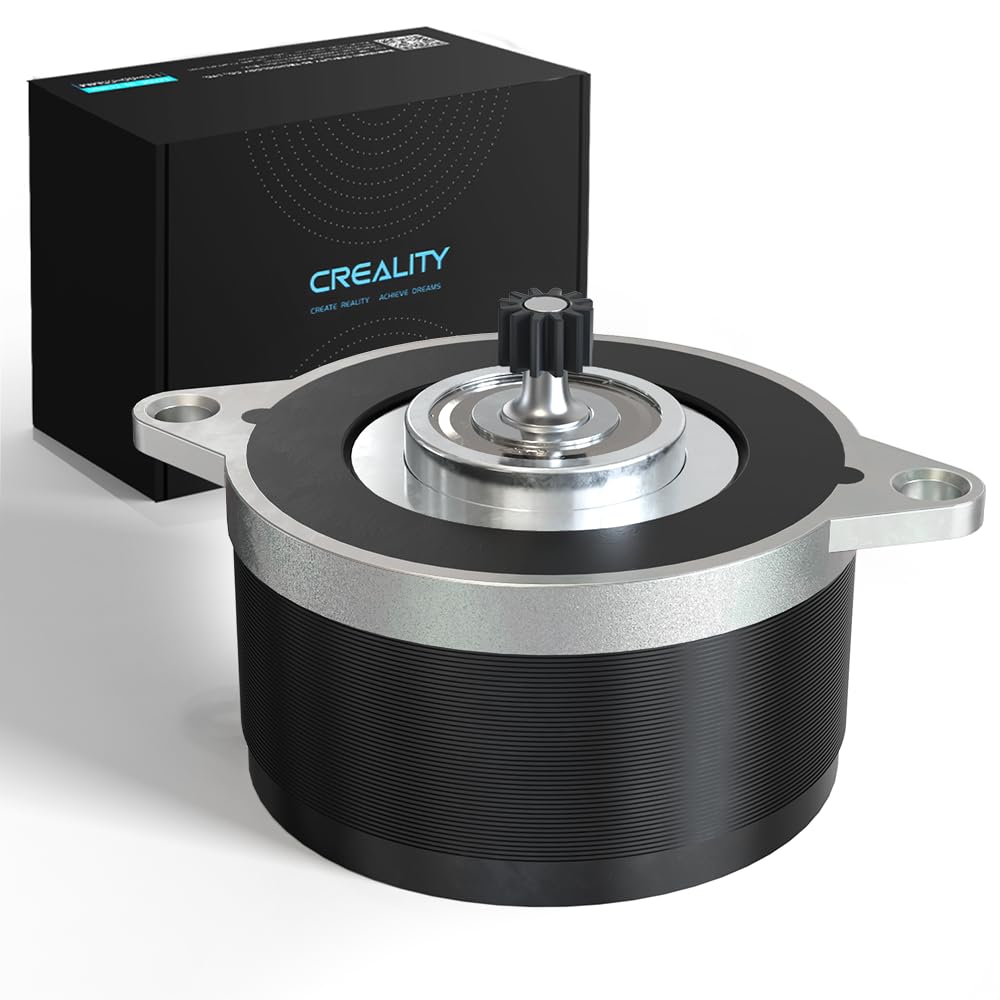

Package Includes
- 1 × Creality Circular Stepper Motor with 12-Tooth Gear
Important Notes
This product is the extruder stepper motor only. The complete extruder assembly, hotend, cables, and other toolhead components are not included.
Always power off and unplug the printer before servicing the extruder or disconnecting the motor.
After replacement, verify proper filament feeding and perform any printer calibration recommended for your model.
