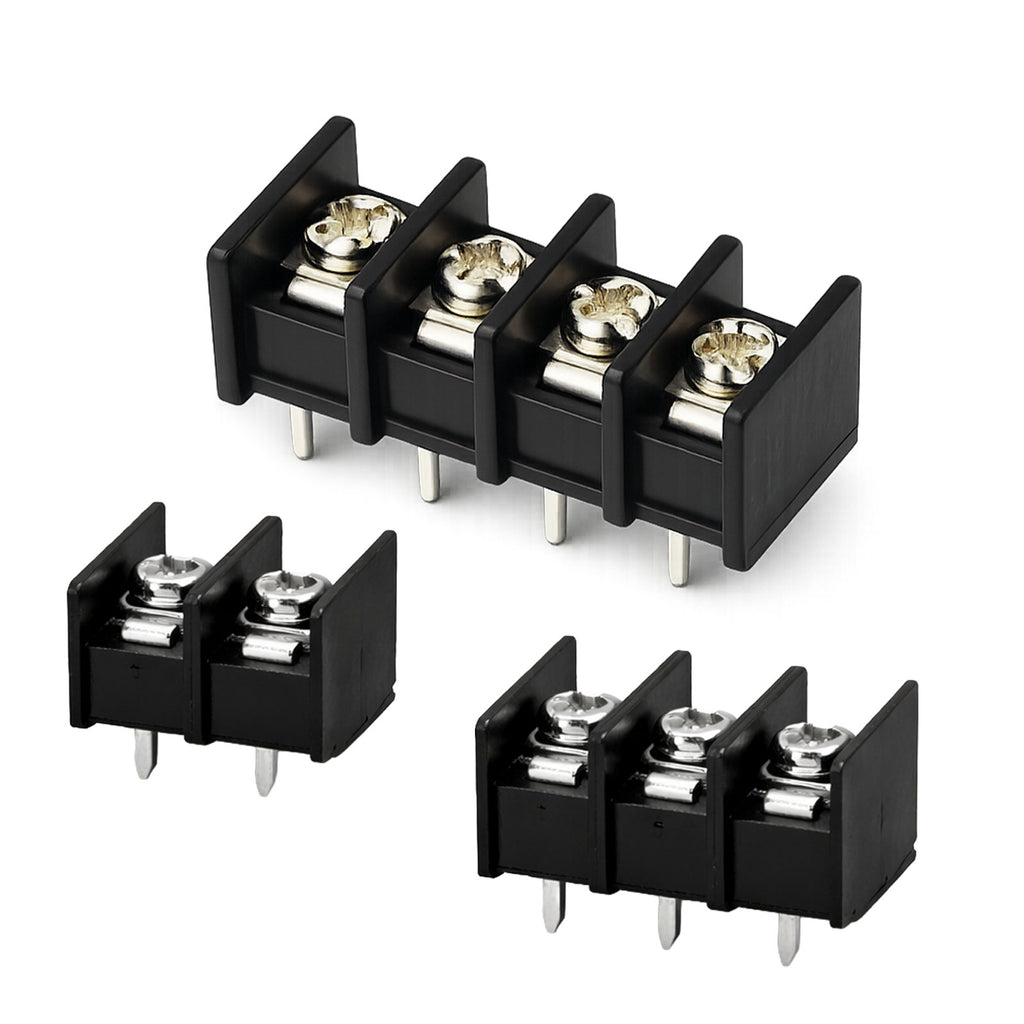

Reliable and heavy-duty barrier terminal block designed for secure wire connections in PCB applications. Featuring a 7.62mm pitch and a stitchable design, these terminal blocks can be combined to create custom multi-position configurations for a wide range of electrical projects.
Key Features
- Rated up to 300V / 20A for reliable power connections
- Available in 2P, 3P, and 4P configurations
-
7.62mm pitch compatible with standard PCB layouts
-
Stitchable design allows multiple blocks to be combined
-
Through-hole (straight pin) mounting for secure PCB installation
-
Screw clamp terminals for strong and stable wire connections
- Durable black flame-retardant plastic housing
Specifications
-
Voltage Rating: 300V
-
Current Rating: 20A
-
Pitch: 7.62 mm
-
Positions: 2P / 3P / 4P
-
Mounting Type: Through-hole (straight pin)
-
Wire Connection: Screw clamp
-
Material: Flame-retardant plastic housing
-
Color: Black
Applications
- Power supply connections
- Industrial control systems
- PCB power distribution
- DIY electronics and prototyping
Notes
- Ensure proper tightening of screws for a secure connection
- Match wire gauge to current rating for safe operation
Package Includes
- 2 × Terminal Blocks (selected configuration: 2P / 3P / 4P)
Available Options & SKUs
| Positions |
SKU |
| 2P |
PB016 |
| 3P |
PB017 |
| 4P |
PB018 |
