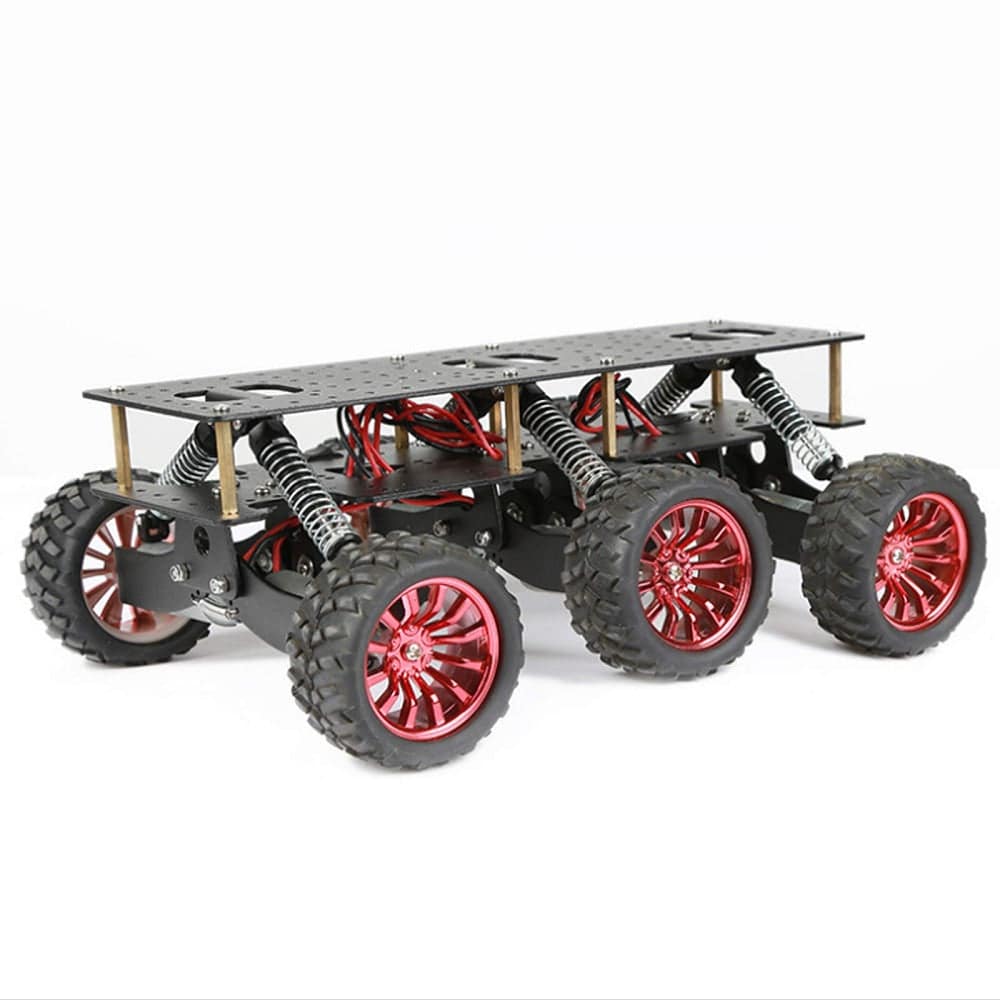

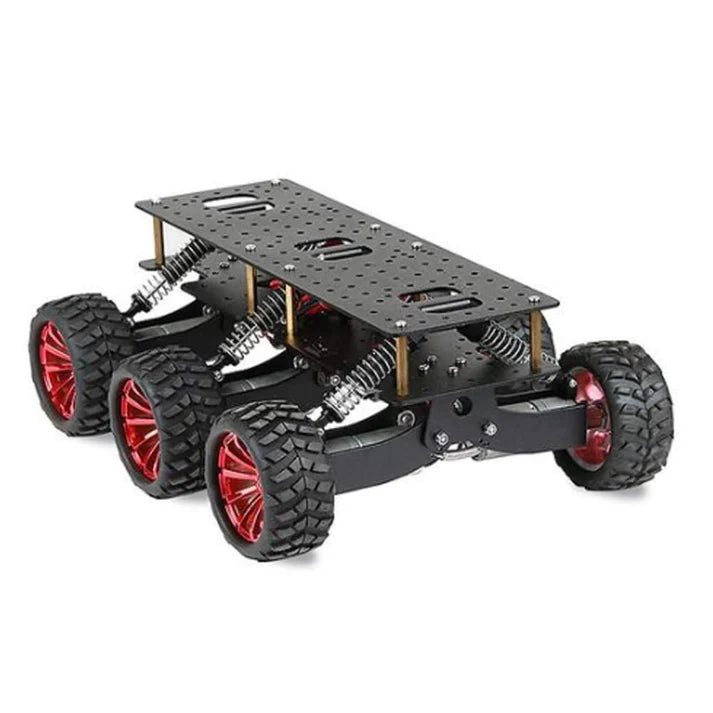

Heavy-duty 6-wheel drive robotic chassis designed for off-road, search & rescue, and robotics projects. Equipped with independent shock absorbers and high-torque motors, this platform delivers excellent stability and performance on rough terrain.
✔ Key Features
✔ 6WD (6-wheel drive) for superior traction
✔ 6 hydraulic spring shock absorbers for smooth off-road performance
✔ High-torque DC motors with metal gearboxes
✔ Adjustable suspension (soft/hard damping)
✔ Strong aluminum chassis structure
✔ Expandable platform for Arduino, Raspberry Pi, and robotics systems
✔ Excellent stability on uneven surfaces
🔹 Specifications
🔹 Operating Voltage: 12V
🔹 Maximum Load: Up to 6 kg
🔹 Motor Speed: ~500 RPM (gear reduced)
🔹 Motor Original Speed: 17000 RPM
🔹 Rated Current: 350mA × 6 motors
🔹 Torque: ~5 kg/cm
🔹 Drive Type: Differential drive (left/right control)
➤ Applications
➤ Robotics and autonomous vehicles
➤ Search & rescue robot platforms
➤ Off-road RC and smart car projects
➤ Arduino / Raspberry Pi development
➤ STEM education and prototyping
⚠ Notes
⚠ Requires assembly (DIY kit)
⚠ Motor driver and controller not included
⚠ Not waterproof – avoid wet environments
📦 Package Includes
✔ 1 × 6WD Shock-Absorbing Robot Chassis Kit
✔ 6 × DC Motors
✔ 6 × Wheels
✔ 6 × Shock Absorbers
✔ Mounting hardware
