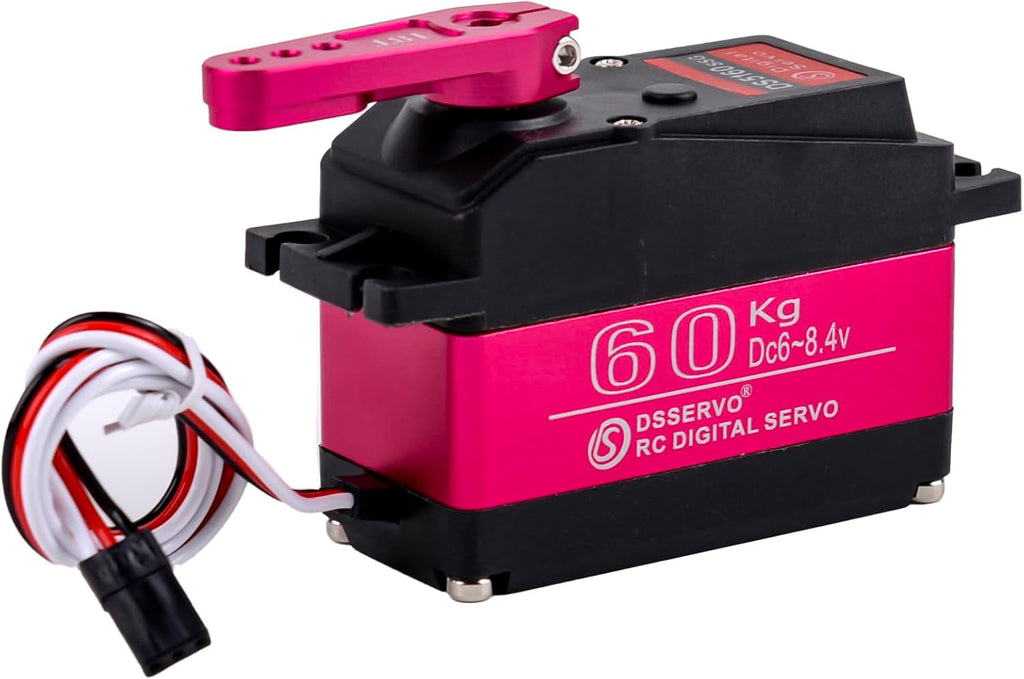

Heavy-duty digital servo designed for high-performance RC vehicles and robotics applications. The DS5160 delivers extreme torque, precision control, and durability, making it ideal for 1/5 scale crawler trucks, robotic arms, and demanding steering systems.
✔ Key Features
✔ High torque up to 60–70 kg·cm for powerful steering
✔ Waterproof design for outdoor and off-road use

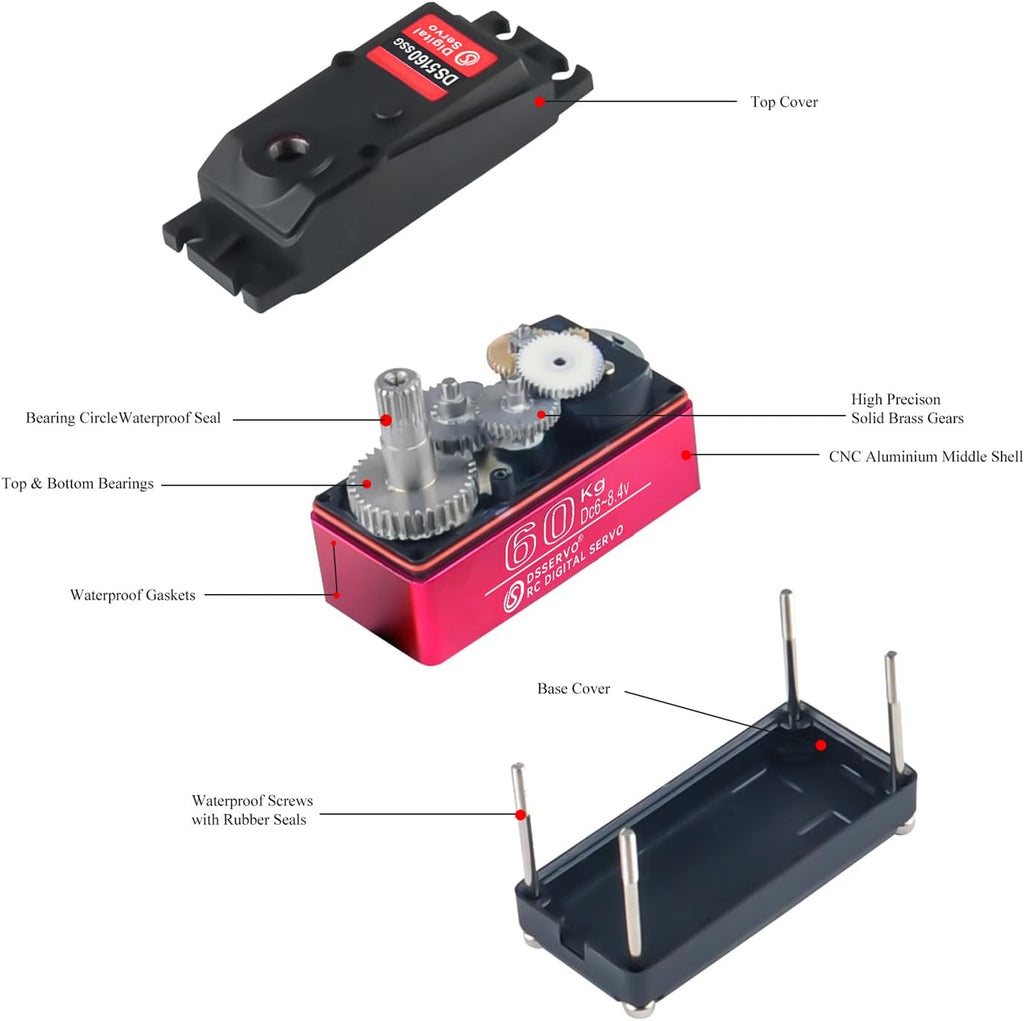

✔ Durable full metal gear system for long life
✔ High-voltage operation (6V – 8.4V)
✔ Fast response and precise digital control
✔ Compatible with standard RC receivers (Futaba / JR)
✔ Ideal for large-scale RC (1/5) and robotics
🔹 Specifications
🔹 Model: DS5160
🔹 Torque:
• 58 kg·cm @ 6V
• 65 kg·cm @ 7.4V
• 70 kg·cm @ 8.4V
🔹 Speed:
• 0.17 sec/60° @ 6V
• 0.13 sec/60° @ 8.4V
🔹 Operating Voltage: 6V – 8.4V DC
🔹 Control Signal: PWM (500–2500 μs)
🔹 Gear Type: Metal (dual ball bearing)
🔹 Rotation Angle: 90° / 180° / 270° (model dependent)
🔹 Weight: ~160 g
➤ Applications
➤ 1/5 scale RC crawler trucks (Baja, Redcat, etc.)
➤ RC cars, boats, and robotics
➤ Robotic arms and automation systems
➤ Heavy-duty steering and control systems
⚠ Notes
⚠ Requires high current power supply or BEC
⚠ Not suitable for microcontroller direct power (use external power)
⚠ Confirm rotation angle (90° / 180° / 270°) before purchase
⚠ Waterproof ≠ submersible for long periods
📦 Package Includes
✔ 1 × DS5160 60KG Digital Servo
✔ 1 × Metal Servo Arm (18T)
✔ Mounting hardware
