Electronic Scale Development Board Kit – 5KG Digital Weighing Module with 1602 LCD Display

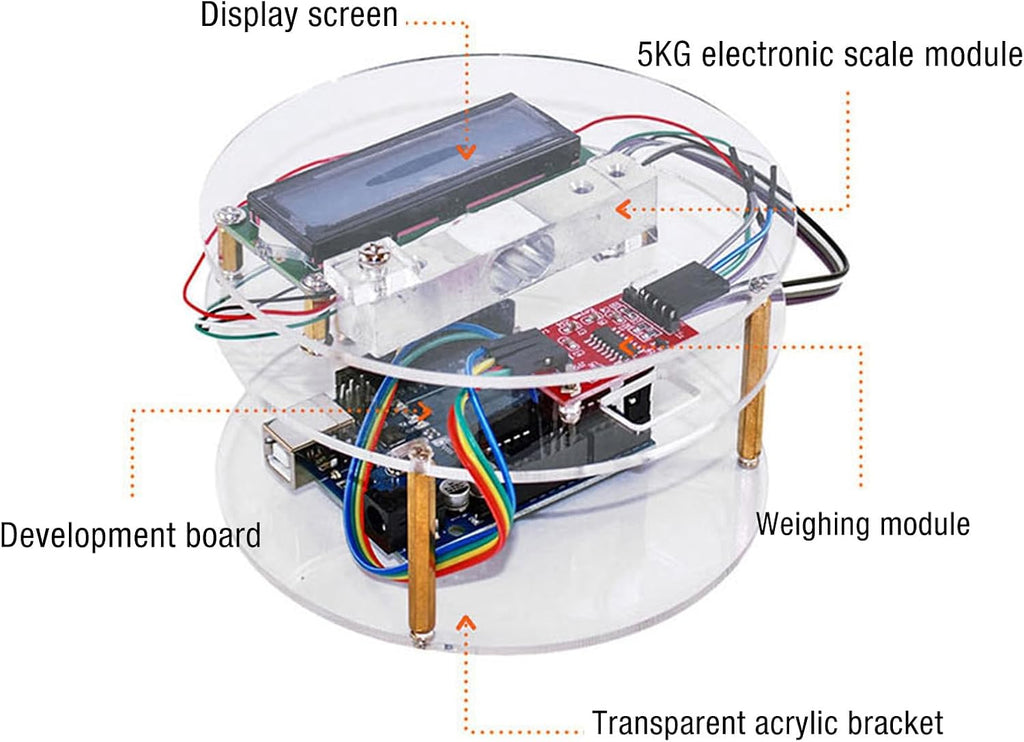

The Electronic Scale Development Board Kit is a complete DIY solution for building a high-accuracy digital weighing system. Designed for learning and prototyping, this kit combines a 5KG load cell, HX711 amplifier module, and 1602 LCD display to create a fully functional electronic scale.
Ideal for students, hobbyists, and engineers, it provides hands-on experience with sensor integration, data processing, and microcontroller programming.
Key Features:
-
High-precision 5KG load cell – accurate and stable weight measurement
-
HX711 amplifier module – enhances signal accuracy for precise readings
-
1602 LCD display – clear real-time weight display
-
DIY assembly kit – learn electronics and system integration
-
Programmable platform – compatible with Arduino and similar boards
- Compact and portable design
How It Works:
The load cell sensor detects weight changes and sends a signal to the HX711 module, which amplifies the signal and transmits it to a microcontroller. The processed data is then displayed on the 1602 LCD screen.
Applications:
- DIY digital weighing scale projects
- Educational STEM and programming kits
- Arduino and microcontroller learning
- Laboratory and small measurement tasks
- Smart IoT weighing systems
Specifications:
- Max Capacity: 5KG
- Sensor Type: Load Cell
- Amplifier: HX711 module
- Display: 1602 LCD
- Operating Voltage: Typically 5V
- Input Voltage: 7–12V (depending on board)
- Accuracy: High precision (suitable for small measurements)

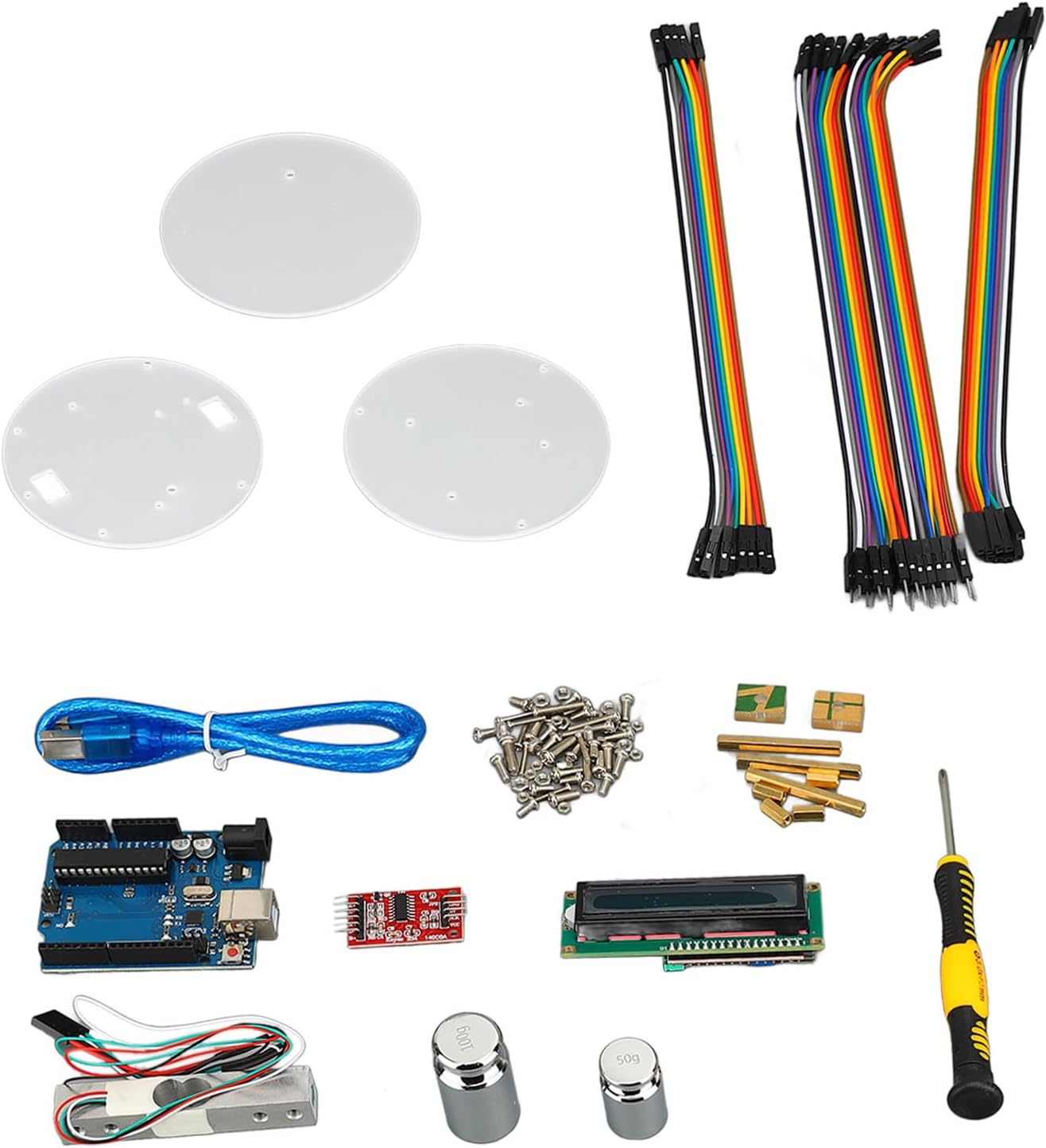

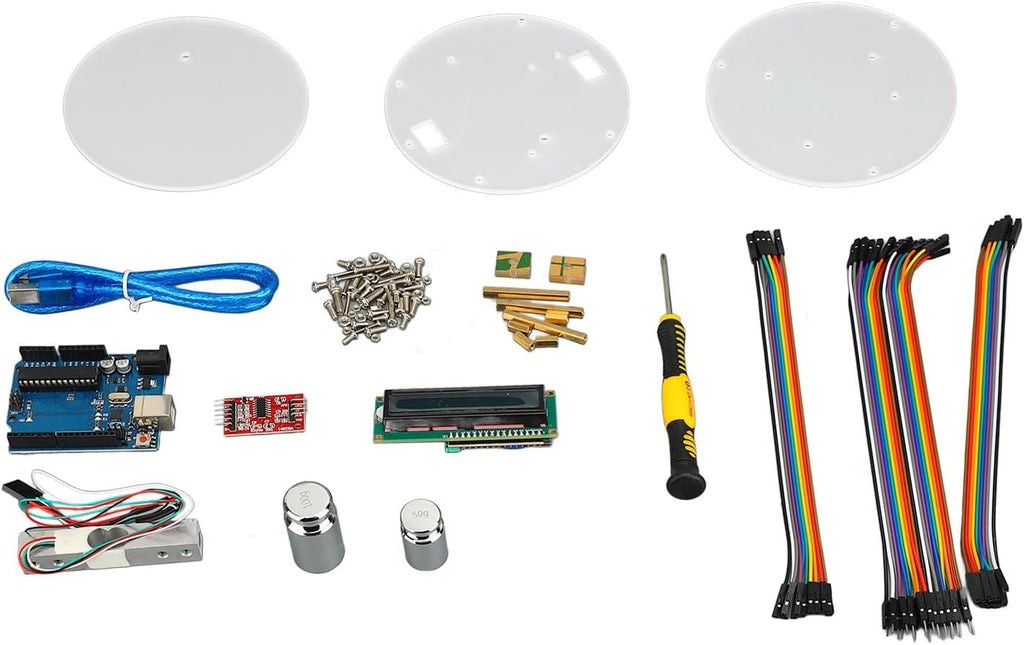

Package Includes:

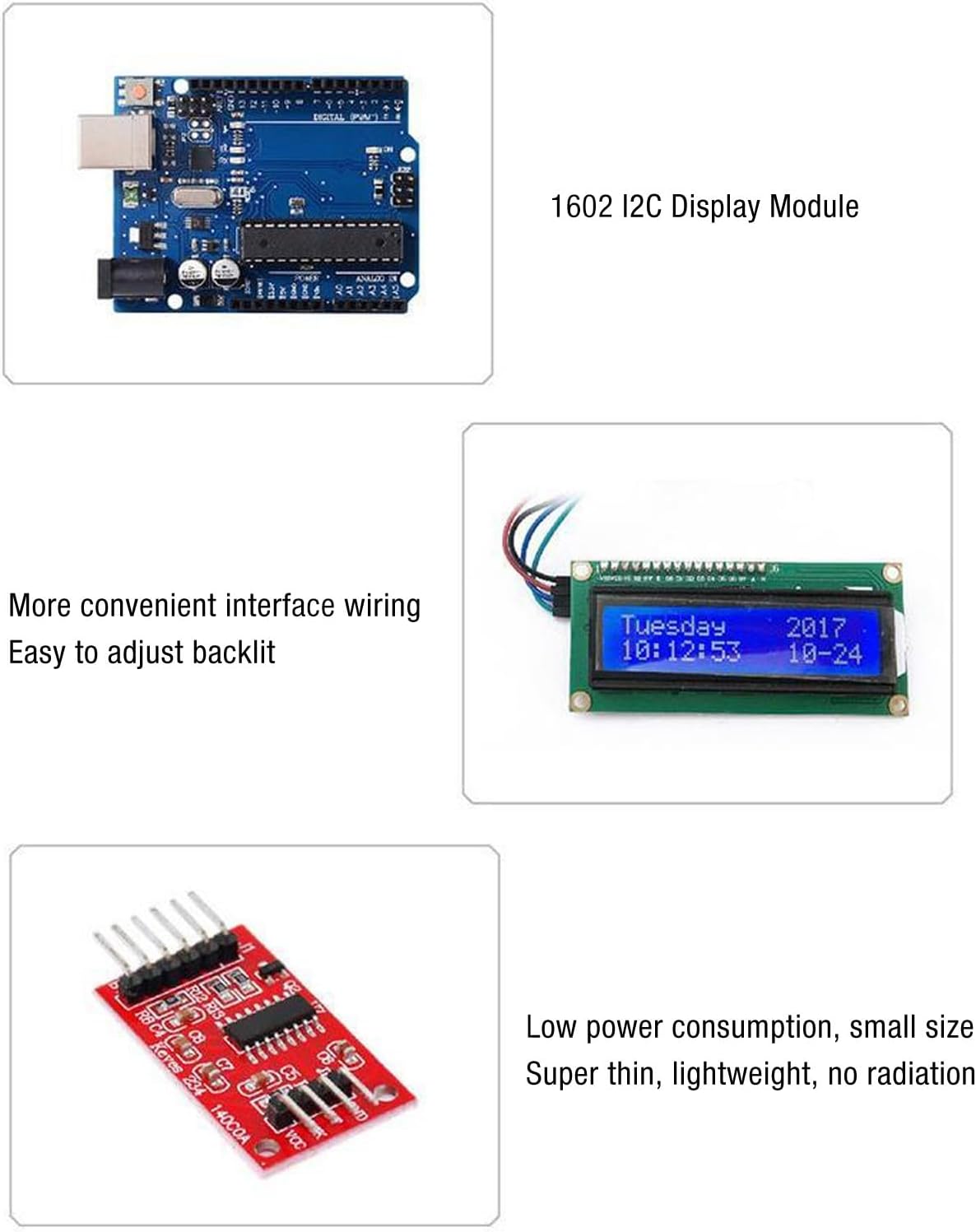

- 1 × Main Control Board (Arduino-compatible)
- 1 × 1602 LCD Display

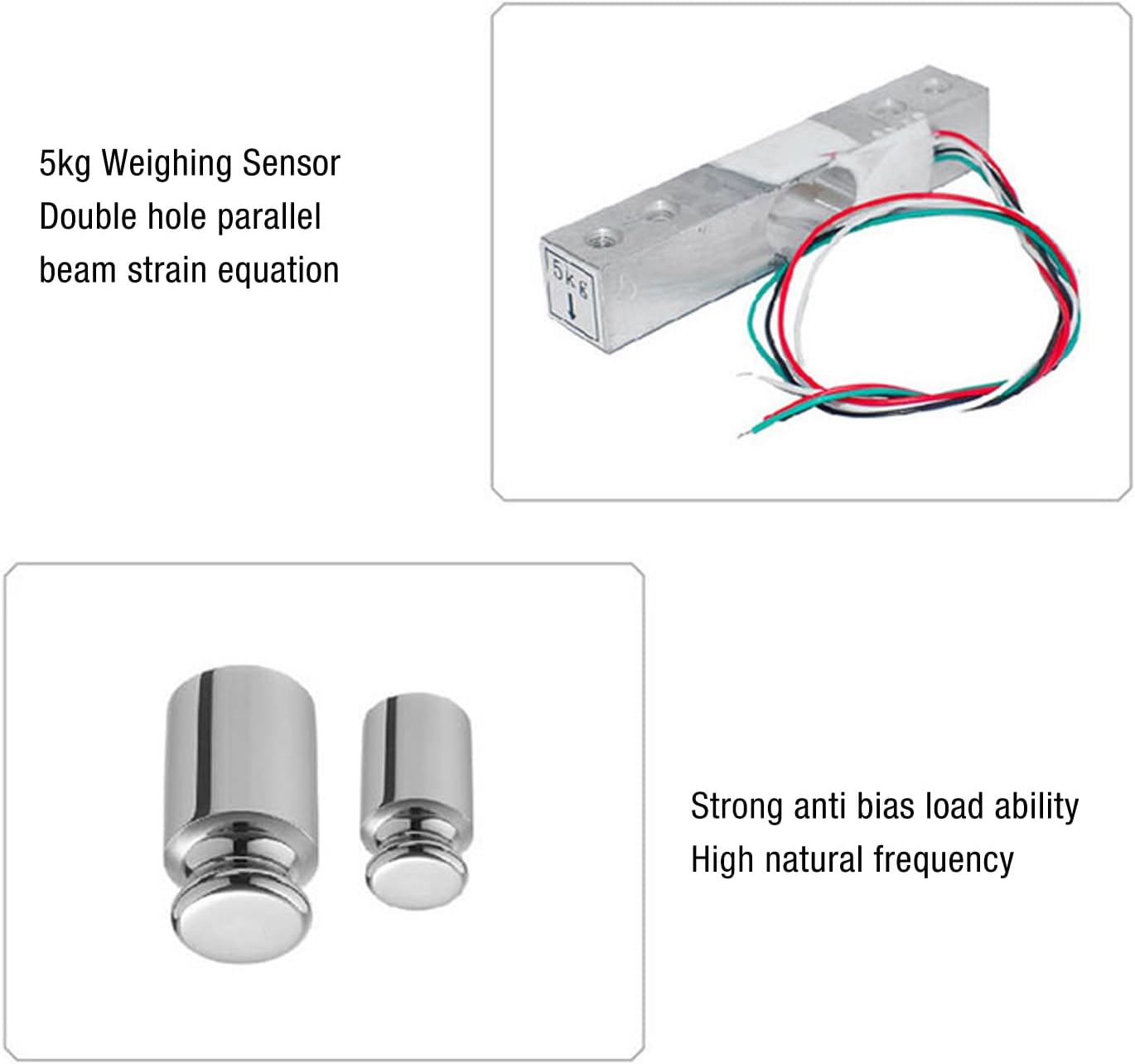

- 1 × 5KG Load Cell Sensor
- 1 × HX711 Amplifier Module

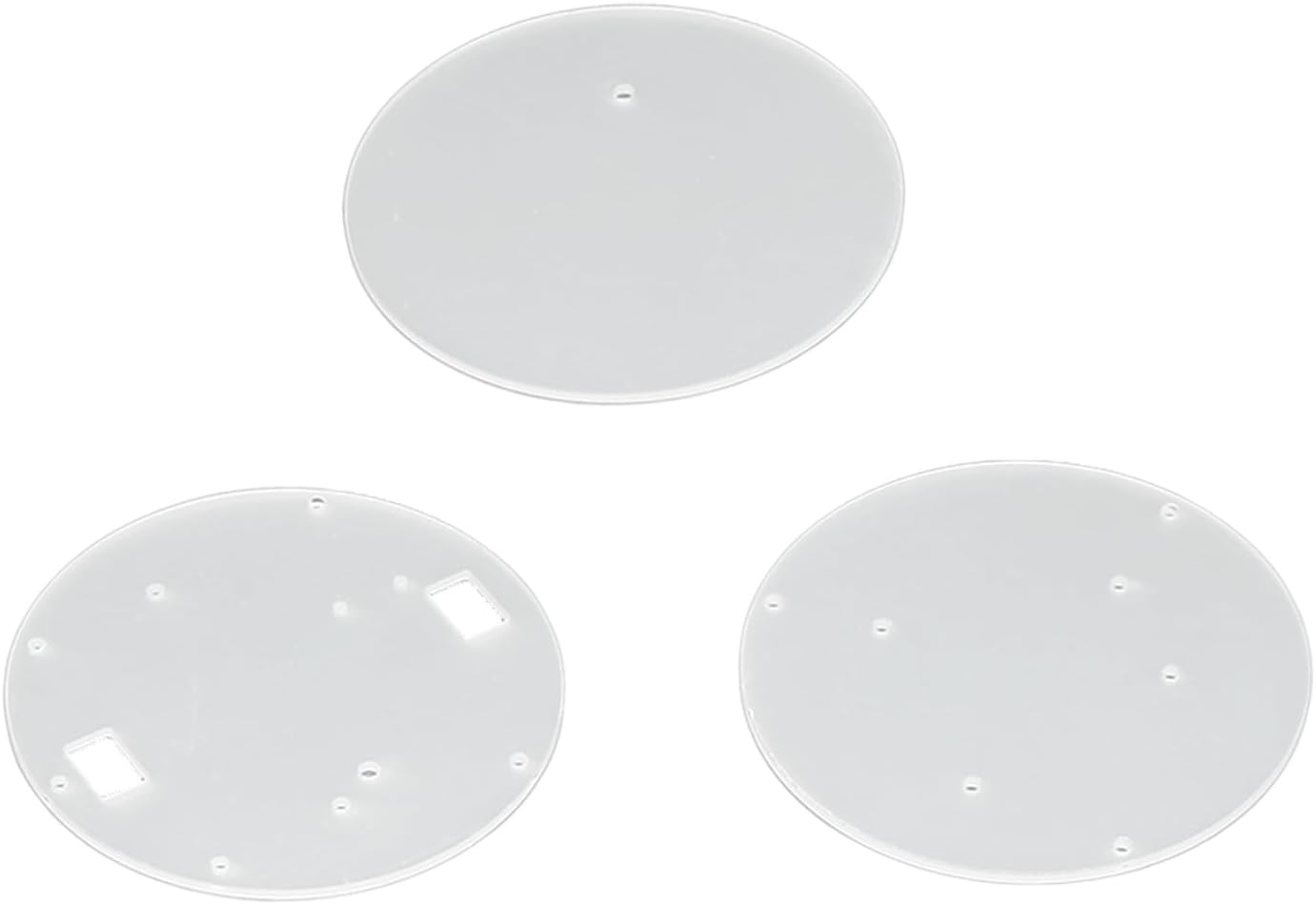

- Acrylic mounting plates and hardware

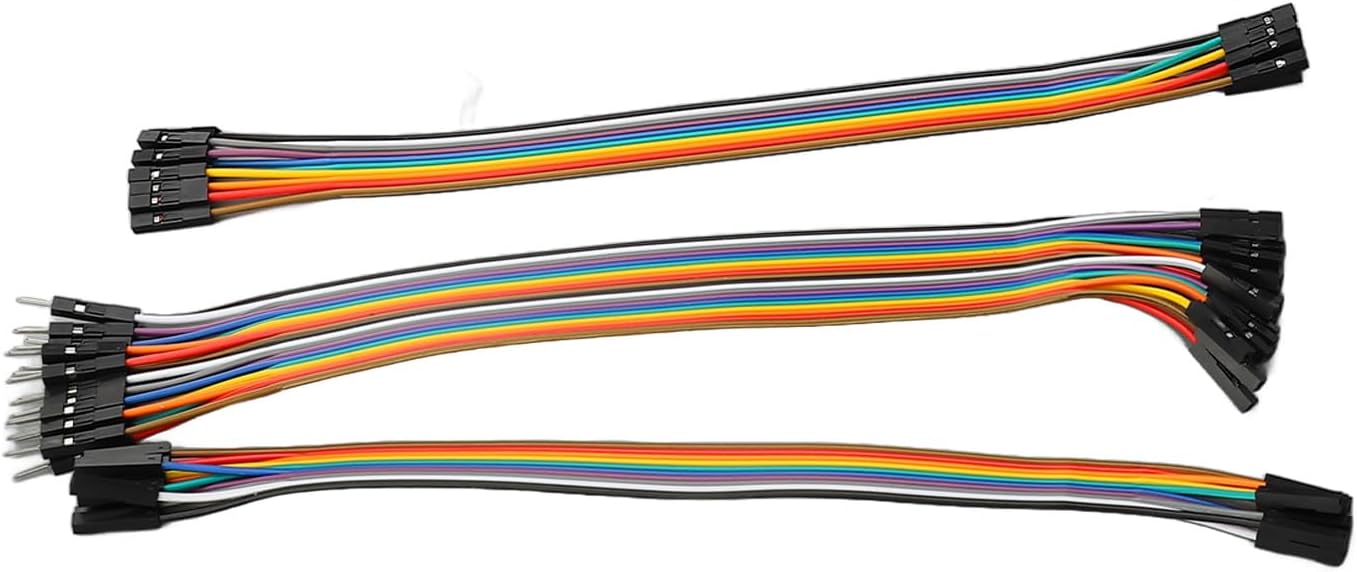

- Jumper wires and USB cable
- Calibration weights (varies by kit)
⚠️ Important Notes:
- Assembly required (DIY kit)
- Programming required for full functionality
- Calibration needed for accurate measurements
