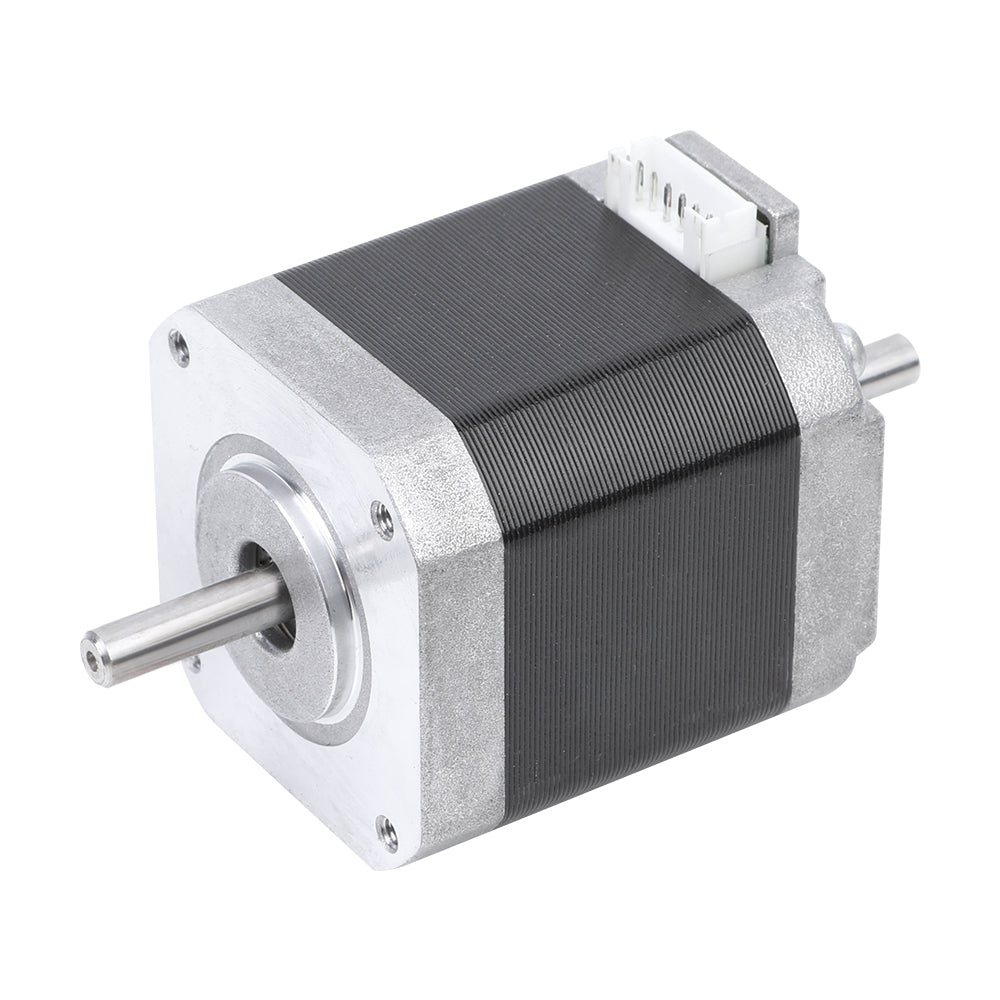

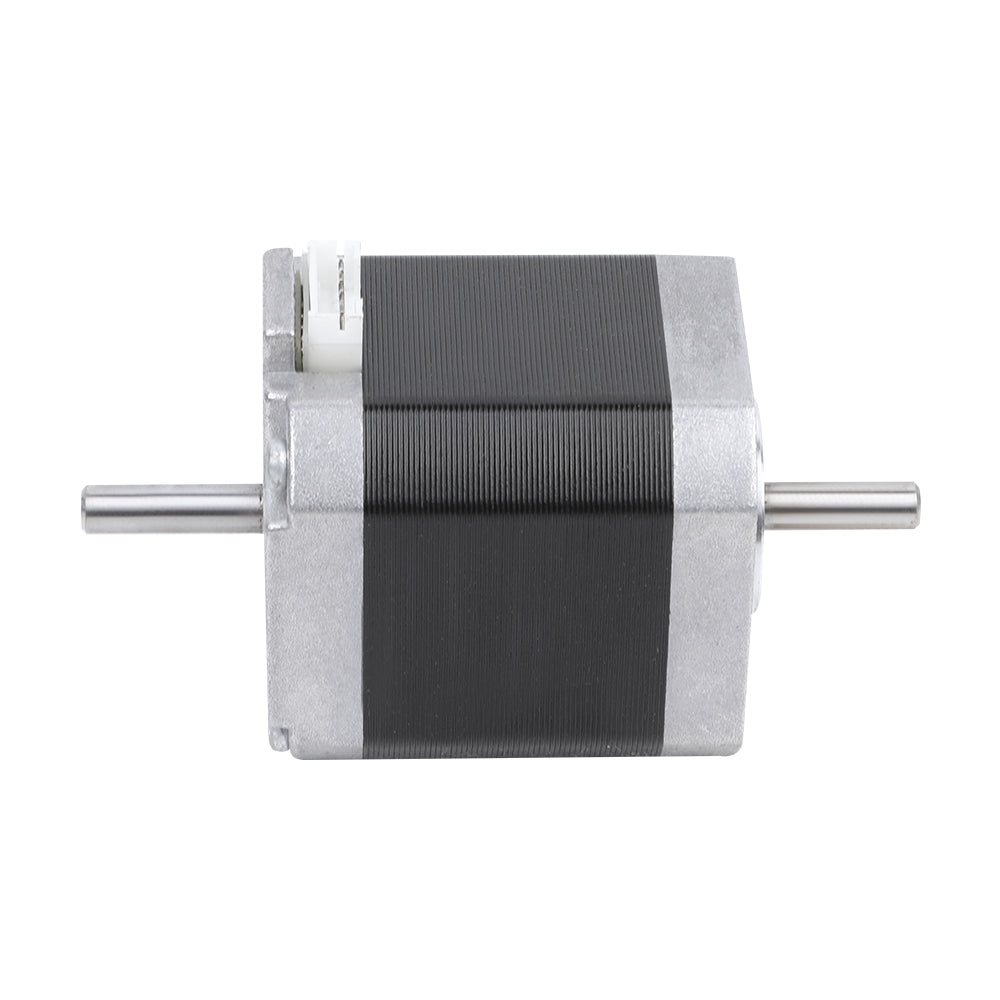

Upgrade your machine's performance with this 42-48 Bi-Axial Stepper Motor. With its compact NEMA 17 form factor and extended 48 mm body, this motor delivers higher torque and smoother motion—ideal for 3D printers, CNC machines, and automation projects.
🔧 Key Features:
-
NEMA 17 compatible (42 × 42 mm mounting)
-
48 mm body length for increased torque
-
Bi-polar 2-phase motor with 1.8° step angle
-
High torque output – up to 0.44 Nm (depending on model)
-
4-wire configuration (A+, A−, B+, B−) compatible with most stepper drivers
-
Precision control for smooth and reliable motion
⚙️ Specifications:
-
Step Angle: 1.8°
-
Holding Torque: up to 0.44 Nm (4.4 kg·cm / 60 oz·in)
-
Rated Current: 1.5–1.68 A per phase (model-dependent)
-
Resistance: 1.2–1.8 Ω
-
Shaft Diameter: 5 mm
-
Shaft Type: D-shaft or round (specify at checkout)
-
Motor Length: 48 mm
-
Weight: ~350–380 g
✅ Applications:
-
X, Y, Z-axis drive for 3D printers
-
CNC linear motion systems
-
Robotics and automation projects
-
Replacements or upgrades for Creality, Ender, or similar machines
