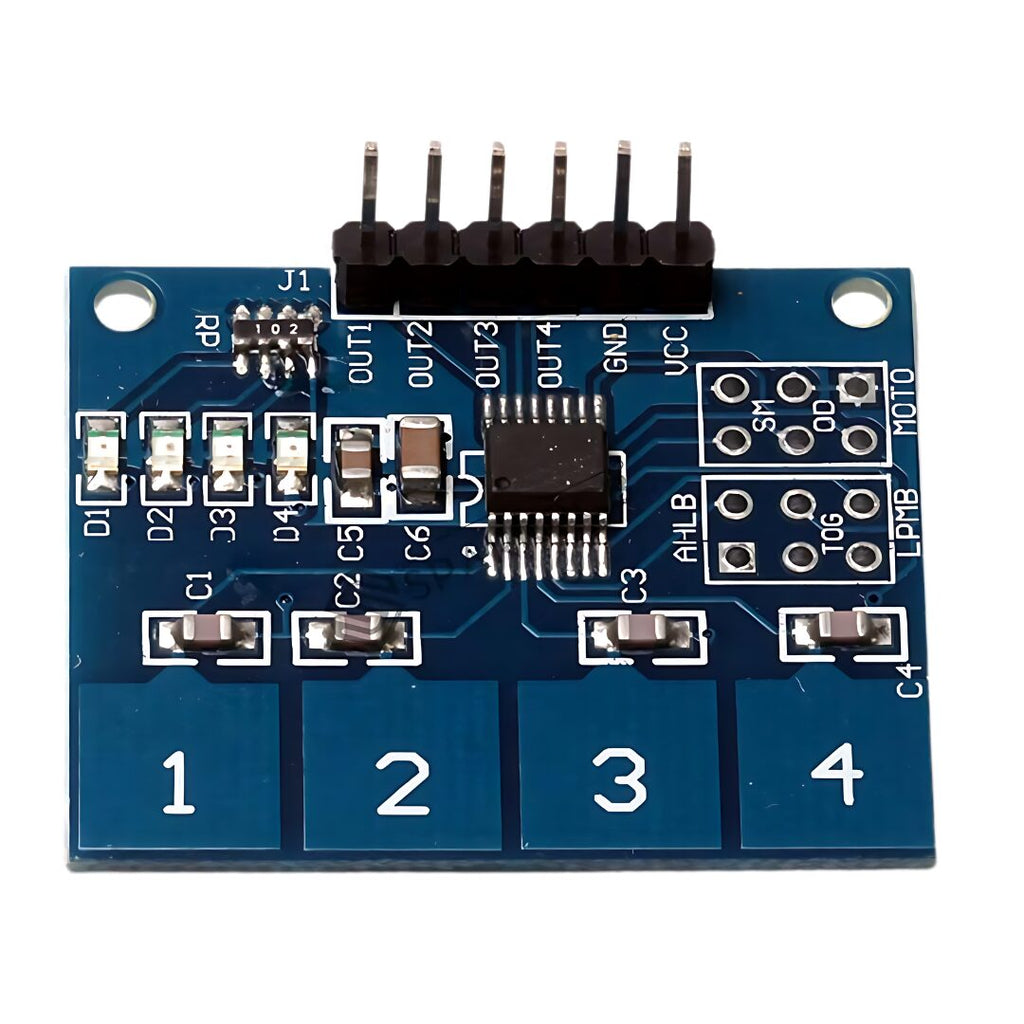

This module provides four independent capacitive touch pads, each giving a digital HIGH/LOW output, making it ideal for microcontroller projects.
🔹 Specifications
-
Number of Touch Pads: 4 (independent channels)
-
Detection Method: Capacitive touch sensing
-
Operating Voltage: 2V – 5.5V DC
-
Operating Current: < 10 µA (very low power)
-
Response Time: < 60 ms per pad
-
Operating Temperature: –40°C to +85°C
-
Output Type: Digital signal (HIGH when touched, LOW when idle)
-
Mounting: 4 mounting holes
-
Dimensions: 35 mm × 29 mm × 10 mm
-
Weight: 3 g
🔹 Compatibility
Works directly with:
-
Arduino boards
-
Raspberry Pi (3.3V logic compatible)
-
ESP8266 / ESP32
-
STM32 and other 3.3V–5V microcontrollers
No analog reading required — each pad outputs a simple digital signal.
🔹 Key Advantages
✔ No mechanical wear (no moving parts)
✔ Can be mounted behind plastic, glass, acrylic, or thin wood
✔ Ultra-low standby power
✔ Fast response time
✔ Easy direct GPIO interface
🔹 Typical Applications
-
Touch control panels
-
DIY smart home switches
-
Hidden buttons behind acrylic/glass
-
Interactive projects
-
Appliance front panels
