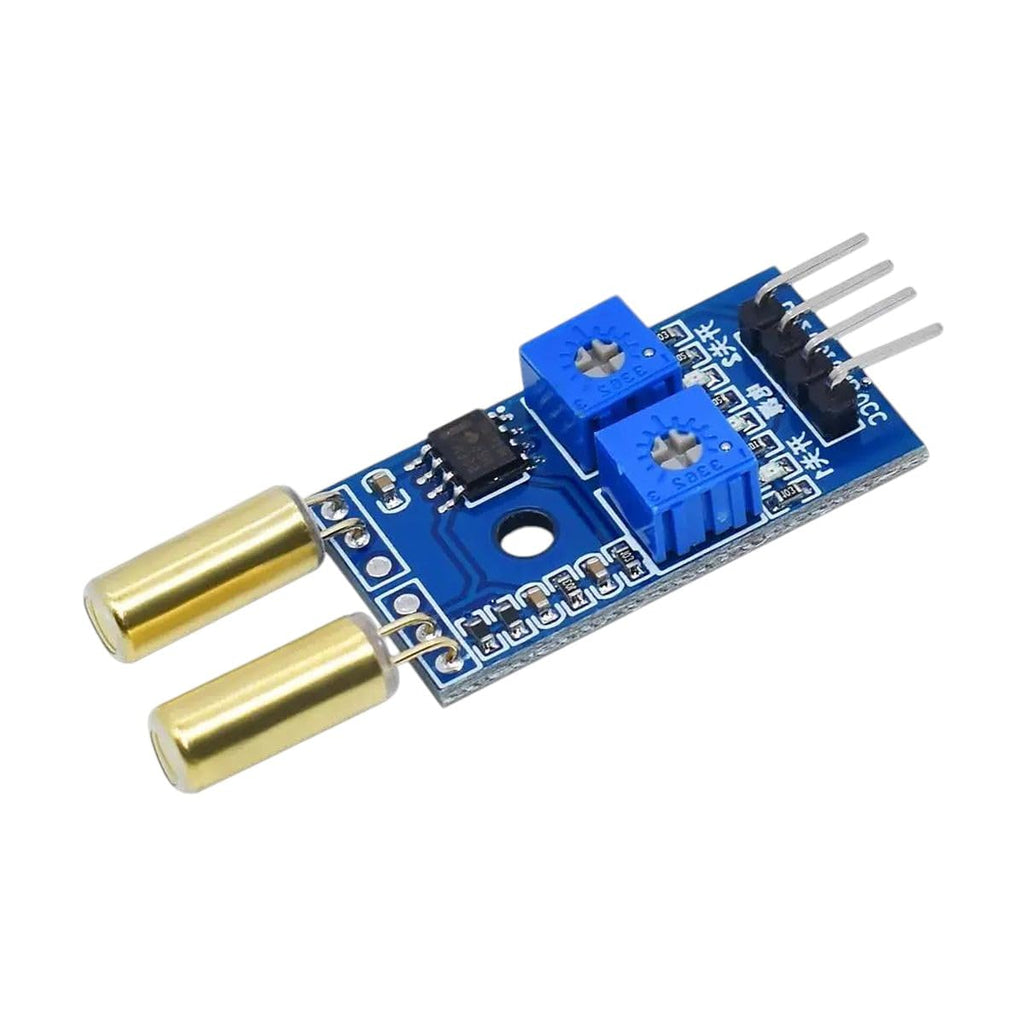

The 2-Channel Tilt Sensor Module is a ready-to-use tilt detection solution that requires only a power supply to operate. Once powered, it can be easily attached to any object to detect changes in tilt angle. The module provides a digital output signal, allowing a microcontroller to determine whether the object is tilted or not.
It uses an SW-460D or SW-520D ball-type rolling tilt sensor. When the tilt angle exceeds a certain threshold, the internal ball moves, triggering the output signal. The module can also function as a basic vibration sensor.
Working Principle
-
Outputs LOW (0) when the tilt angle is below the threshold.
-
Outputs HIGH (1) when the tilt angle exceeds the threshold.
-
Typical tilt detection range: 45° to 130° (varies depending on angular velocity).
Key Features
-
Operating voltage: 3.3V – 12V
-
Digital switching output (0 or 1)
-
Built-in LM393 comparator for stable performance
-
Maximum output current: 15mA
-
Onboard Power LED and Status LED
-
M3 mounting hole for easy installation
-
Compact PCB size: 3.2 cm × 1.7 cm
-
Operating temperature: 0°C to +80°C
-
Suitable for low-voltage applications
-
Long operational life
-
Easy interface with microcontrollers
Applications
Microcontroller Compatibility
The module can be directly connected to digital input pins of microcontrollers such as:
Package Includes
