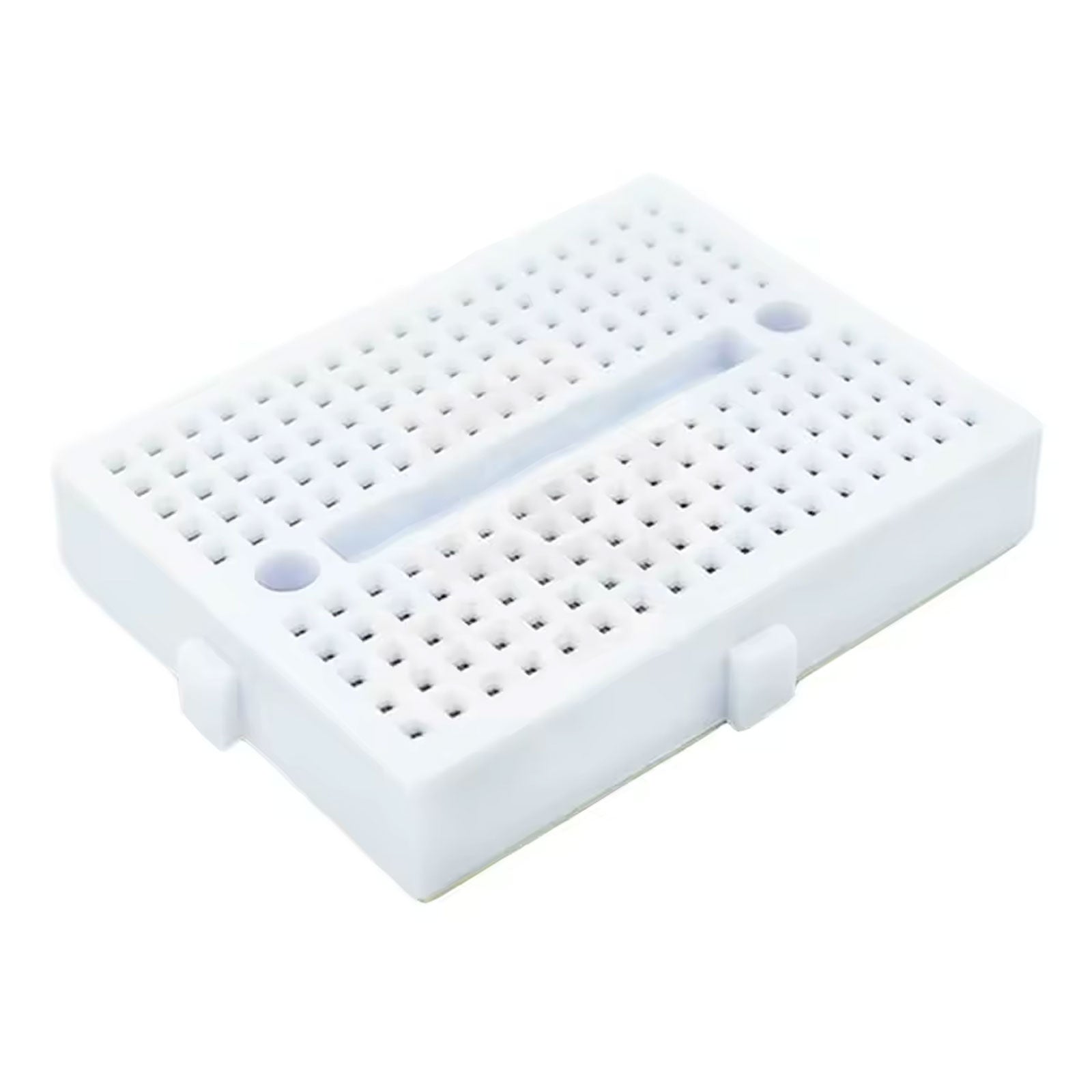

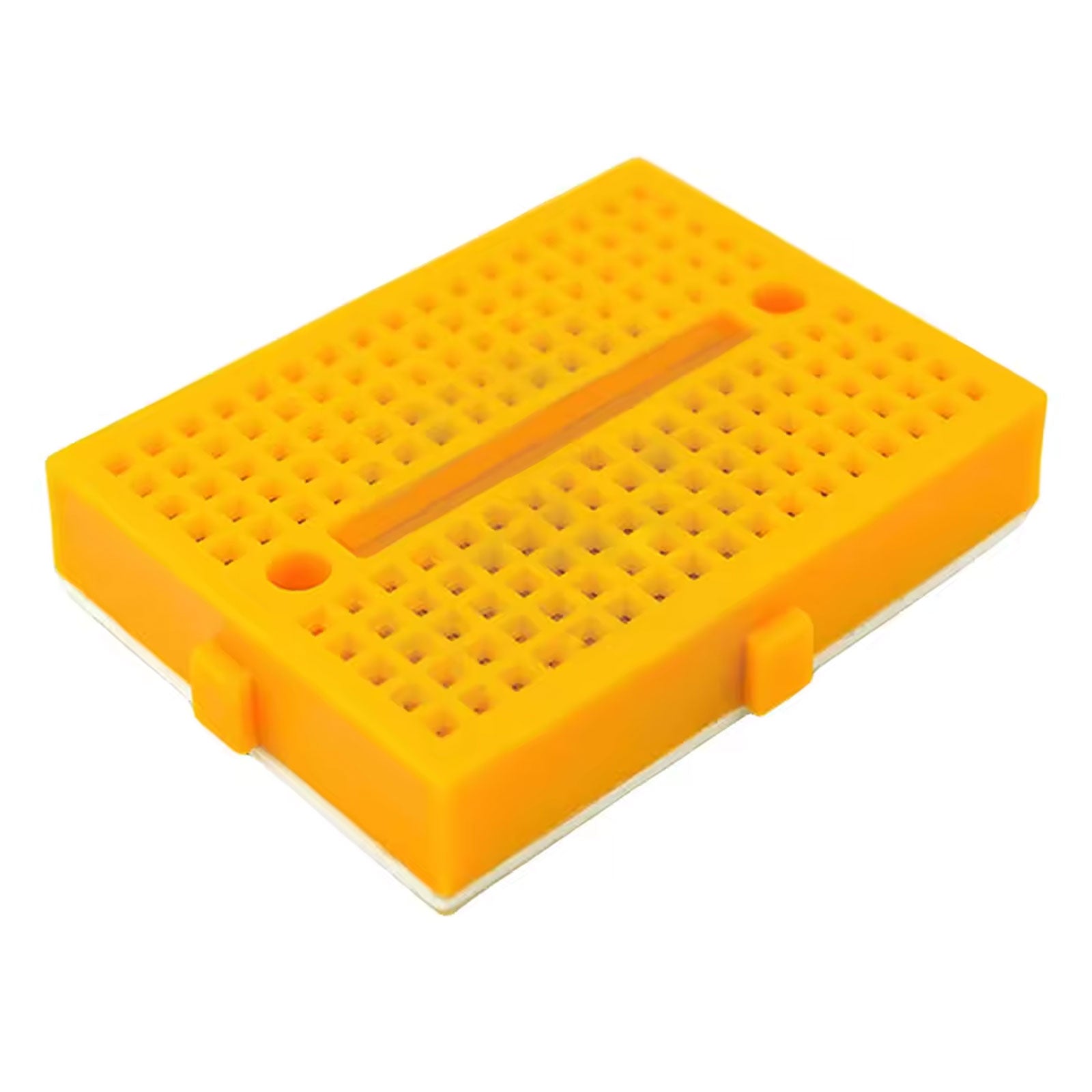

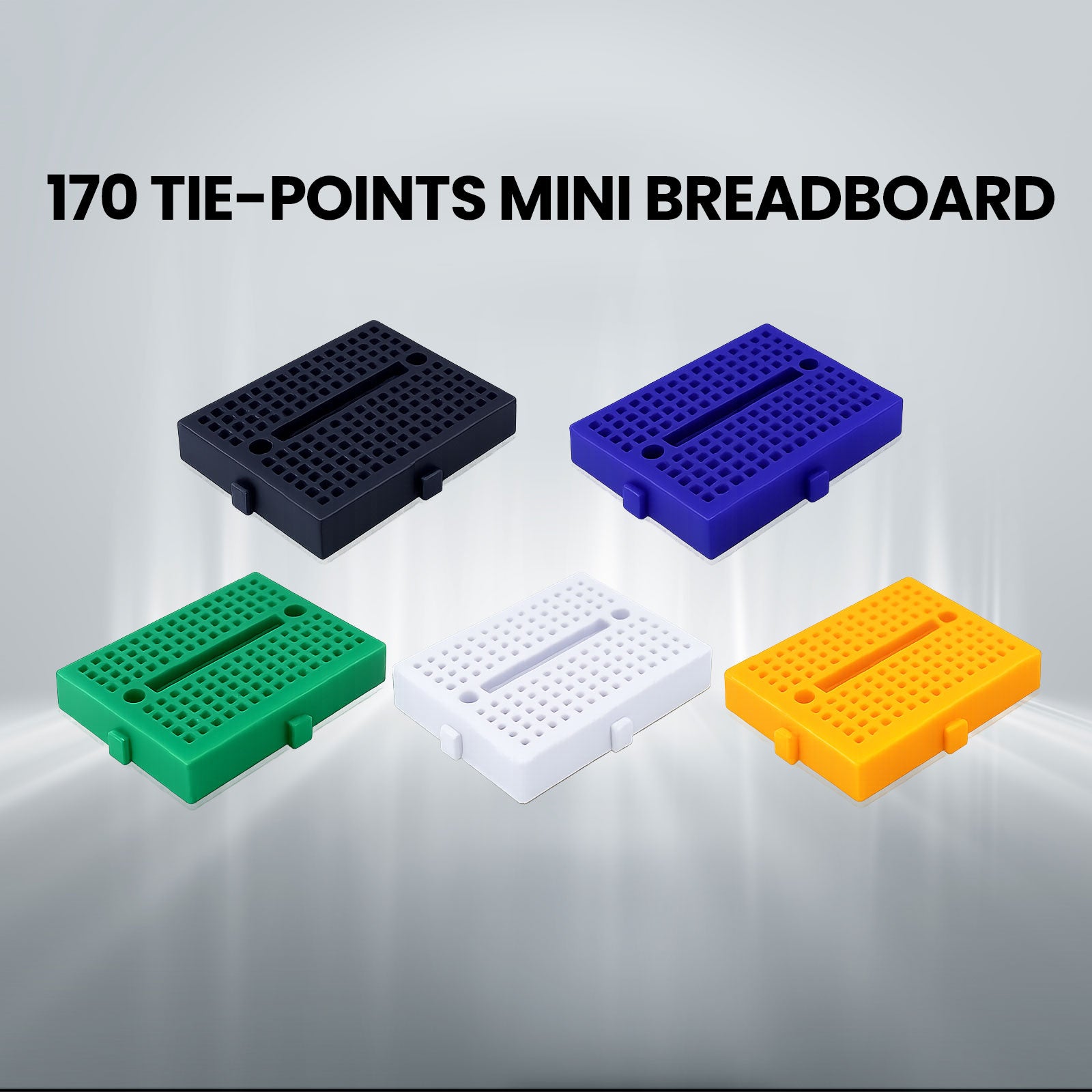

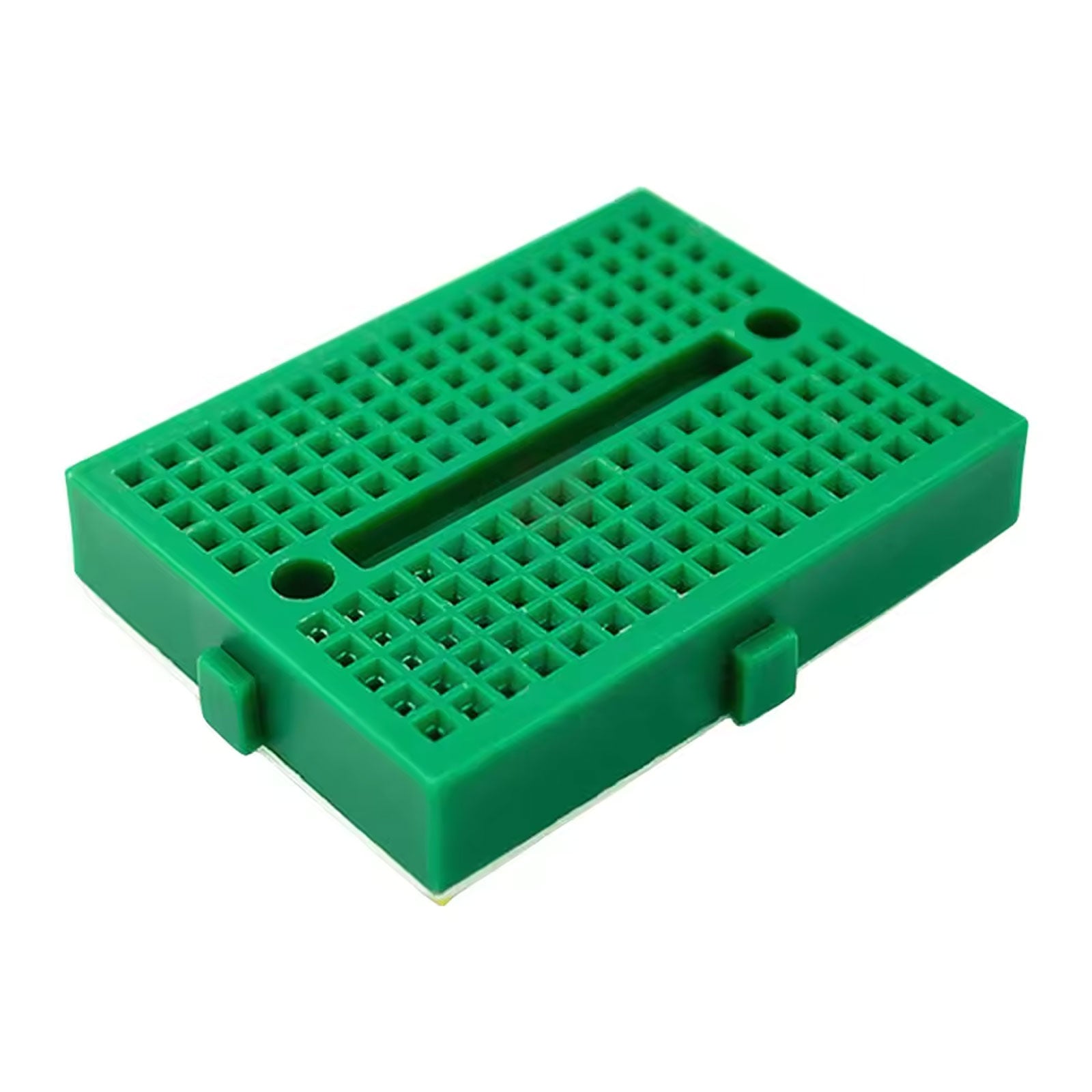

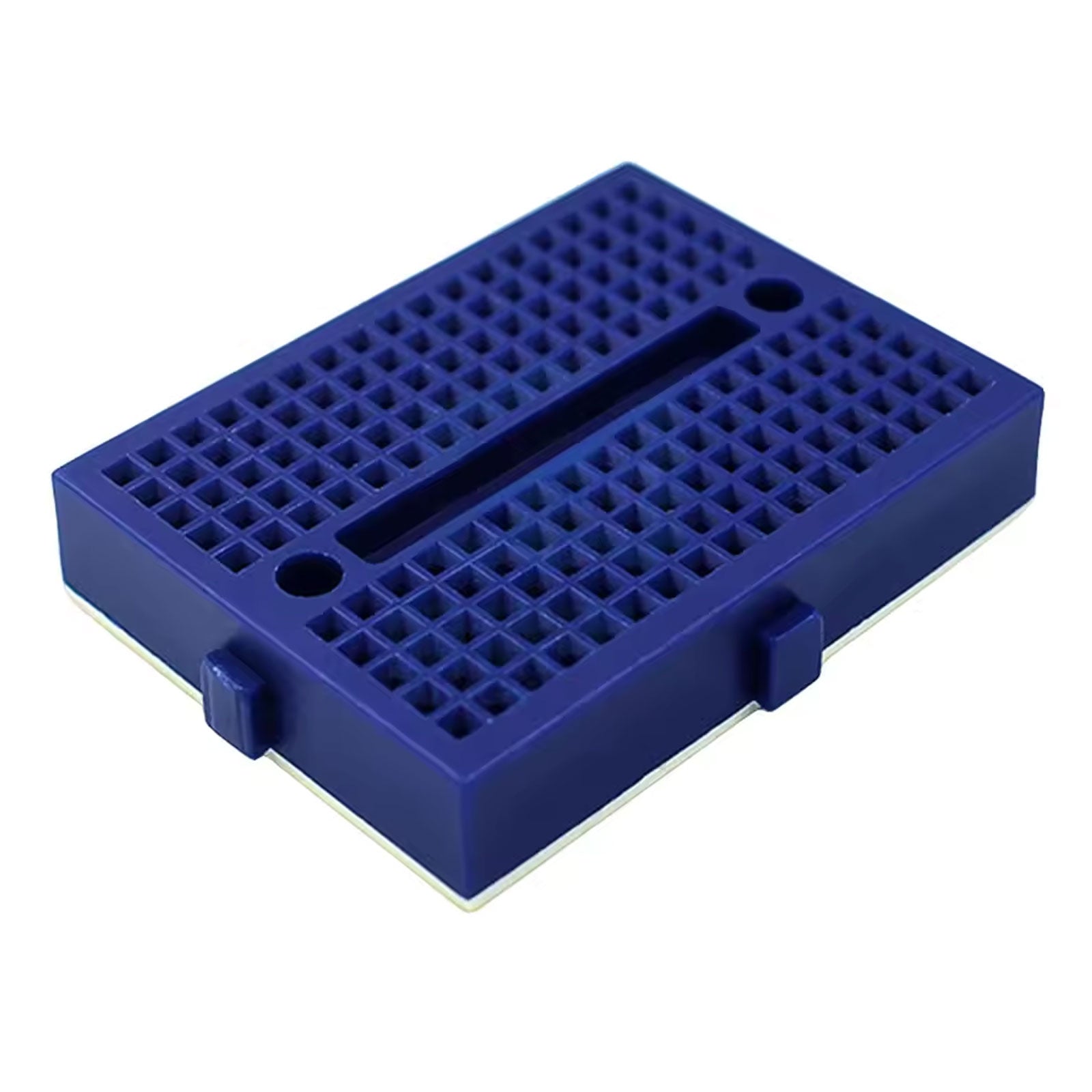

The 170 Tie-Points Mini Breadboard (SYB-170) is a compact and reliable solution for building and testing electronic circuits without soldering. Whether you're learning electronics for the first time or developing small prototypes, this mini breadboard makes experimentation simple, organized, and reusable.
Designed with standard 0.1" (2.54 mm) spacing, it is fully compatible with common components such as resistors, LEDs, transistors, sensors, jumper wires, and microcontrollers like Arduino and ESP boards.
Its compact size makes it perfect for small projects, STEM kits, classroom use, and portable electronics builds.
Key Features
-
Solderless Prototyping: Easily insert and remove components like resistors, LEDs, ICs, and jumper wires — no soldering required.
-
Compact & Portable: Small form factor makes it ideal for desk setups, portable projects, and on-the-go experimentation.
-
Reusable Design: Built to withstand repeated use — perfect for trial, error, and iterative circuit design.
-
Versatile Compatibility: Works with standard 0.1″ (2.54 mm) spaced components and wire gauges common in hobby electronics.
-
Ideal for Learning & Training: Great for electronics education, debugging, and hands-on training.
-
Simple Mounting: Lightweight with a size that’s easy to integrate into project enclosures or breadboard prototypes.
Specifications
-
Model Number: SYB-170 Breadboard
-
Total Connections: 170 tie-points
-
Connection Layout: 2 columns, 17 channels per column, with two 5-point rows per column
-
Socket Spacing: 0.1 inches (2.54 mm standard pitch)
-
Circuit Board Material: White ABS plastic
-
Internal Contact Material: Phosphor bronze with surface treatment
-
Contact Type: Mixed metal strip
-
Board Base: Self-adhesive backing tape
-
Extension Clip: Yes — can be connected with additional breadboards
-
Dimensions: 35 × 45 × 8.5 mm
-
Weight: 100 g
Ideal For
- Students learning electronics fundamentals
- STEM and robotics kits
- Arduino and ESP projects
- Quick circuit testing and prototyping
- Makers and hobbyists building compact devices
At Alpha 3D Lab, we recommend this mini breadboard for anyone starting in electronics or building small modular circuits. It’s simple, reusable, and essential for hands-on learning.
