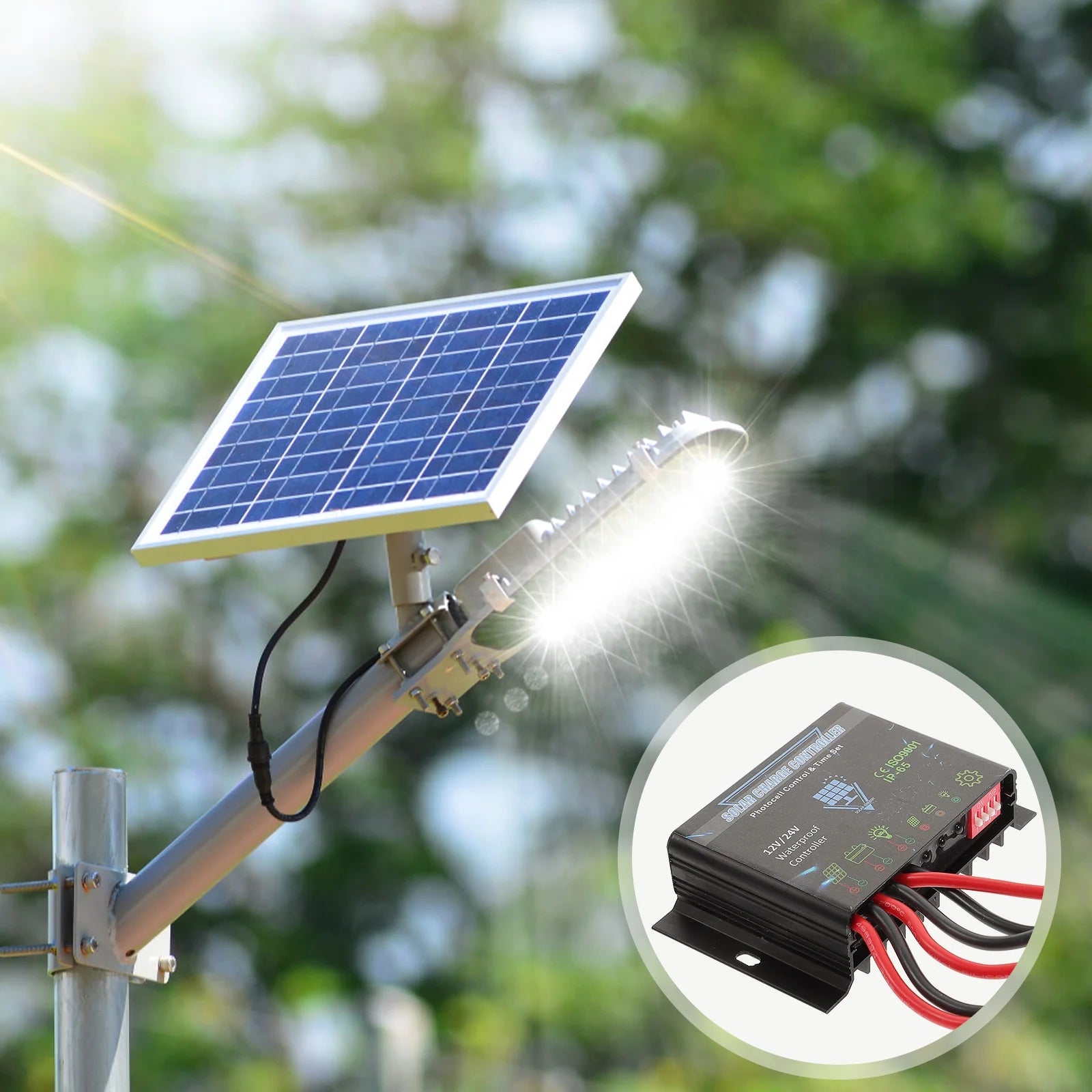

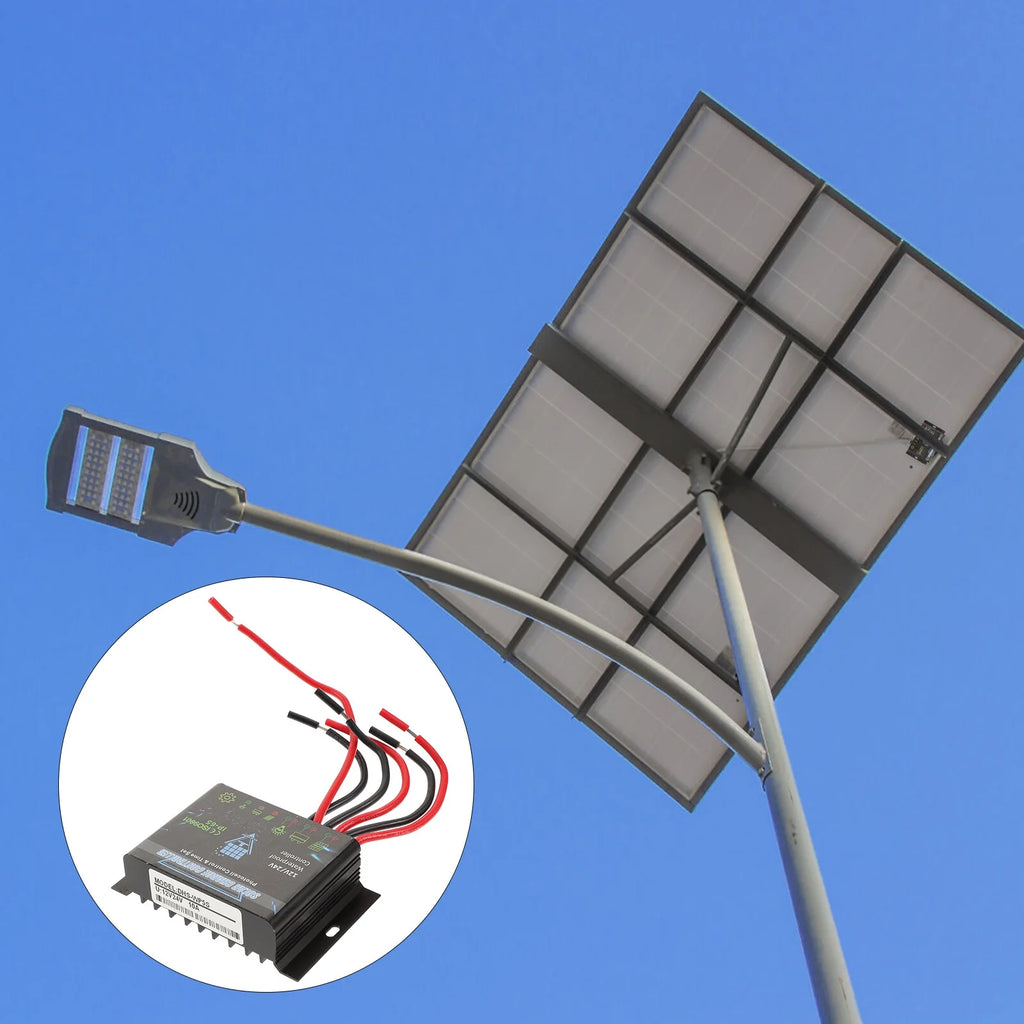

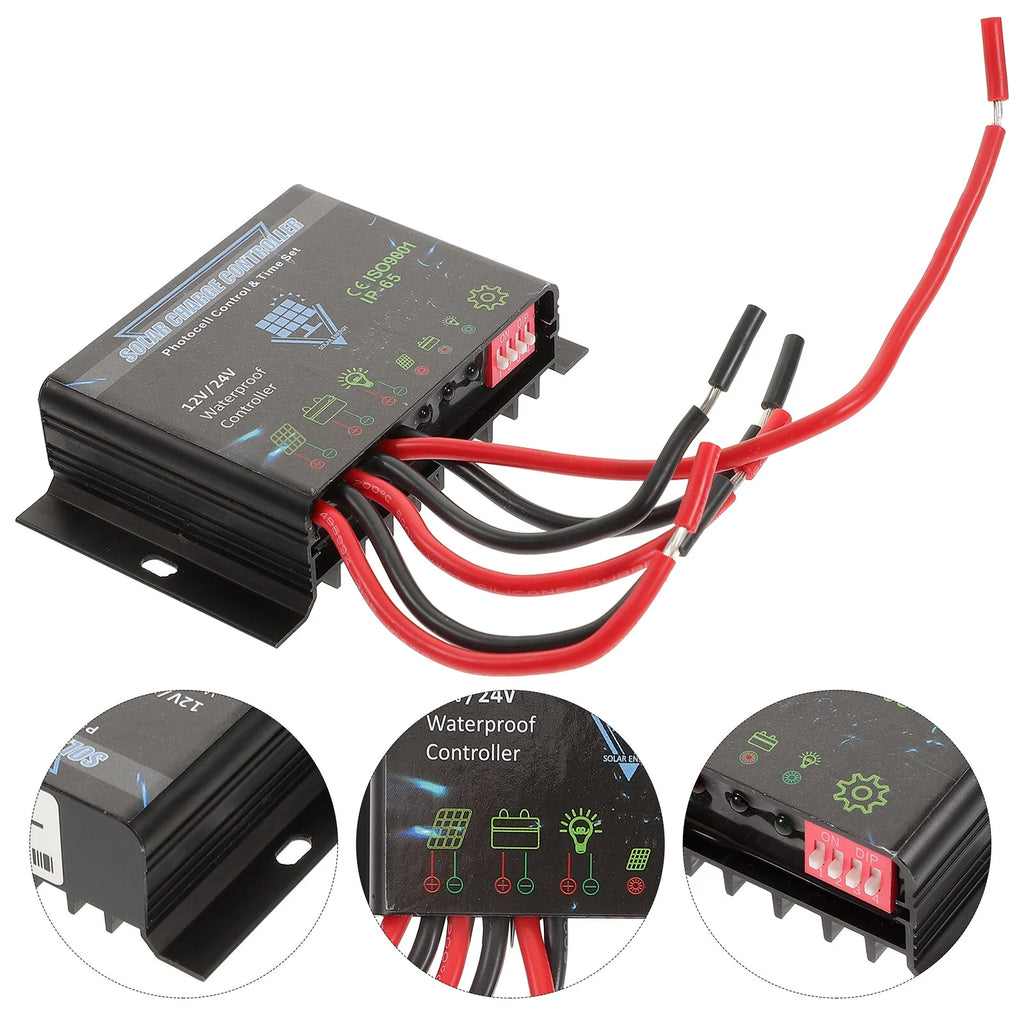

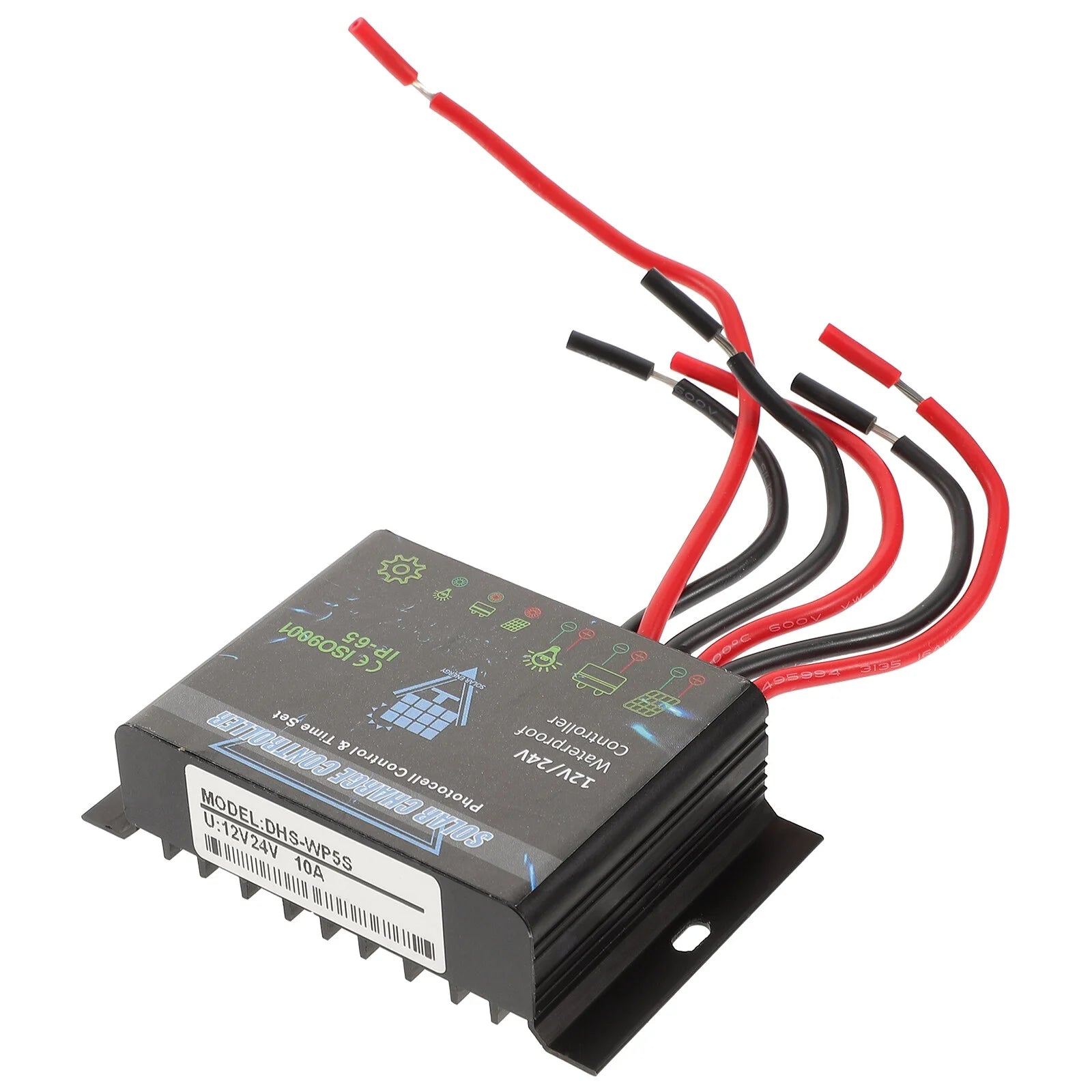

Waterproof Solar Charge Controller 10A – 12V/24V Auto – Lithium Battery Compatible (Li-ion)
The 10A Waterproof Solar Charge Controller is a compact and reliable solution designed for managing solar power in outdoor environments. Supporting 12V and 24V systems, it automatically detects system voltage and delivers optimized charging for lithium batteries (Li-ion / LiPo).
Built with a fully sealed waterproof housing, this controller is ideal for harsh outdoor conditions such as rain, humidity, and dust—perfect for RVs, marine systems, and remote solar installations.
Key Features:
-
10A charging capacity – ideal for small solar systems
-
Auto 12V / 24V detection – easy plug-and-play setup
- Lithium battery compatible (Li-ion / LiPo)
-
Waterproof design (IP67/IP68) – suitable for outdoor use
-
PWM intelligent charging – stable and efficient battery management
-
LED indicators – real-time charging and battery status
-
Compact and rugged design – built for long-term outdoor use
Applications:
- RVs, campers, and boats
- Portable solar power systems
- Outdoor lighting and security systems
- IoT and remote monitoring setups
- Small off-grid lithium battery systems
Specifications:
- Rated Current: 10A
- System Voltage: 12V / 24V (auto recognition)
- Charging Mode: PWM (Pulse Width Modulation)
- Battery Types: Lithium (Li-ion / LiPo)
- Waterproof Rating: IP67 / IP68 (model dependent)
- Max Solar Input Power:
- 12V system: up to ~150W
- 24V system: up to ~300W
- Indicators: LED status lights
- Operating Temperature: approx. -35°C to +55°C
Protection Features:
- Overcharge protection
- Over-discharge protection
- Short circuit protection
- Reverse polarity protection
- Overload protection
Package Includes:
- 1 × Waterproof Solar Charge Controller (10A, 12/24V, Lithium Compatible)
